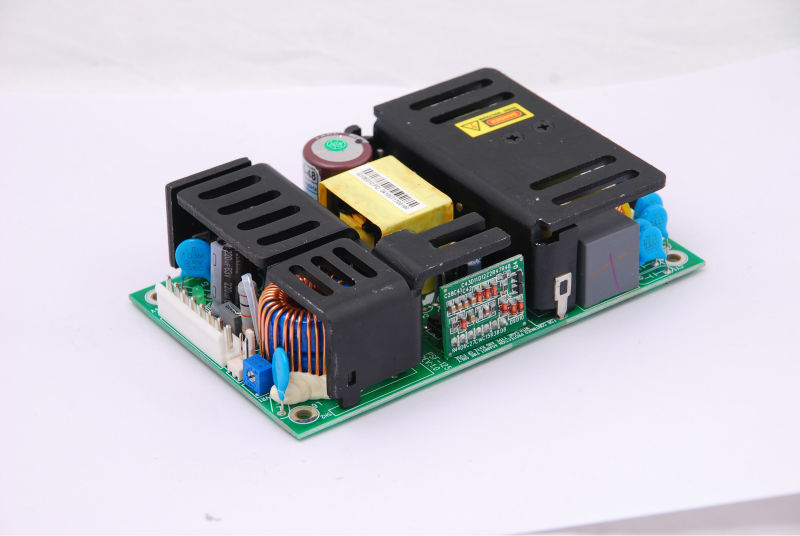

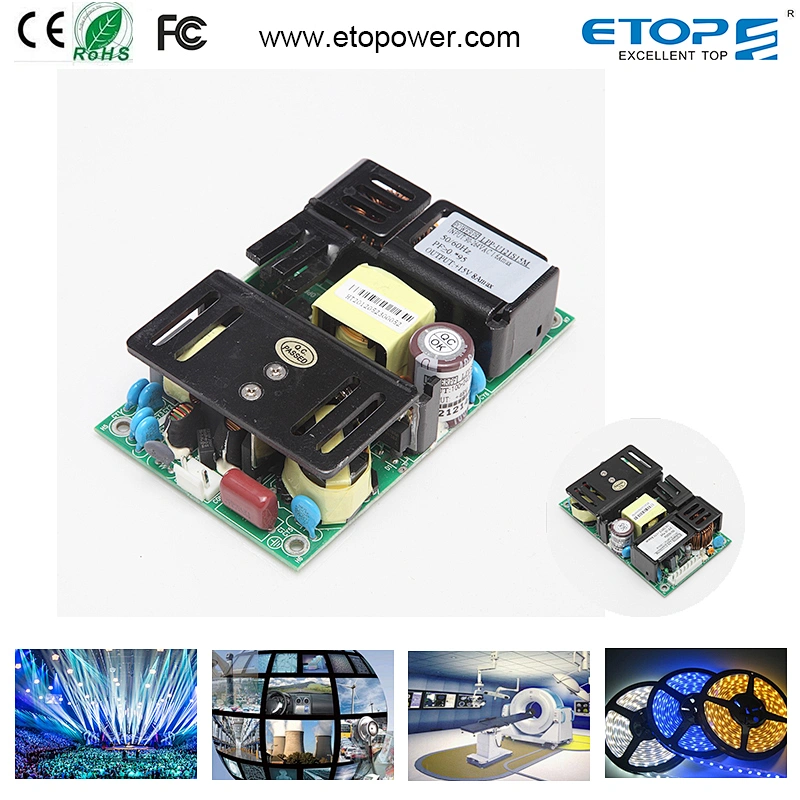

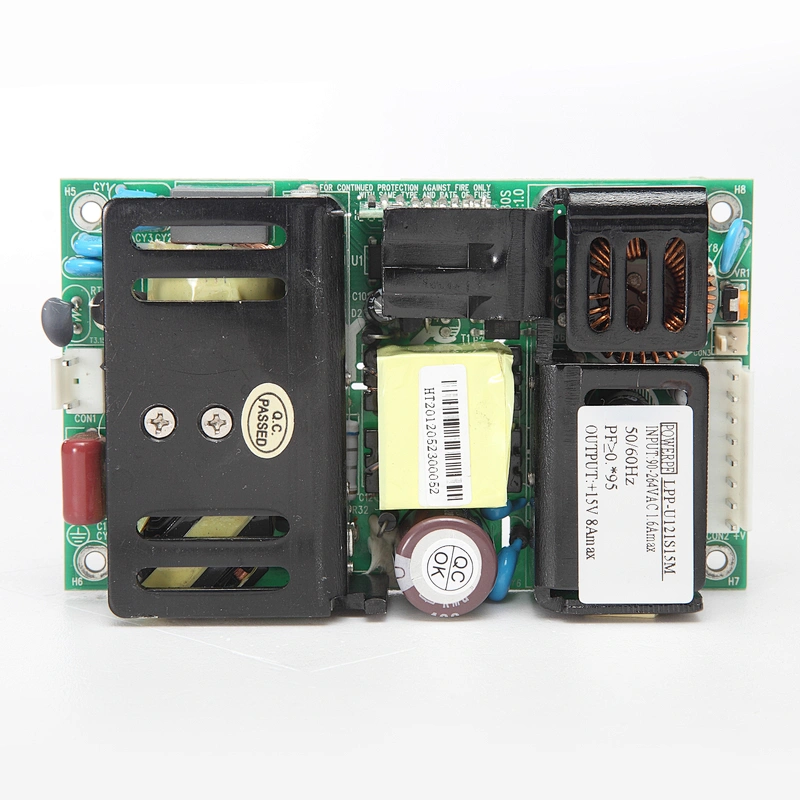

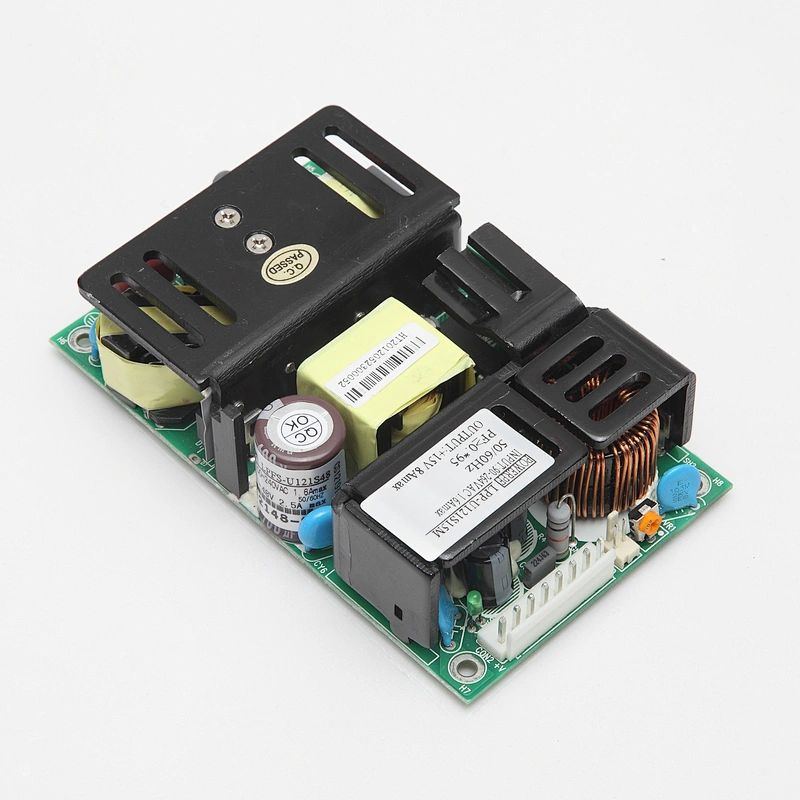

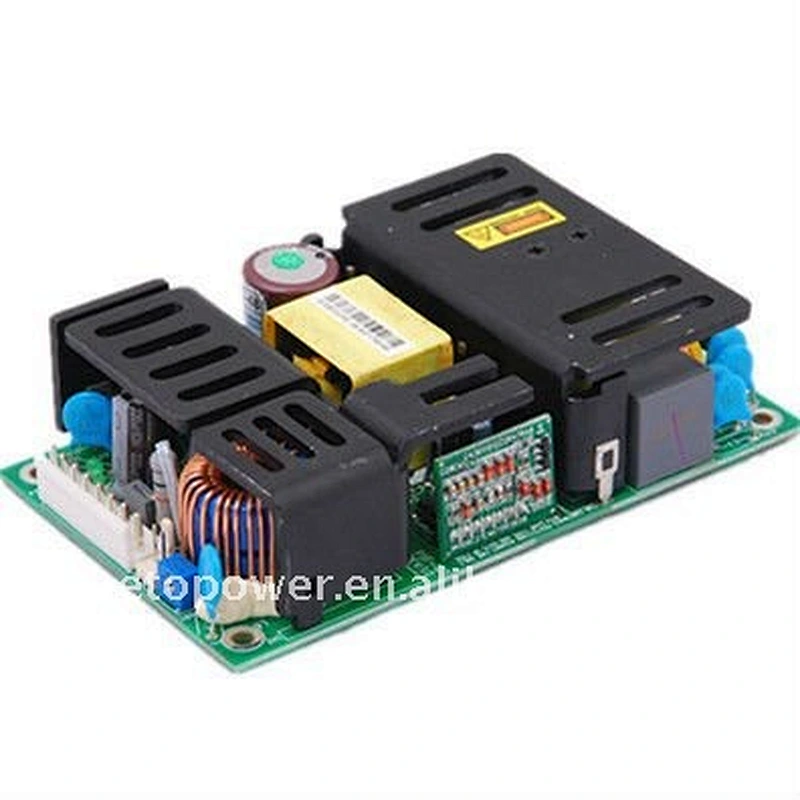

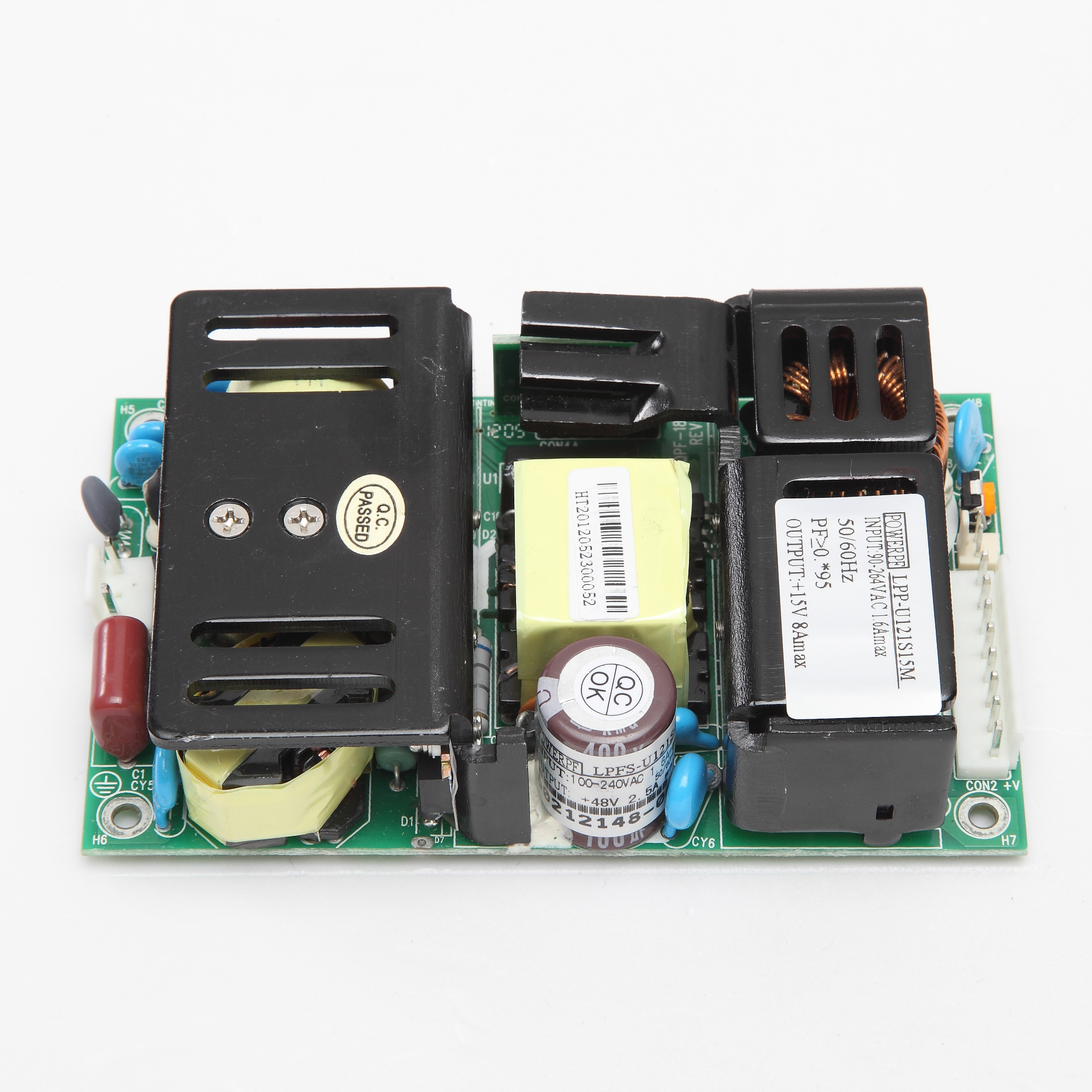

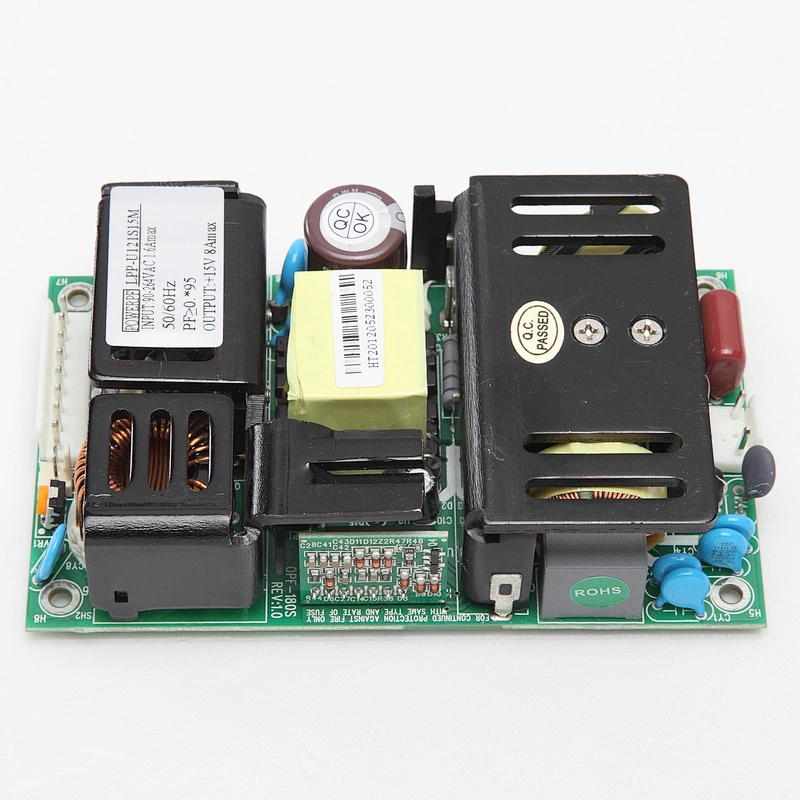

open frame Switching power supply module Build-in active PFC 150W 18V 24V 36V 48V SMPS PSU PCB Switching power supply Bare Board
Product Description
1.MOQ: 500pcs 2.Capacity: 100,000pcs/month 3.Lead time: 15 working days 4.Payment: TT, L/C. 5.Sample order is available 6.Packaging: Export standard carton box 7.OEM,ODM
Our product series include
industrial power supply, power adaptor, LED driver etc., which are widely used in communication, power electronics, automation control, railway, military industry,medical care and a good deal of others.
Specification
Model
LPP-U151S15A
Input
Input Voltage(V)
90VAC~264VAC
Input Current (A)
2A Max
Frequency (Hz)
47Hz–63Hz
Efficiency
85% Typ(230VACFull Load)
Inrush current(A)
Cold star <80A/230VAC
Leakage current(mA)
<2mA/240VAC
Output
Output Voltage(V)
+15Vdc
Voltage Regulation
2%
Output Current(A)
9.5A
Current Range (A)
0-9.5A
Rated Power(W)
142.5W
Start time, hold-up time(ms)
Ton≤3000ms,Td≥20ms @230Vac Full Load
Rise time(ms)
Typ:80ms @230Vac Full Load
Ripple/Noise(mVp-p)
200mVp-p
Environment
working Temperature (°C)
-20°C - +60°C(refer derating curve)
Storage Temperature(°C)
‘-20°C - +80°C
Humidity(%)
20% - 90% RH non condensing
Safety/ EMC
Withstand voltage(VAC)
I/P-O/P:3KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min
Safety Standard
EN/UL60950-1,GB4943
EMC Standard
EN55022 Class B,EN61000-4-2,3,4,5,6,8,11 GB17626.5 Level3
