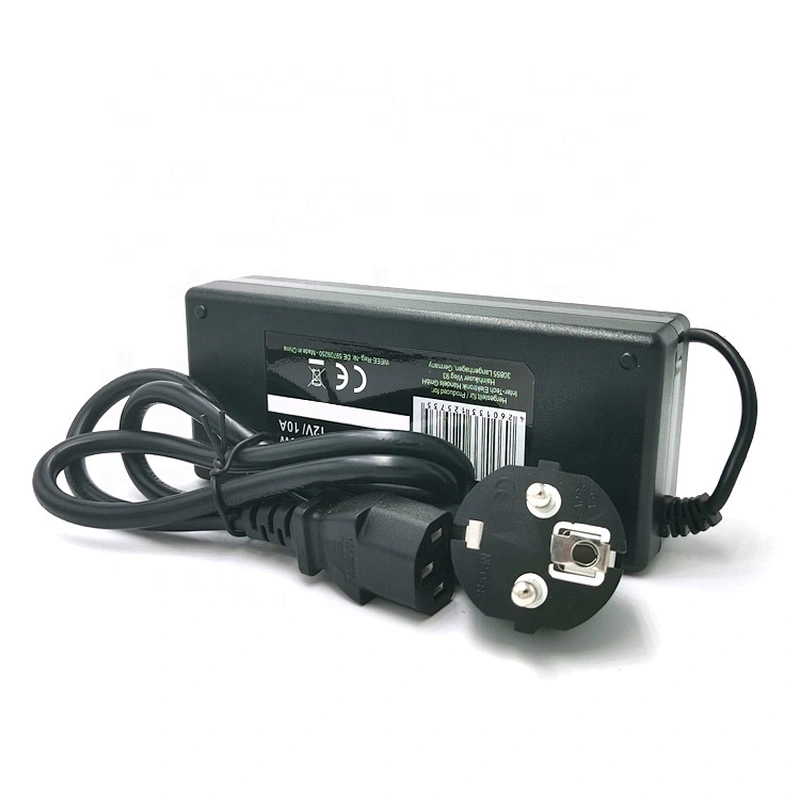

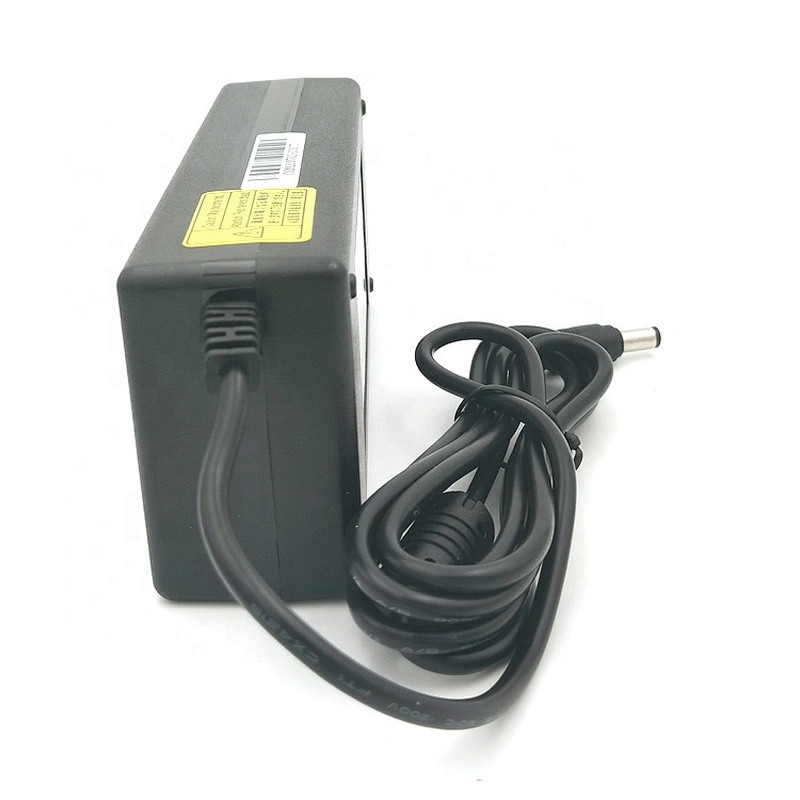

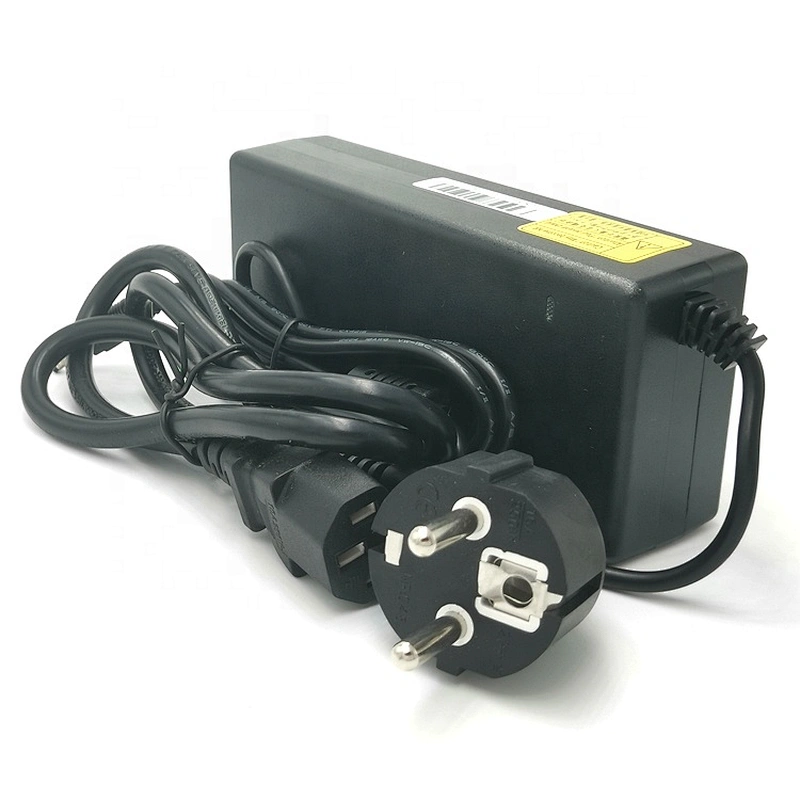

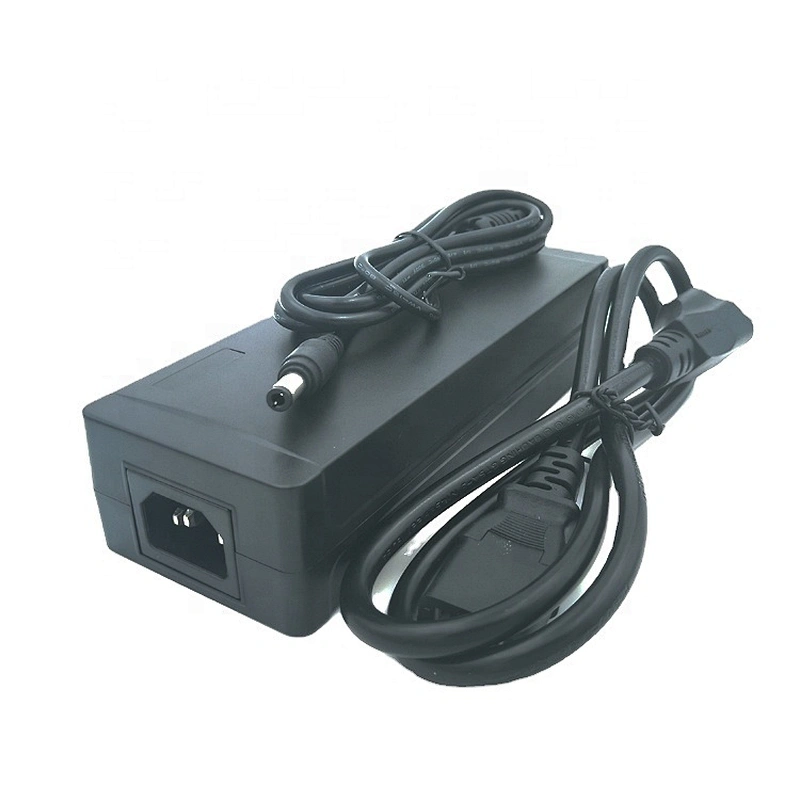

- Place of Origin:Guangdong, China
- Brand Name:ETOP
- Model Number:ADS-U090S24L
- Output Type:DC
- Connection:Desktop
- Dimession:140*60.5*35mm
- Input:100-240vac 47-63hz
- Output:24v 3.75a
- Power rating:90w
- DC connector/cable:could be customized
- Protection:OVP,OCP,Short circuit

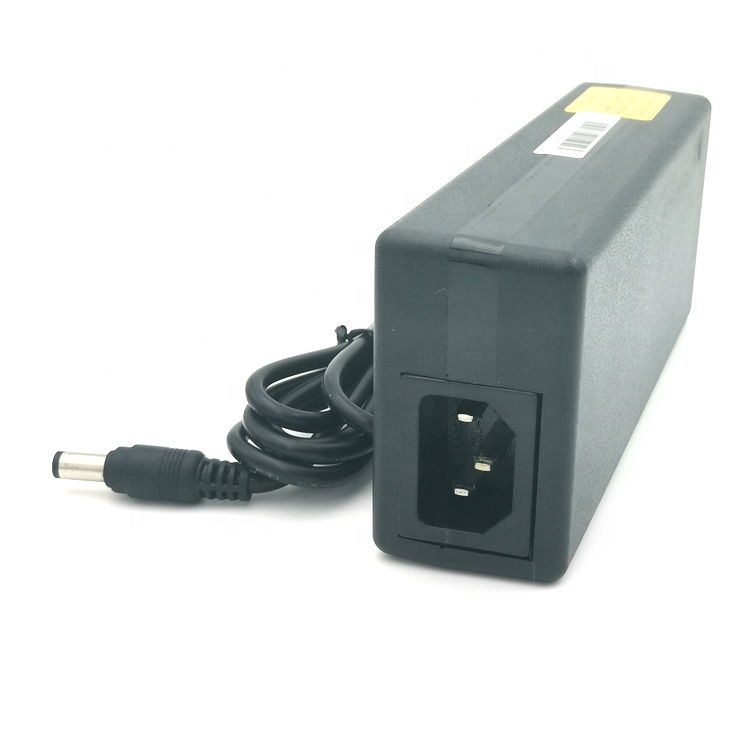

- Pole:3 pole IEC320-C14
- Working temp:-20c- +50c
- Certificate:CE,ROHS,UL1310,FCC,CCC
- Warranty:2 years
Feature
· Widely used in different field.
· Provide customizing service
· Protections:Short circuit/Over load/Over voltage/ Over temp
· 3 years warranty
· 100% full load burn-in test
· Use Imported machine to test,such as Chroma machine
· Lead time: 15 working days after receiving deposit
· Payment: TT,L/C,Paypal etc,
· Sample is available
· L/T of sample :7 days
Parameter table :
| Model No. | ADS-U090SxxL | |
| Input | Input Voltage(V) | 100-240VAC |
| Input Current (A) | 2.5A Max | |
| Frequency (Hz) | 47Hz–63Hz | |
| Efficiency | 89% Typ(230VACFull Load) | |
| Inrush current(A) | Cold star <80A/230VAC | |
| Leakage current(mA) | <0.75mA/240VAC | |
| Output | Output Voltage(V) | 24Vdc |
| Voltage Regulation | 3% | |
| Output Current(A) | 3.75A | |
| Current Range (A) | 0-3.75A | |
| Rated Power(W) | 90W | |
| Start time, hold-up time(ms) | Ton≤3000ms,Td≥20ms @230Vac Full Load | |
| Rise time(ms) | Typ:80ms @230Vac Full Load | |
| Ripple/Noise(mVp-p) | 240mVp-p | |
| Environment | working Temperature (°C) | 0°C - +40°C |
| Storage Temperature(°C) | -20°C - +80°C | |
| Humidity(%) | 20% - 90% RH non condensing | |
| Safety/ EMC | Withstand voltage(VAC) | I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min |
| Protection | Over voltage Protection | >115%-135% Rated output voltage |
| Over load Protection | >105%-150% Auto recovery | |
| Short circuit Protection | Latched | |
| Over Temperature Protection | Auto reboot | |
| Others | Dimension H *W*H(mm) | 140*60.5*35mm |
ETOP: It has got ISO9001 certification in 2002. And in 2004, we finished renewing the ISO9001:2000 quality management system certification. Moreover, ETOP passed the ISO14001 environmental management system certification and GB/T28001 occupational health and safety management system certification in 2005.
Our Certificates:

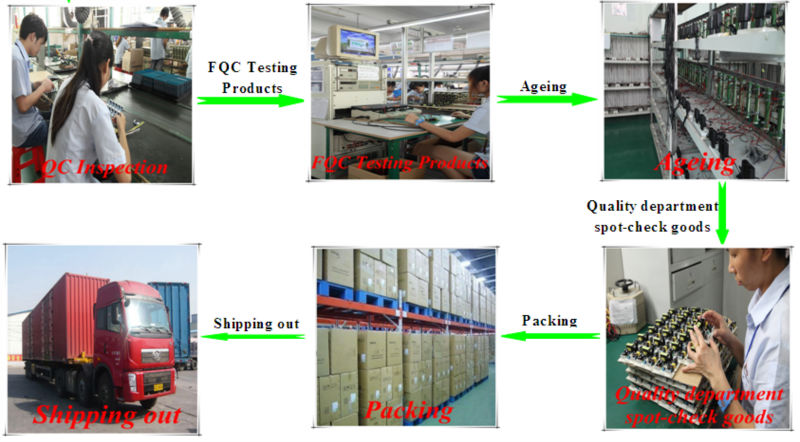

Our products are 100% through high temperature ageing, which accords with CCC, CE, FCC,Rohs and many
other authoritative organization security authentication standard.

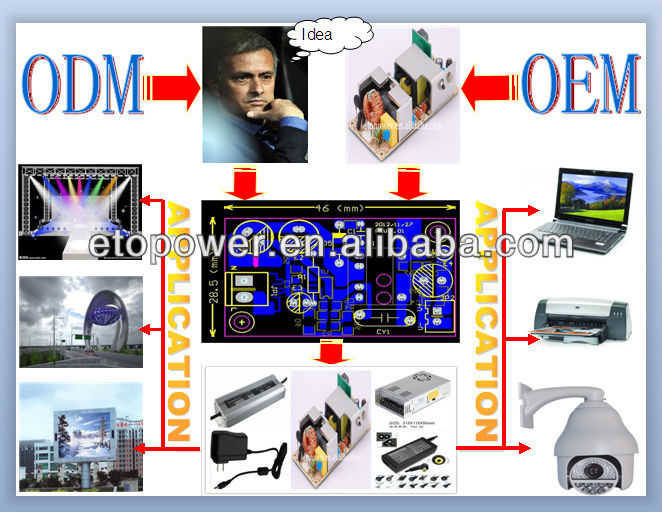

(1) Provide customizing service:We are good at designing and developing various products.We can
customize all kinds of power supples you expect as long as you can provide us your detailed comments .

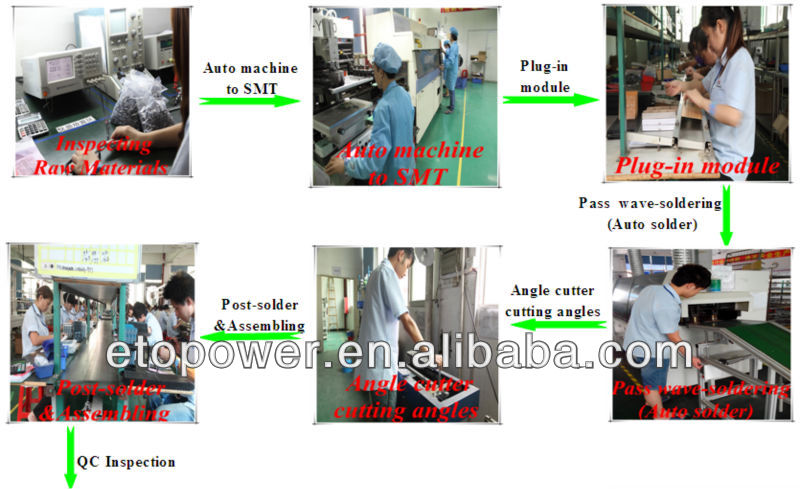

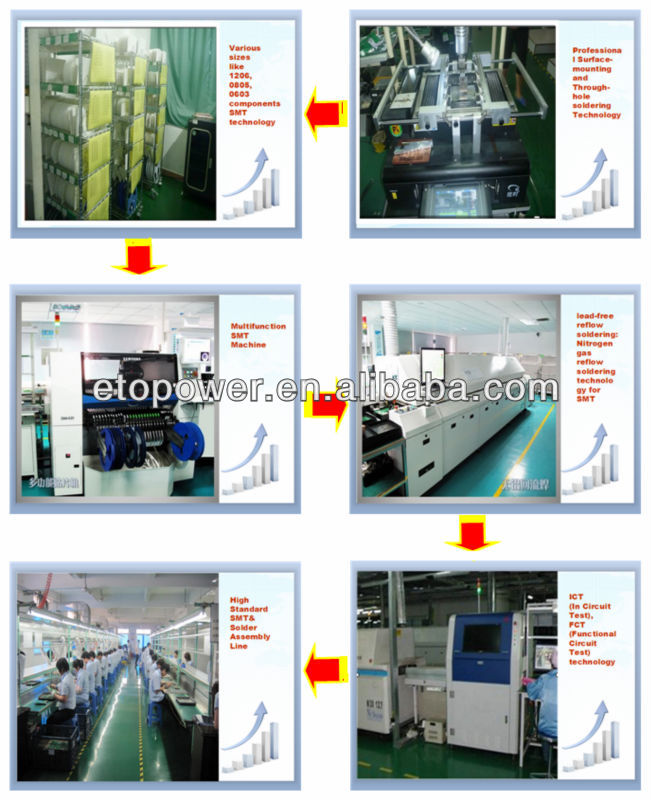

(2) SMT---High Efficiency & HighQuality: largely adopt SMT components because of its tight mechanism,
small volume and exquisite appearance.
