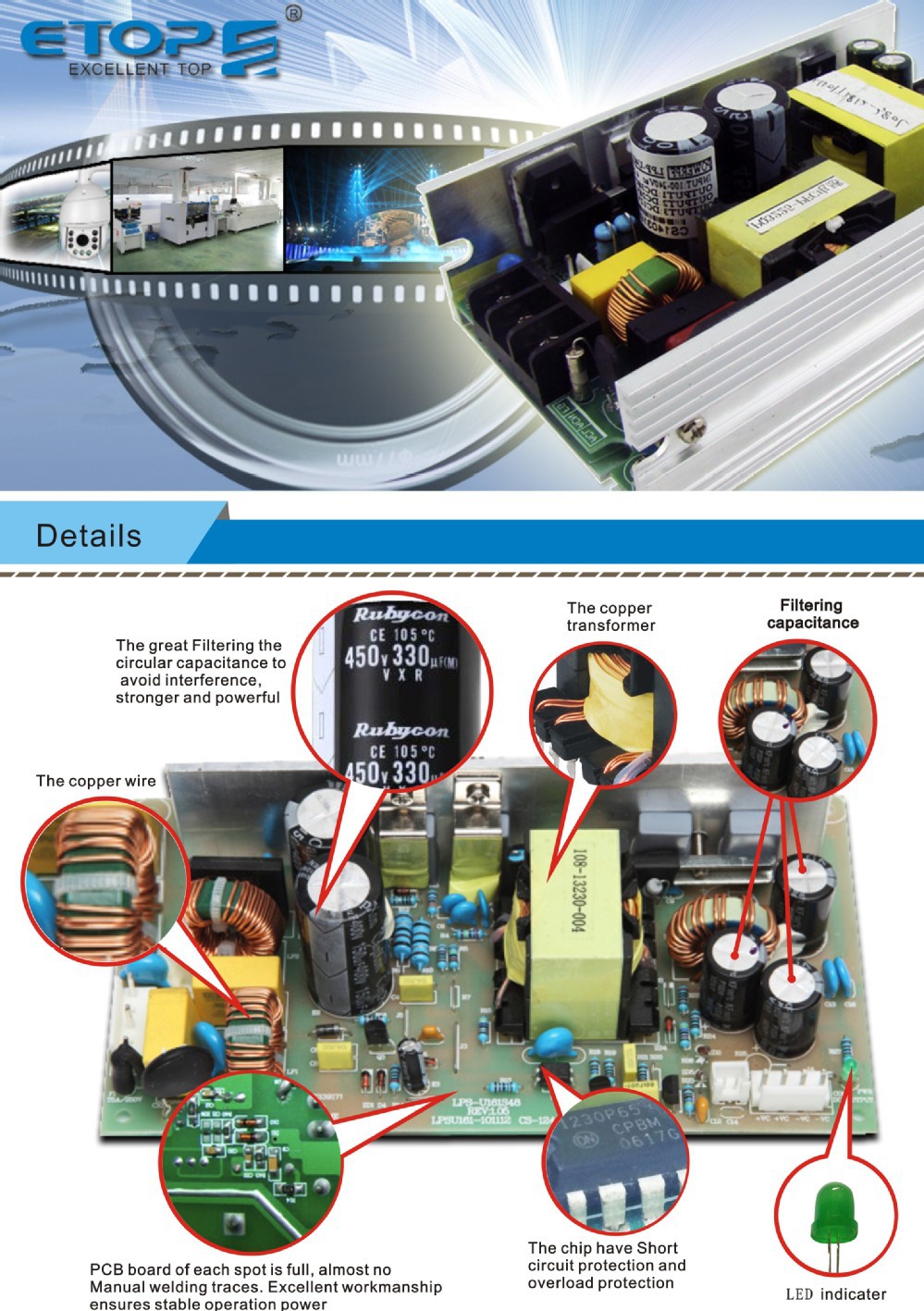

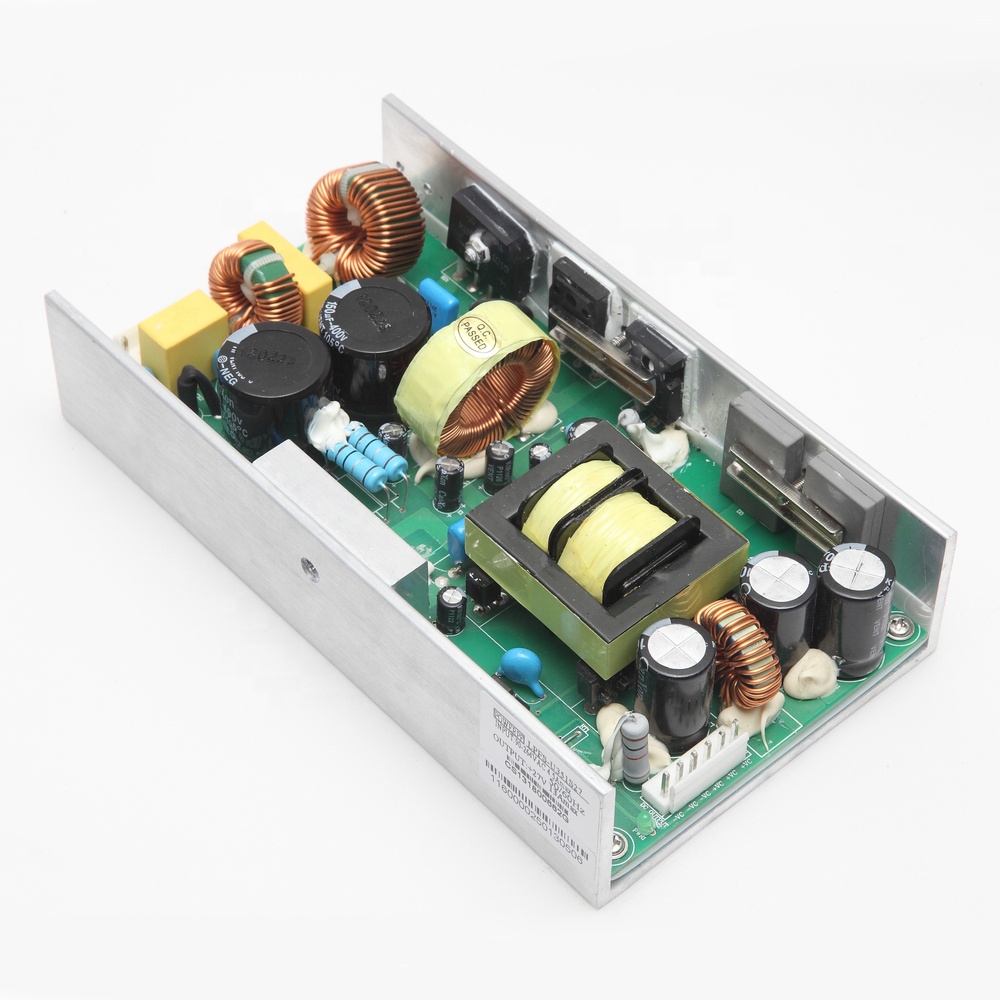

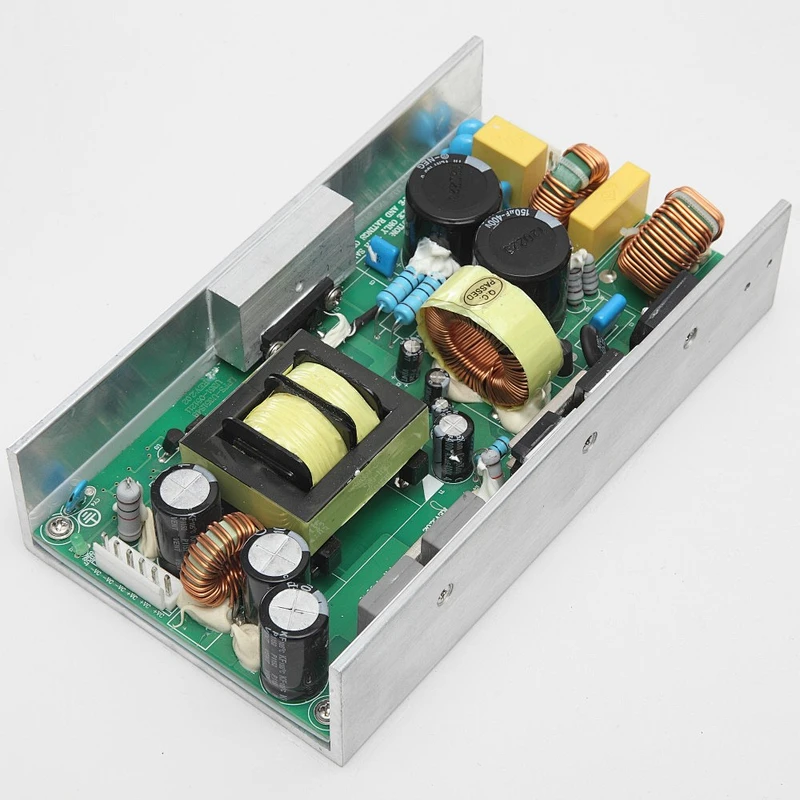

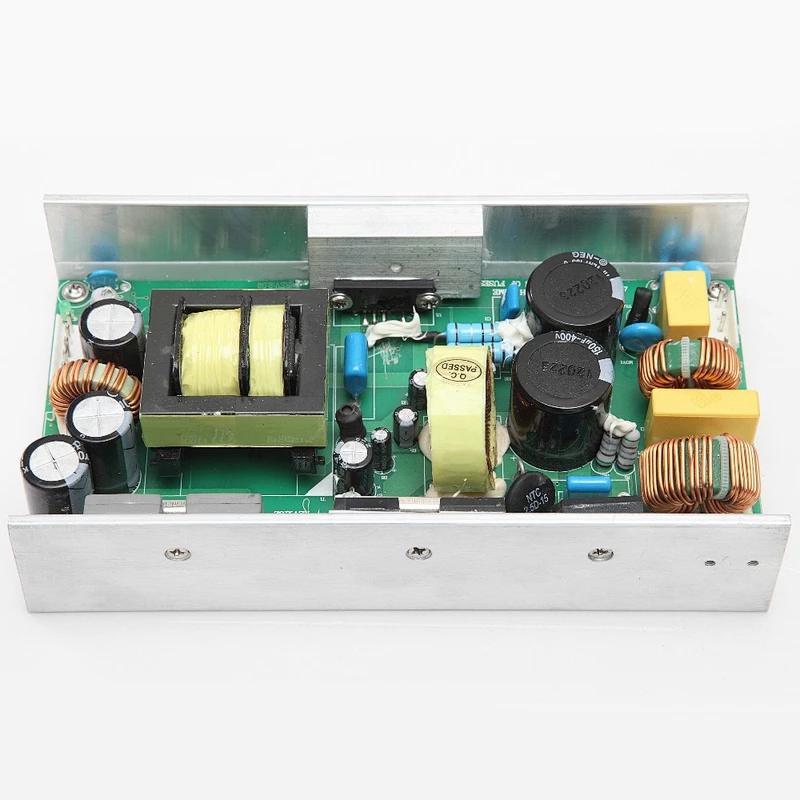

High Efficiency 350W Open Frame Power Inverter 24V 27V 48V 52V Universal Power Supply Unit Circuit Board Power Inverter
Product Description
| MODEL | LPP-U351S24A | LPP-U351S27A | LPP-U351S48A | LPP-U351S52A | |
| OUTPUT | DC VOLTAGE | 24V | 27V | 48V | 52V |
| RATED CURRENT | 13A | 13A | 7.3A | 6.7A | |
| CURRENT RANGE | 0~13A | 0-13A | 0~7.3A | 0-6.7A | |
| RATED POWER | 350W | ||||
| RIPPLE & NOISE (max.) | 150mVp-p | ||||
| VOLTAGE TOLERANCE | ±1.0% | ||||
| LINE REGULATION | ±0.5% | ||||
| LOAD REGULATION | ±0.5% | ||||
| SETUP, RISE TIME | 2000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load | ||||
| HOLD UP TIME (Typ.) | 20ms/230VAC 16ms/115VAC at full load | ||||
| INPUT | VOLTAGE RANGE | 100-240VAC | |||
| FREQUENCY RANGE | 47~63Hz | ||||
| EFFICIENCY(Typ.) | 90% | ||||
| AC CURRENT (Typ.) | 5A/115VAC 4A/230VAC | ||||
| INRUSH CURRENT (Typ.) | 40A/115VAC 60A/230VAC | ||||
| LEAKAGE CURRENT | < 0.75mvp/ 240VAC | ||||
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power | |||
Protection type : Constant current limiting, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| ENVIRONMENT | WORKING TEMP. | 0~+40℃ | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -20~+ 85℃ , 10~95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/℃(0~50℃) | ||||
| VIBRATION | 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes | ||||
| SAFETY & EMC | WITHSTAND VOLTAGE | I/p-0/P: 1.5KVAC I/p-FG: 1 .5KVAC 0/p-FG: 0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-0/P, I/P-FG, 0/P-FG: 100M Ohms/500VDC | ||||
| HARMONIC CURRENT | Compliance to EN61000-3-2,-3 | ||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, light industry level, criteria A | ||||
| OTHERS | MTBF | ≥ 234.3K hrs. MIL-HDBK-217F (25℃ ) | |||
| DIMENSION | 180*100*45mm (L*W*H) | ||||
