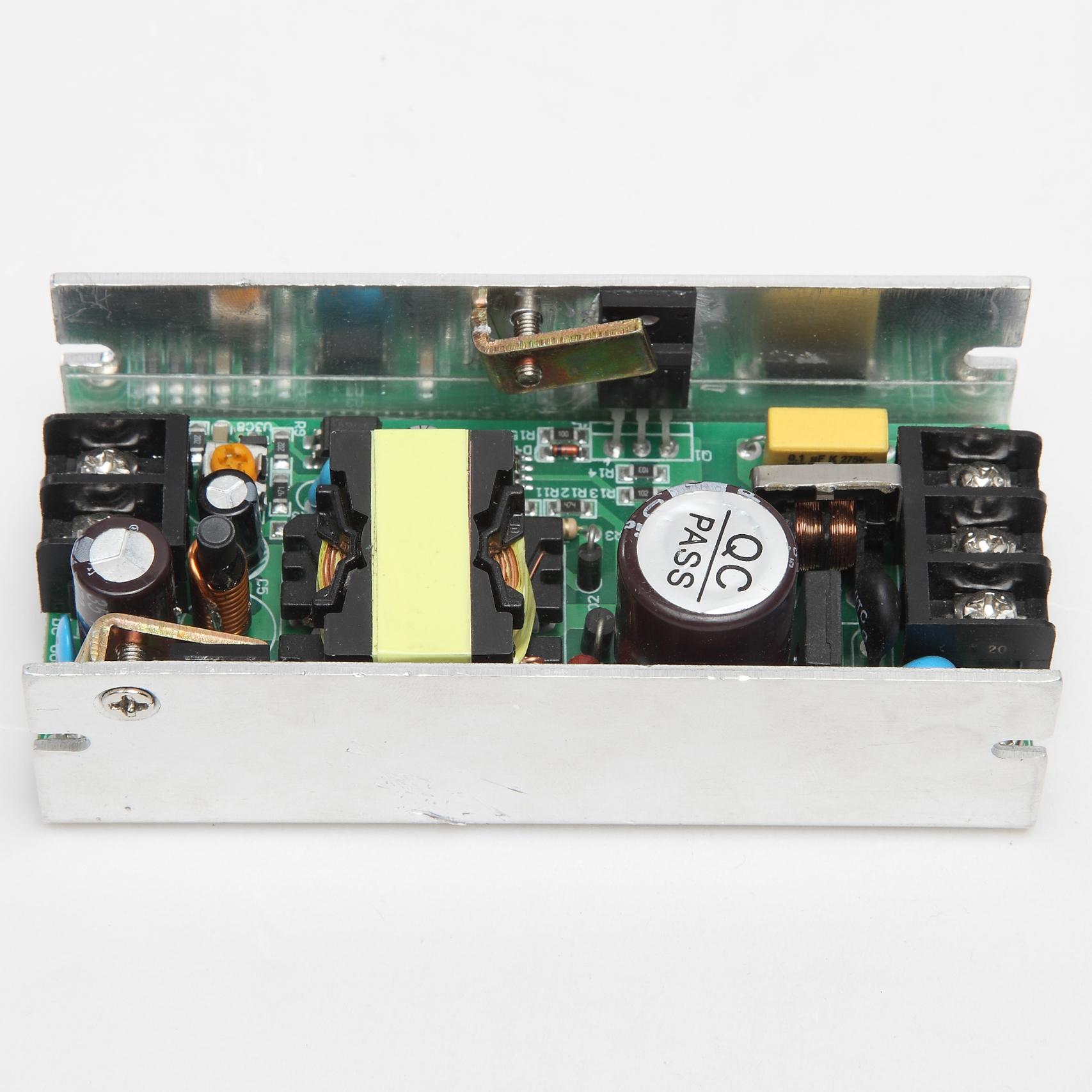

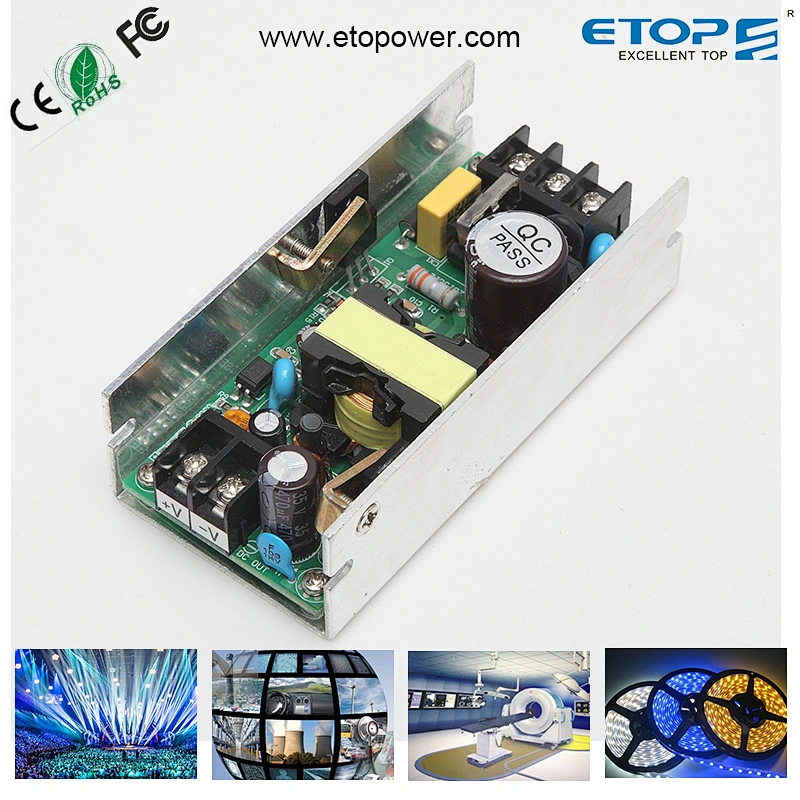

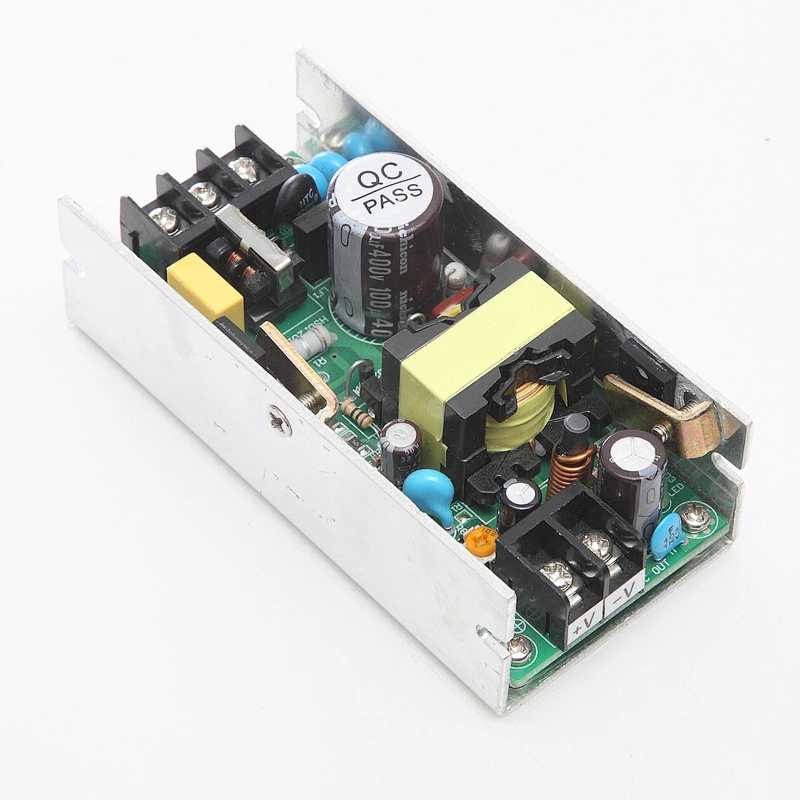

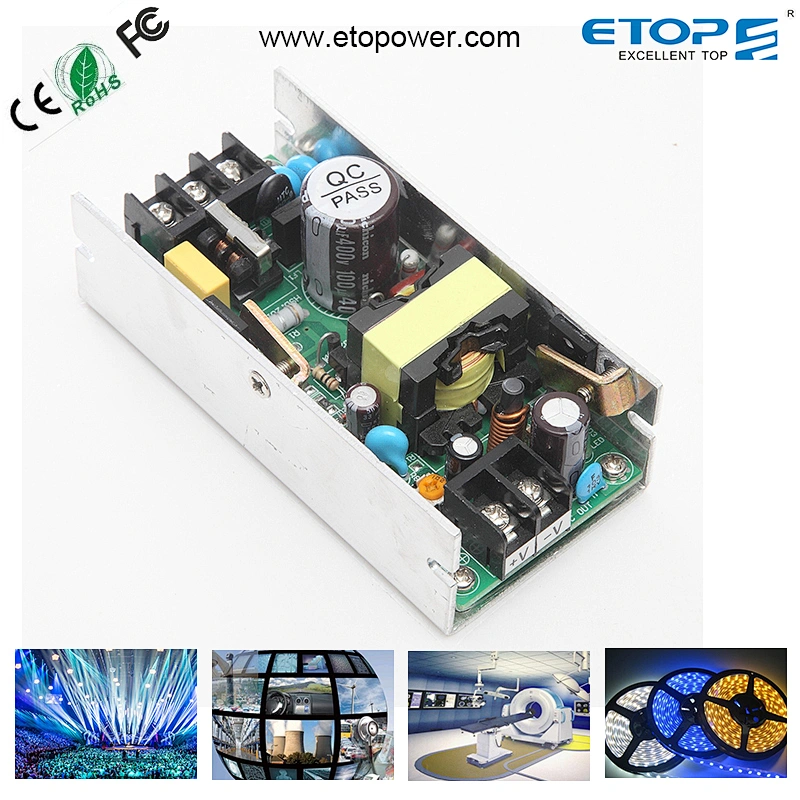

Factory Direct 60W Open Frame Power Supply AC DC Single Output 24V 2.5A Universal Led Driver Switching Power Supply
Product Description
Specifications: 1.MOQ: 500pcs 2.Capacity: 100,000pcs/month 3.Lead time: 15 working days 4.Payment: TT, L/C. 5.Sample order is available 6.Packaging: Export standard carton box 7.OEM,ODM
Model
LPS-U060S24L
Input
Input Voltage(V)
100-240V
Input Current (A)
1.6A Max
Frequency (Hz)
47Hz–63Hz
Efficiency
75% Typ(230VACFull Load)
Inrush current(A)
Cold star, <40A/230VAC
Leakage current(mA)
<3mA/240VAC
Output
Output Voltage(V)
24V
Voltage Regulation
3%
Output Current(A)
2.5A
Current Range (A)
0~2.5A
Rated Power(W)
60W
Start time, hold-up time(ms)
Ton≤1000ms,Td≥20ms @230Vac Full Load
Rise time(ms)
Typ:20ms @230Vac Full Load
Ripple/Noise(mVp-p)
120mVp-p
Environment
working Temperature (°C)
-20°C - +70°C(refer derating curve)
Storage Temperature(°C)
‘-20°C - +80°C
Humidity(%)
20% - 90% RH non condensing
Safety/ EMC
Withstand voltage(VAC)
I/P-O/P:3KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min
Safety Standard
EN/UL60950-1,GB4943
EMC Standard
EN55022 Class B,EN61000-4-2,3,4,5,6,8,11 GB17626.5 Level3
