- Place of Origin:Guangdong, China
- Brand Name:ETOP
- Model Number:ADS-U060S24L
- Output Type:DC
- Connection:Desktop
- Dimensions:125*50*31.5mm (could be modified)
- AC input:90-264Vac
- Warranty:2 years
- Input:AC 100-240v 50-60hz
- MOQ:500
- Certificate:CE ROHS FCC
- DC Cable Length:can be customized
- Type:constant voltage
- Packing:white box+carton
- Efficiency:89%

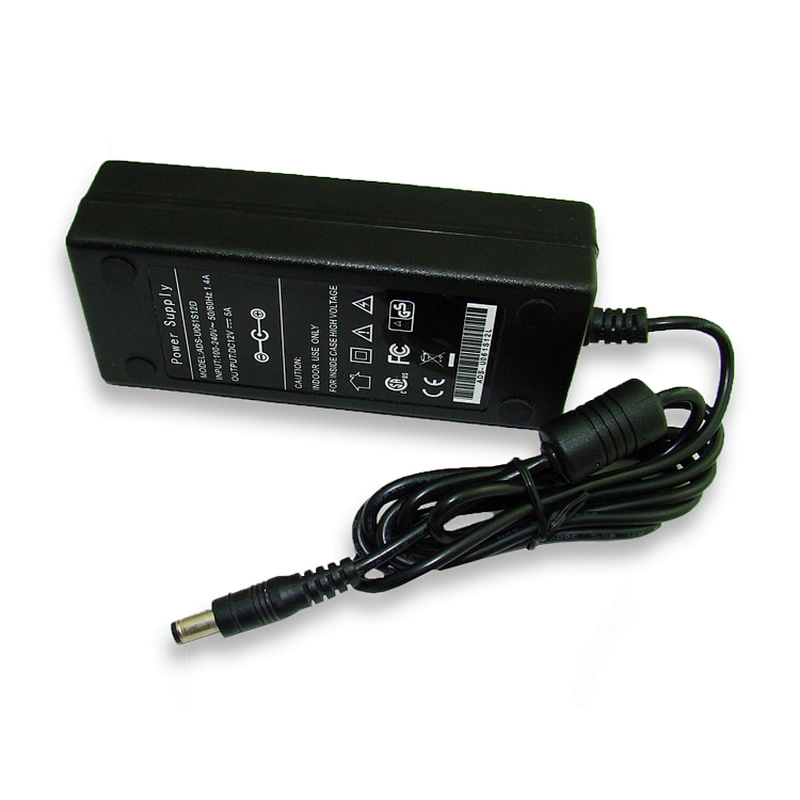

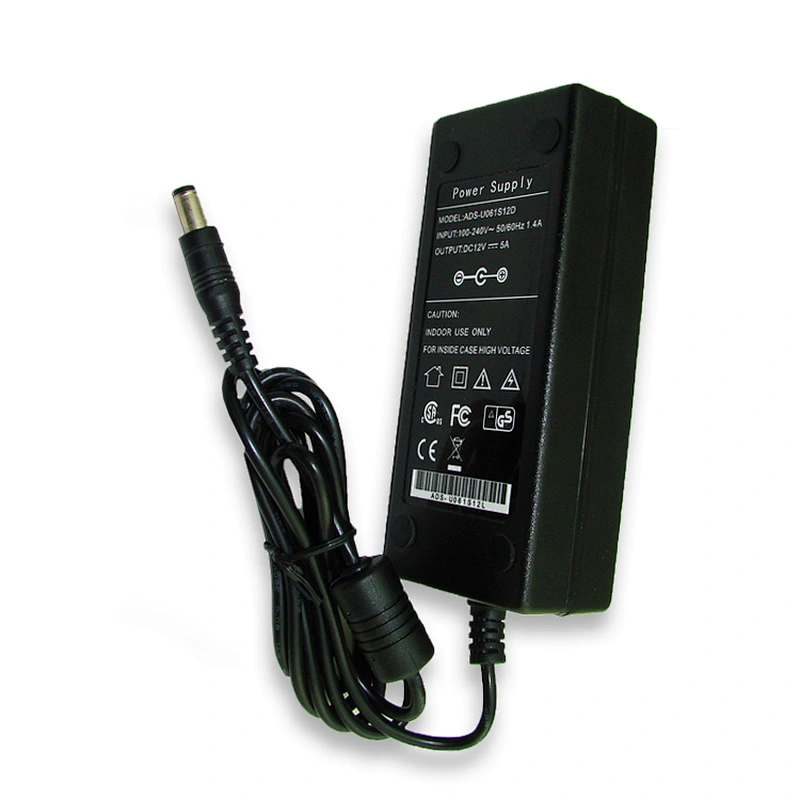

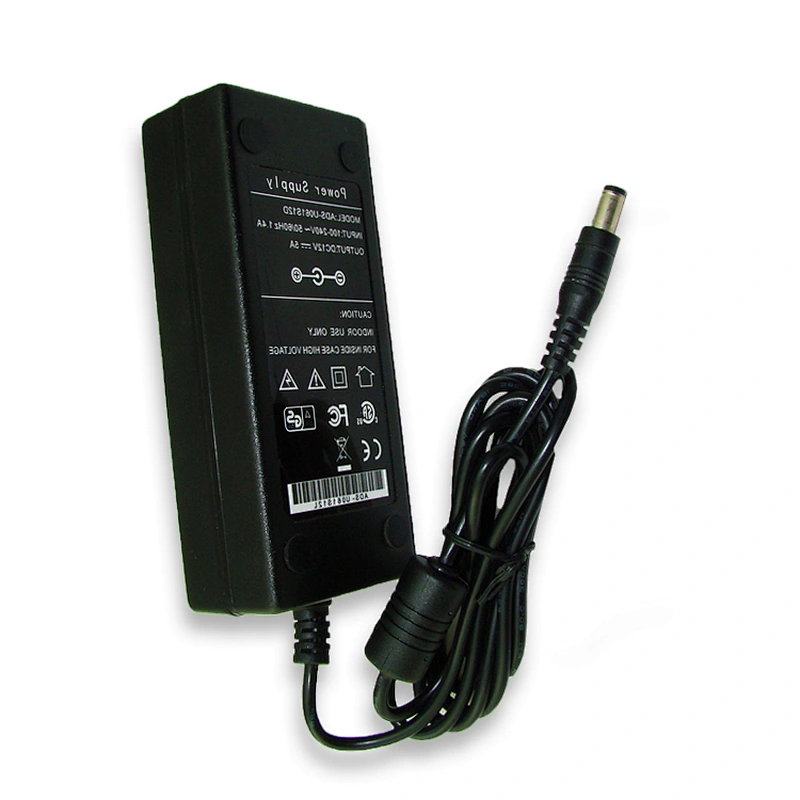

CE,FCC, POS 60w 24v power adapter
1.Featurer:
1. CE, CCC,ISO9001:2000
2. Samples avilable
3. Best Price & Shippment
4. Low consumption & Long lifespan
5.Best after-sale service
6. Provide customizing service,OEM/ODM
2.Parameter table :
Model | ADS-U060S24L |
Input | |
Input Voltage(V) | 100VAC~240VAC |
Input Current (A) | 0.75A Max |
Frequency (Hz) | 47Hz–63Hz |
Efficiency | 88% Typ(230VAC Full Load) |
Inrush current(A) | Cold star <70A/230VAC |
Leakage current(mA) | <1mA/240VAC |
Output | |
Output Voltage(V) | +24Vdc |
Voltage Regulation | 5% |
Output Current(A) | 2.5A |
Current Range (A) | 0-2.5A |
Rated Power(W) | 60W |
Start time, hold-up time(ms) | Ton≤1000ms,Td≥20ms @230Vac Full Load |
Rise time(ms) | Typ:20ms @230Vac Full Load |
Ripple/Noise(mVp-p) | 100mVp-p |
Environment | |
working Temperature (°C) | -20°C - +50°C(refer derating curve) |
Storage Temperature(°C) | -20°C - +80°C |
Humidity(%) | 20% - 90% RH non condensing |
Safety/ EMC | |
Withstand voltage(VAC) | I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min |
Safety Standard | EN/UL60950-1,GB4943 |
EMC Standard | EN55022 Class B,EN61000-4-2,3,4,5,6,8,11 GB17626.5 Level3 |
Protection | |
Over voltage Protection | >115%-135% Rated output voltage |
Over load Protection | >105%-150% hiccup mode,Auto recovery |
Short circuit Protection | Latched |
Over Temperature Protection | Auto reboot |
Others | |
Dimension L*W*H(mm) | 125*50*31.5mm (L*W*H) |
3. High Level Quality
Process: there are a series of strict and standard controlling and managing program and norm from technological research, design, trial make, DVT (design verification testing), raw material sorting, trial production, volume production.

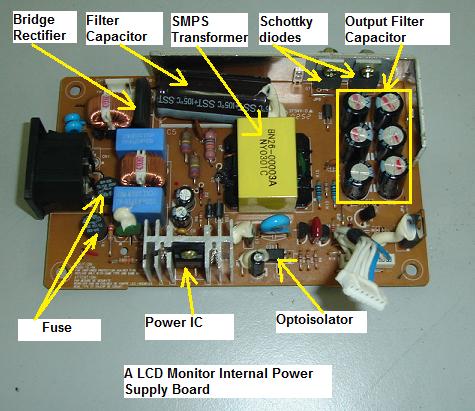

Products:adopt the imported IC (ON,ST,Inf,na...), SMT technology, PWM chip technology which is with
lower standby consumption, stable security and also with the protection from Short-circuit, over load and
over temperature; use Japan-exported high quality 105 degree electrolysis( Rubycon,Nichicon,Nippon
Chemi-con.....) which owns the characters like long-life, thermostability, low impedance, high stability.

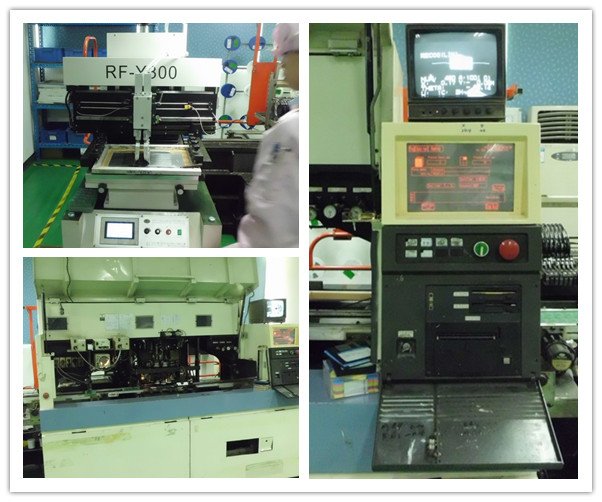

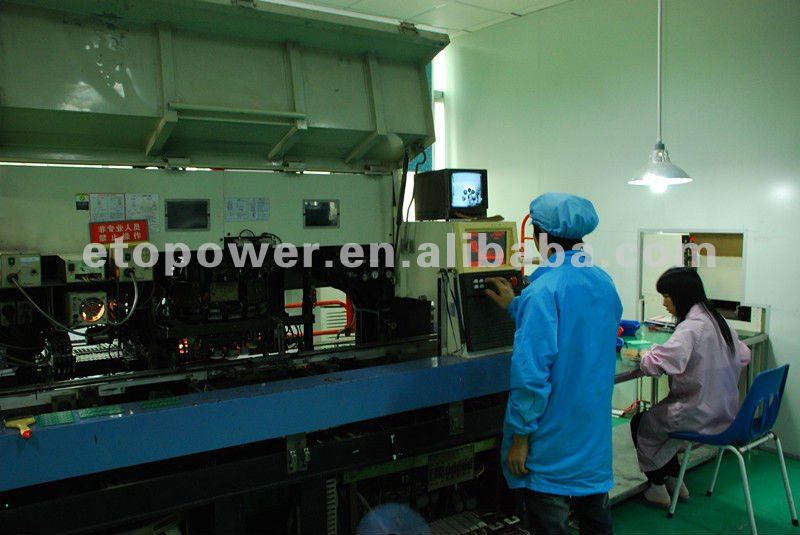

Testing and SMT: all of our power supplies will 100% go through the high and low temperature burn-in
test, salt spray test, 3D vibration experiment, drop test and etc.
in order to ensure power supply could stably work under shipment and different environment or condition
and make sure the mean time between failure, largely adopt SMD components because of its tight mechanism, small volume and exquisite appearance.
Management:in order to provide the best PQPDSR ( products, quality, price, delivery time, service,reliability) to customer, we have a set of our own designed high efficient and computerized administrative system from order receiving, production arranging, raw material purchasing, manufacture process management, shipment, after-sale service, quality analysis and so on.

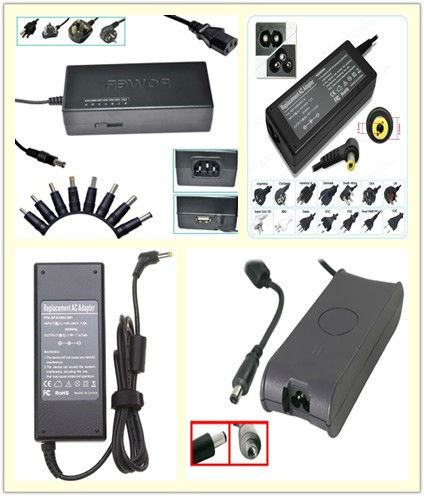

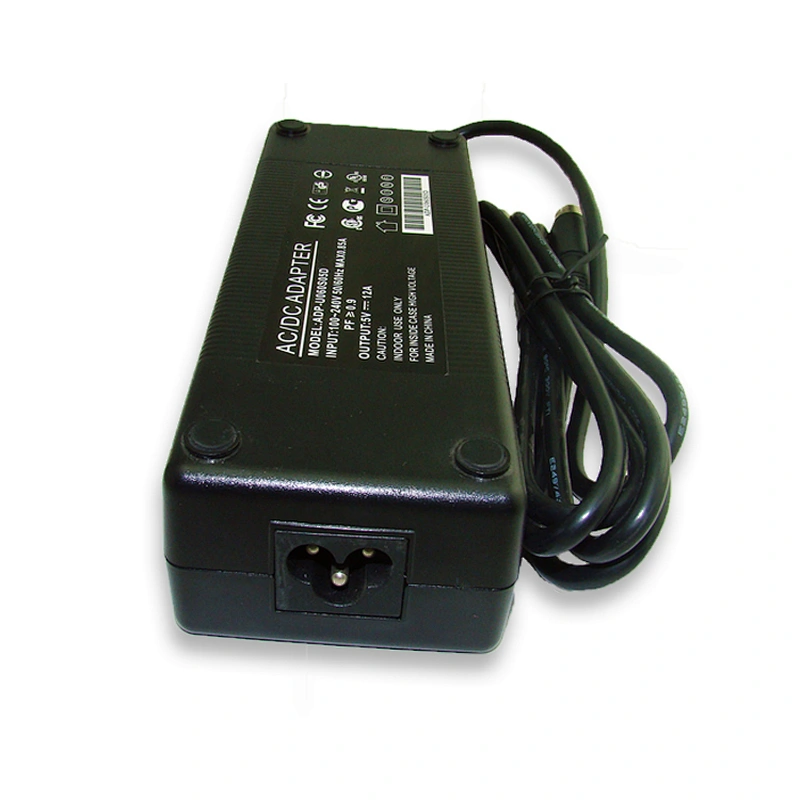

Same series of adapter
Our certifications--- ROHS CCC CE FCC
punctual delivery and various delivery methods(UPS Fedex DHL Air transportation)
Our Packaging:
Our Warranty---3 years

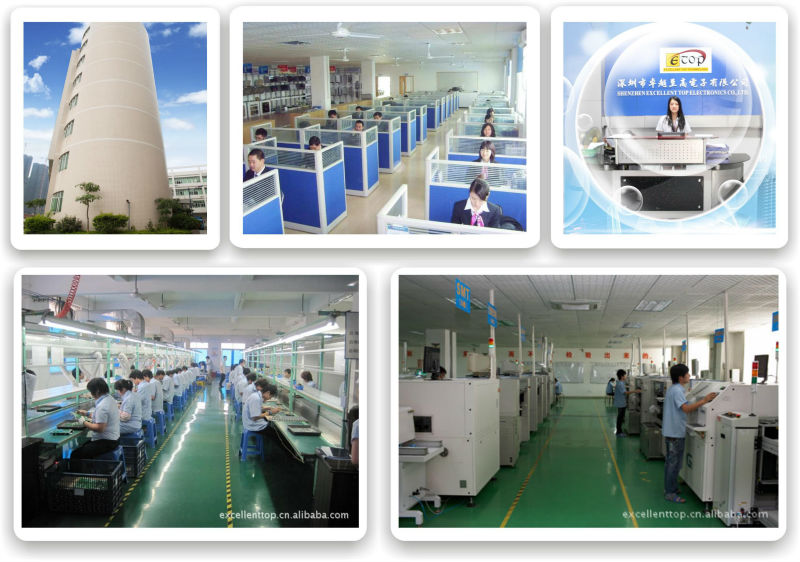

About our company:
Shenzhen Excellent Top Electronics Co.,LTD is an excellent power solution provider ,with more than 10 years experiences in R&D and production of power suppliers.We committed to provide the products with the best quality and price, customer-satisfied service, and the most punctual delivery time.
Our products are 100% through high temperature ageing ,which accords with CCC, CE, UL and many other authoritative organization's security authentication standard.And we are also specialising in customizing all kinds of power supply .
