- Place of Origin:Guangdong, China
- Brand Name:ETOP
- Model Number:ADS-U060SXXL
- Output Type:DC
- Connection:Desktop
- Protections:Short Circuit Overload Overvolt Overtemp
- Efficiency:94%
- Warranty:3 Years
- Type:Constant voltage
- Input:100- 240VAC
- Output:5V/ 6A, 7.5V/6A, 9V/6A, 12V/5A ,15V/4A

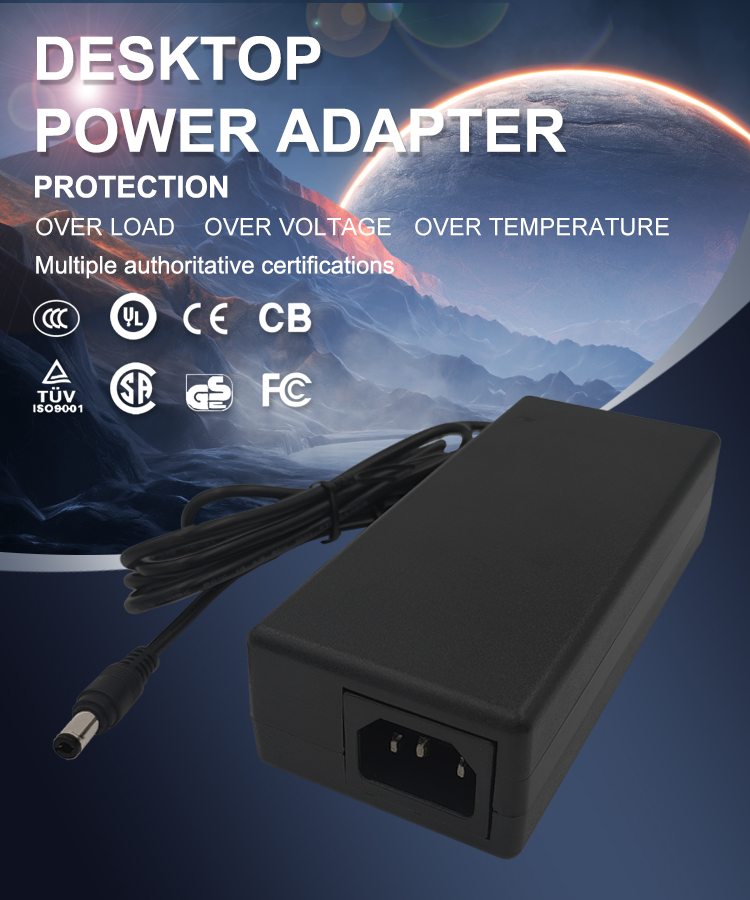

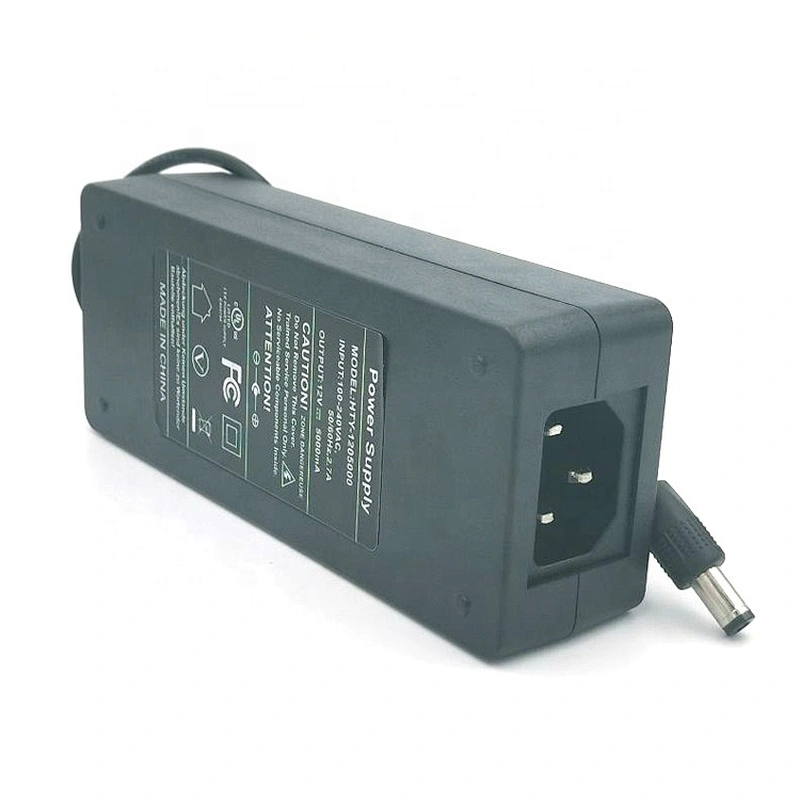

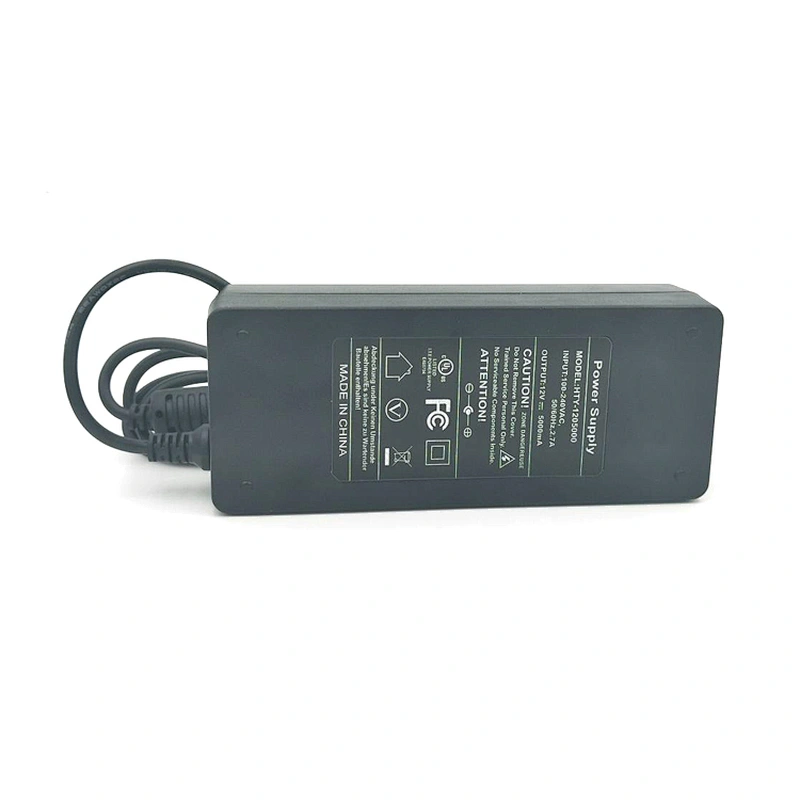

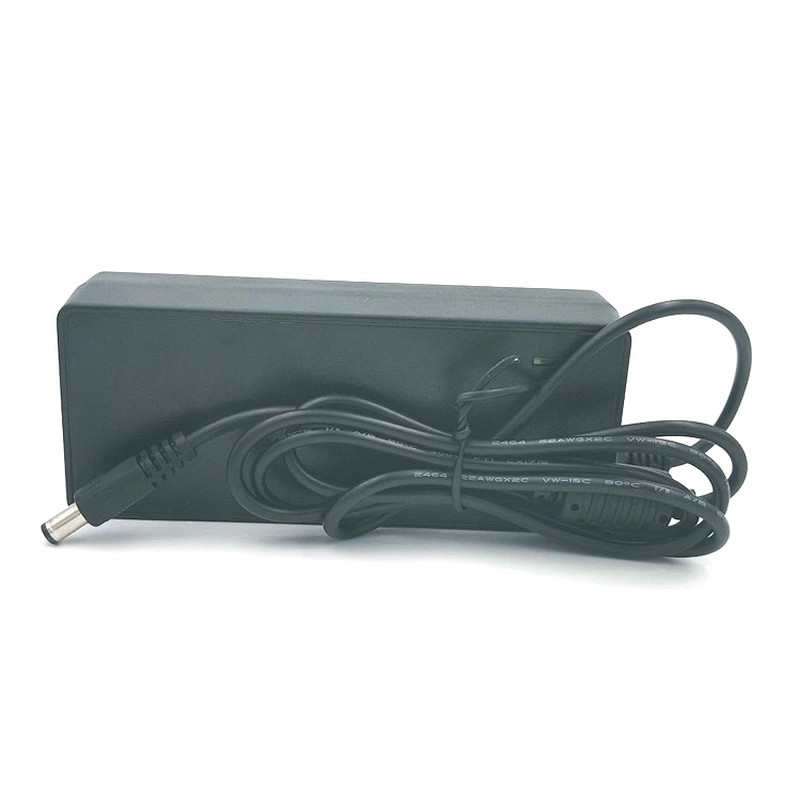

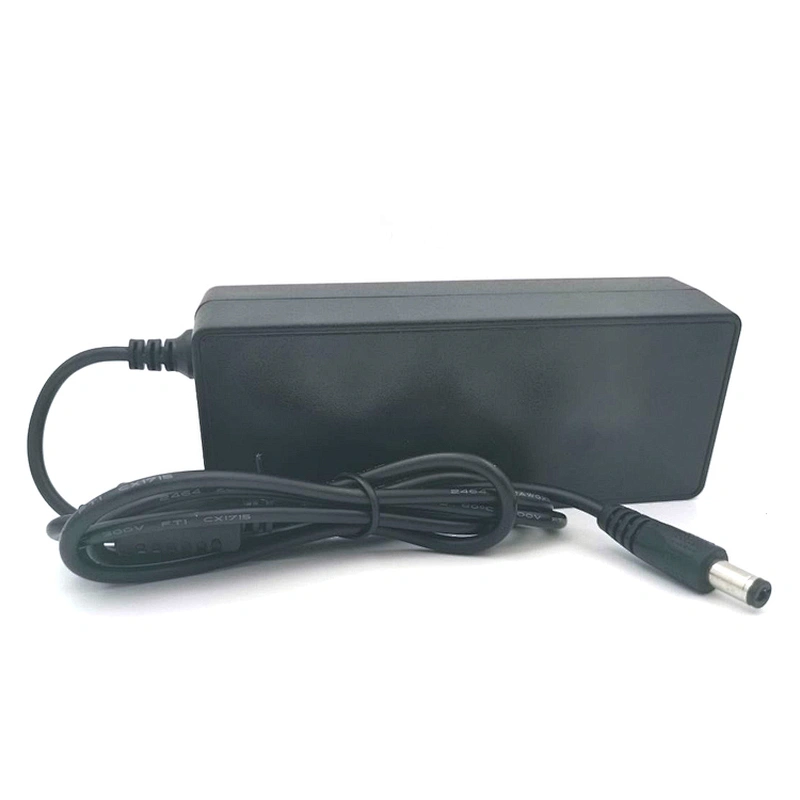

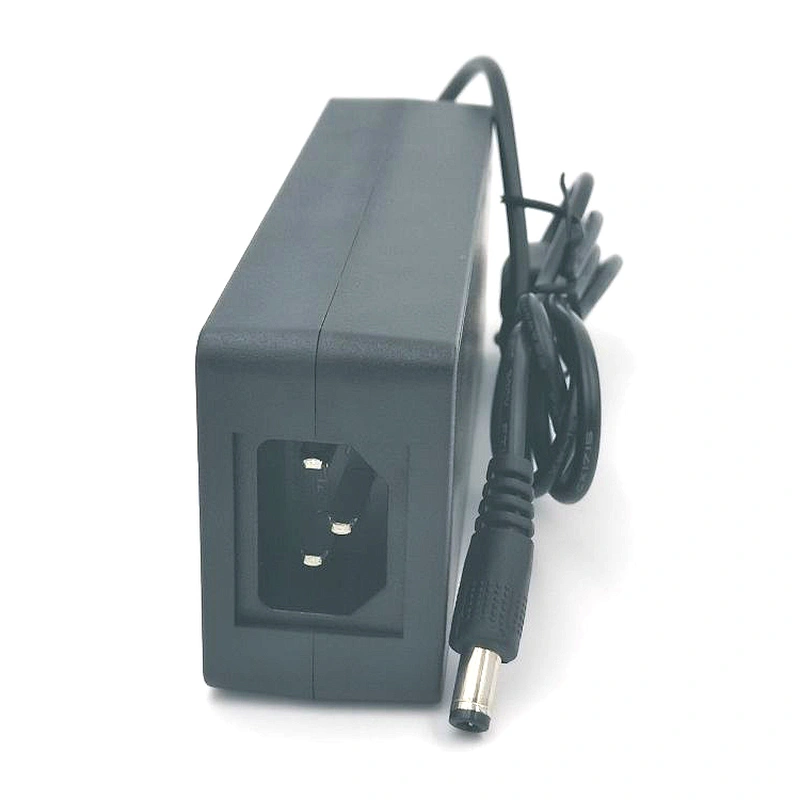

Manufacturers Wholesale 30W 45W 54W 60W 72W Desktop Type DC 5V 6A 7.5V 6A 9V 6A 12V 5A 15V 4A Power Adapter Laptop Power Adapter
Product Description
Product Description
| Module NO. | ADS-U060S12L | ADS-U060S18L | ADS-U060S24L | ||||
| OUTPUT | DC VOLTAGE | 12V | 18V | 24V | |||
| RATED CURRENT | 5A | 3.3A | 2.5A | ||||
| CURRENT RANGE | 0~5A | 0~3.3A | 0~2.5A | ||||
| RATED POWER | 60W | 60W | 60W | ||||
| RIPPLE & NOISE (max. | 200mVp-p | 200mVp-p | 200mVp-p | ||||
| VOLTAGE TOLERANCE | +/-3.0% | +/-3.0% | +/-3.0% | ||||
| LINE REGULATION | +/-1.0% | +/-1.0% | +/-1.0% | ||||
| LOAD REGULATION | +/-3.0% | +/-3.0% | +/-3.0% | ||||
| SETUP, RISE | 1000ms,30ms /230VAC,1000ms,30ms/115VAC((at full load)) | ||||||
| HOLD UP TIME | 50ms /230VAC 15ms/115VAC ((at full load)) | ||||||
| INPUT | VOLTAGE RANGE | 100~240VAC | |||||
| FREQUENCY RANGE | 47~63Hz | ||||||
| EFFICIENCY (Typ.) | 88% | ||||||
| AC CURRENT | 1.4A/ 115VAC lA/230VAC | ||||||
| INRUSH CURRENT (max.) | 65A/ 230VAC | ||||||
| LEAKAGE CURRENT (max.) | 0.75mA/ 240VAC | ||||||
| PROTECTION | OVERLOAD | Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| OVER TEMPERATURE | RTH2 >70℃ | ||||||
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| ENVIRONMENT | WORKING TEMP. | -10~+50℃ | |||||
| WORKING HUMIDITY | 20~90% RH,non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40~+ 85℃, 10~95% RH | ||||||
| TEMP. COEFFICIENT | +/-0.03%/℃(0~50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY & EMC | WITHSTAND VOLTAGE | I/p-0/P: 1.5KVAC I/p-FG: 1.5KVAC 0/p-FG: 0.5KVAC | |||||
| ISOLATION RESISTANCE | I/P-0/P, I/P-FG, 0/P-FG: 100M Ohms/500VDC / 25℃ / 70% RH | ||||||
| EMC EMISSION | Compliance to EN55022 classB,EN61000-3-2,3,FCCPART 15/C[SPR22 classB,CNSl3438 classB,GB9254 classB,GBl7625,1 | ||||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A | ||||||
| OTHERS | MTBF | ≥ 711 Khrs MIL-H DBK-217F( 25℃ ) | |||||
| DIMENSION | 120×41×32mm (L*W*H) | ||||||
Company Information
FAQ
1. Q: Is sample available?
A: Yes, sample order is welcome.
2. Q: Can you factory provide ODM/OEM service?
A: ETOP factory have professional engineer team.
Your ODM/OEM order is welcome !
