- Place of Origin:Guangdong, China
- Brand Name:ETOP
- Model Number:ADS-U036S05L
- Output Power:36w
- Output Type:Single
- Input Voltage:100VAC-240VAC
- Output Voltage:12V 5v
- Output Frequency:50-60Hz
- Output Current:3.6a 5a
- Product Name:12v adapter socket
- Certification:CE ROHS FCC
- Application:LCD CCTV,HDDBOX, DVR,LED-TV, MiNi sound box, Robot cleaner,
- Protections:Short Circuit/Over load/Over Voltage
- Warranty:3 Years
- Efficiency:86%
- Dimensions:125*50*31.5mm (could be modified)
- Type:Constant Voltage Mode Power
- Item:OEM AC Adapter
- Usage:electronic Appliance

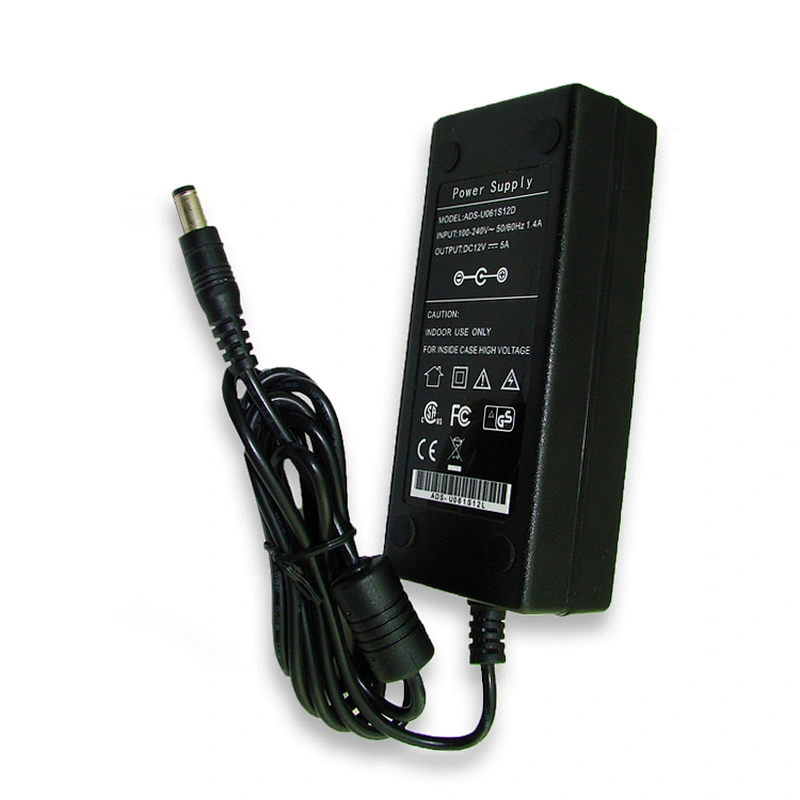

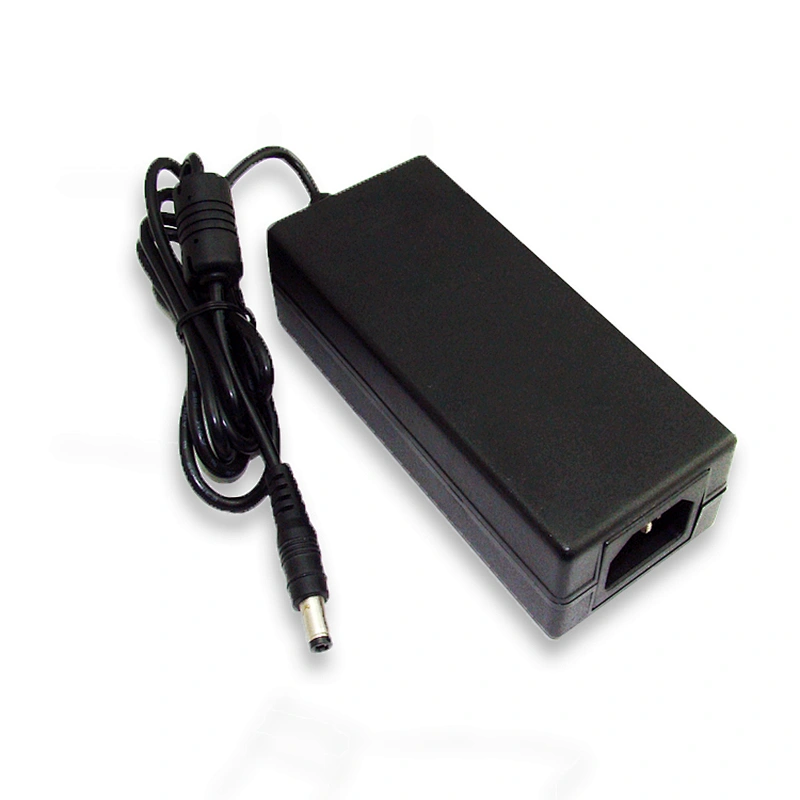

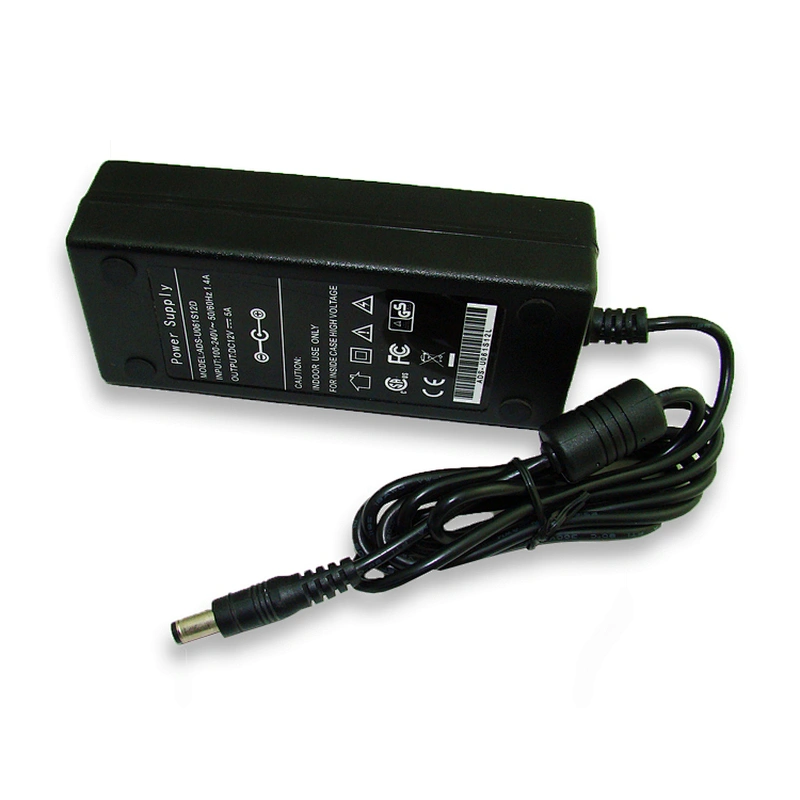

100-240vac adjustable voltage universal 36W 12V 3A 5v5a Ro water purifier desktop power adapter
1.Feature:
1.UL, CE, CCC,ISO9001:2000
2. Samples avilable
3.Best Price & Shippment
4. Low consumption & Long lifespan
5.Bestafter-sale service
6. Provide customizing service,OEM/ODM
2.Parameter table :
Model | ADS-U036S05L |
Input | |
Input Voltage(V) | 100VAC~240VAC |
Input Current (A) | 0.46A Max |
Frequency (Hz) | 47Hz–63Hz |
Efficiency | 78% Typ(230VAC Full Load) |
Inrush current(A) | Cold star <70A/230VAC |
Leakage current(mA) | <1mA/240VAC |
Output | |
Output Voltage(V) | +5Vdc |
Voltage Regulation | 5% |
Output Current(A) | 5A |
Current Range (A) | 0-5A |
Rated Power(W) | 36W |
Start time, hold-up time(ms) | Ton≤1000ms,Td≥20ms @230Vac Full Load |
Rise time(ms) | Typ:20ms @230Vac Full Load |
Ripple/Noise(mVp-p) | 100mVp-p |
Environment | |
working Temperature (°C) | -20°C - +50°C(refer derating curve) |
Storage Temperature(°C) | -20°C - +80°C |
Humidity(%) | 20% - 90% RH non condensing |
Safety/ EMC | |
Withstand voltage(VAC) | I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min |
Safety Standard | EN/UL60950-1,GB4943 |
EMC Standard | EN55022 Class B,EN61000-4-2,3,4,5,6,8,11 GB17626.5 Level3 |
Protection | |
Over voltage Protection | >115%-135% Rated output voltage |
Over load Protection | >105%-150% hiccup mode,Auto recovery |
Short circuit Protection | Latched |
Over Temperature Protection | Auto reboot |
Others | |
Dimension L*W*H(mm) | 125*50*31.5mm (L*W*H) |
Certifications
Certificate
Trade Show
1.Good and High efficiency Team:our company have sales team,R&D team,purchase team,PMT team,production team and quality team etc.Our teams works hard together with high efficiency,and our teams have the same target--Excellent quality,the highest service !
2.OEM&ODM Services: Our company have professional engineers,so we can customize products According to your detailed requirements,your samples or your ideas.

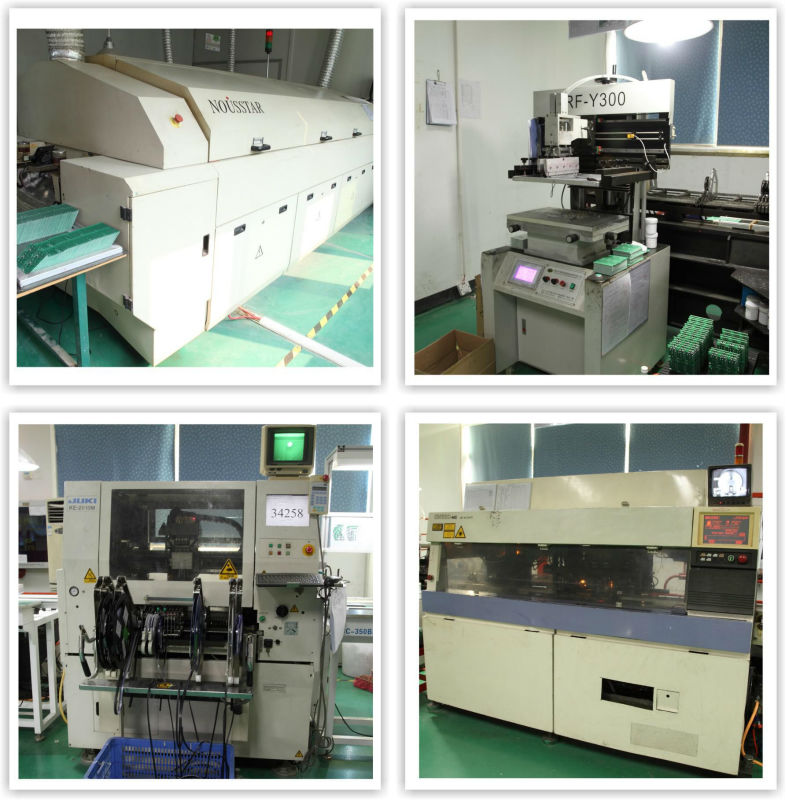

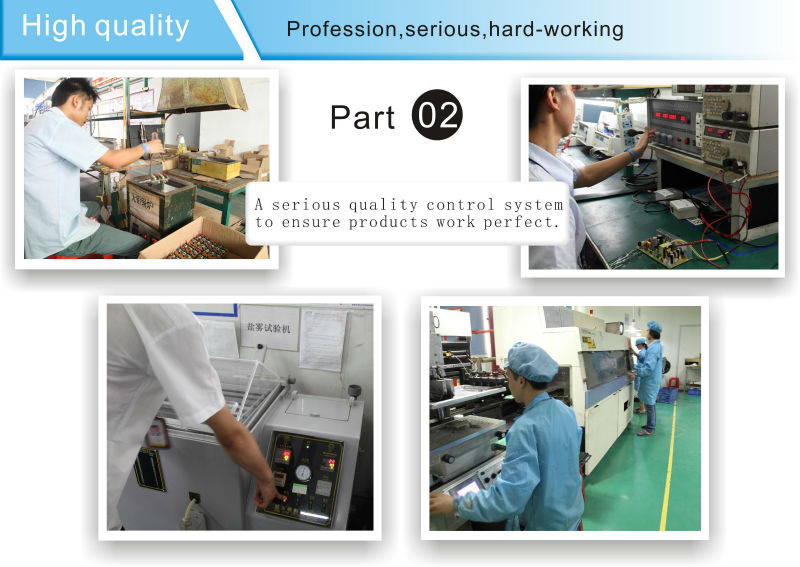

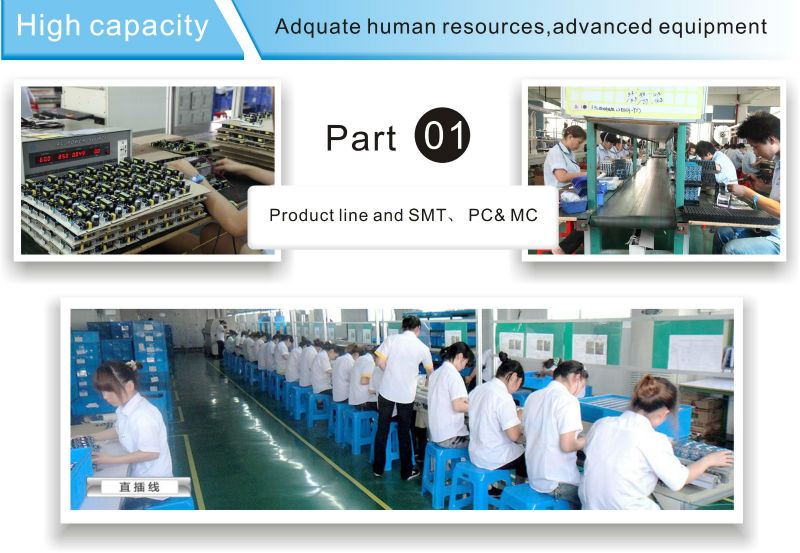

3.High efficiency automatic SMT machine and production process:itis fast,high-efficient and standard.Professionalsurfacemounting and trough-hole soldering technology.-our production process must through below steps to guarantee good quality Inspecting Raw Materials-Auto machine to SMT--Plug-in module--Pass wave-soldering (Auto solder)--Anglecutter cutting angles--Post-solder &Assembling--QC Inspection--FQC Testing ProductsAgeing--Quality department spot-check goods--Packing--Shipping out.
4. Excellent geographical location: Our company locate in good place,the transportation isvery convenient.It takes short time to reach our company.
Our Product Package:
In order to protect products,the inner package is often use PP bags or Anti Static bags,and the use white box to pack each product,then put each one into the strong carton,at last finish packing.
Transportation ways of products:
You can choose any way which you like to ship the goods,we will try our best to help you save shipping cost.
Our Promise:
Customers satisfaction, provide good quality and reasonable price be to engaged in 100% of us
The above sample photos are coming from main production.
Thanks and the first cooperation to be expected.
How to pay?
1.T/T 30% in advance, T/T 70% before delivery.
2.Others: Paypal, Western union, L/C
Production cycle:
1. About big order: Our producing capacity is 100,000pcs each month, your order will according to real producing planning, finished in 20-25 days.
2. About sample: if sample do not have stock or it is customize type, we will need 5-12 days to ready, include purchaing material, producing time and delivery time. If sample have stock, sample time is 5-7 days.
About certificates:
Our products have approved CE,FCC and RoHS certificates. If you need others certificate in your market, pls tell us, we willing to invest in certificates, and we are able to do, but according to your quantity.
What is our MOQ?
We will have different MOQ in each models, from 500pcs to 5000pcs.
