- Place of Origin:Guangdong, China
- Brand Name:ETOP
- Model Number:ADS-U048S24L
- Output Type:DC
- Connection:Desktop
- Dimensions:125*50*31.5mm (could be modified)
- AC input:90-264Vac
- Warranty:2 years
- Certificate:CE,ROHS,FCC GS SAA
- MOQ:500pcs
- Color:black
- Package:white box
- DC Cable Length:can be customized
- Type:desktop
- DC Output voltage:24v

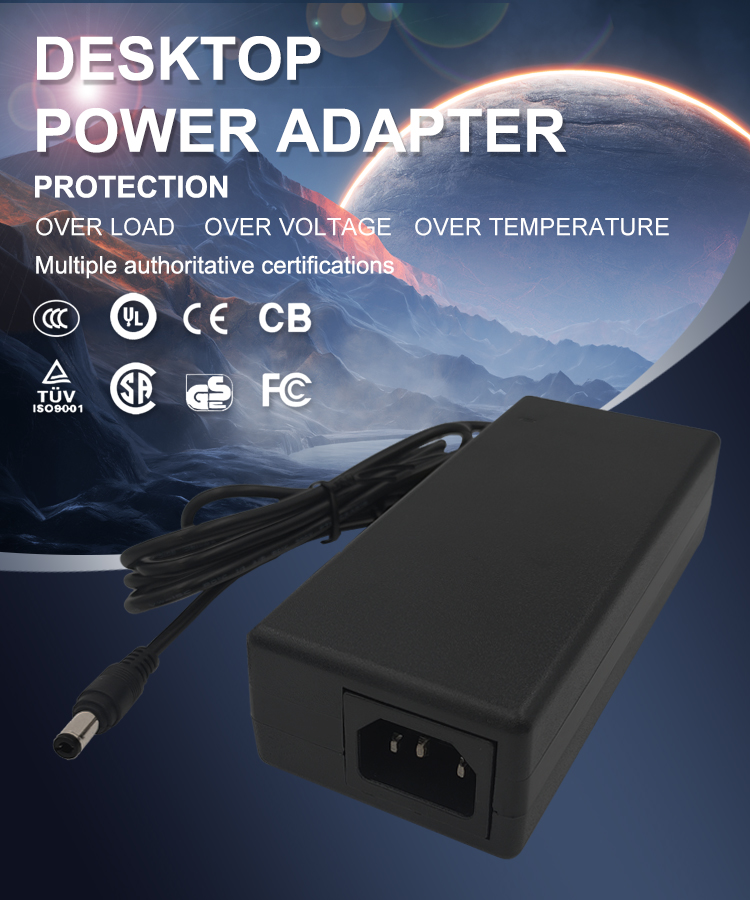

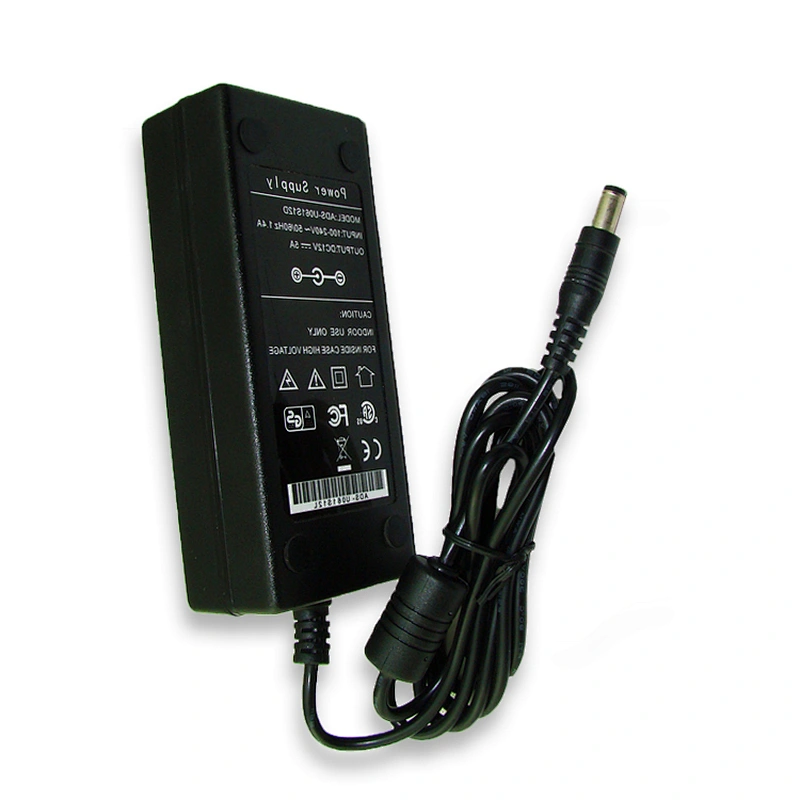

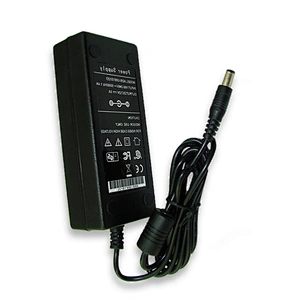

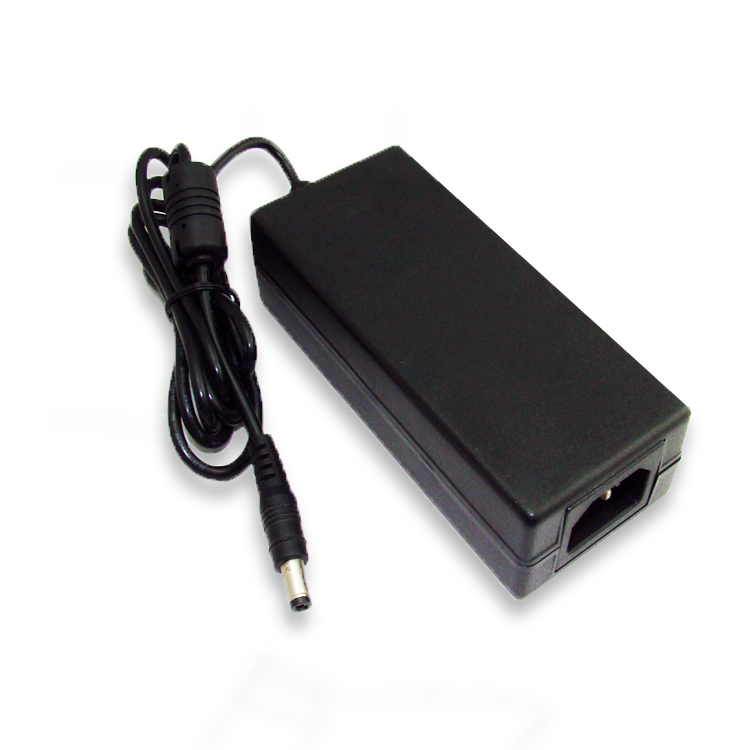

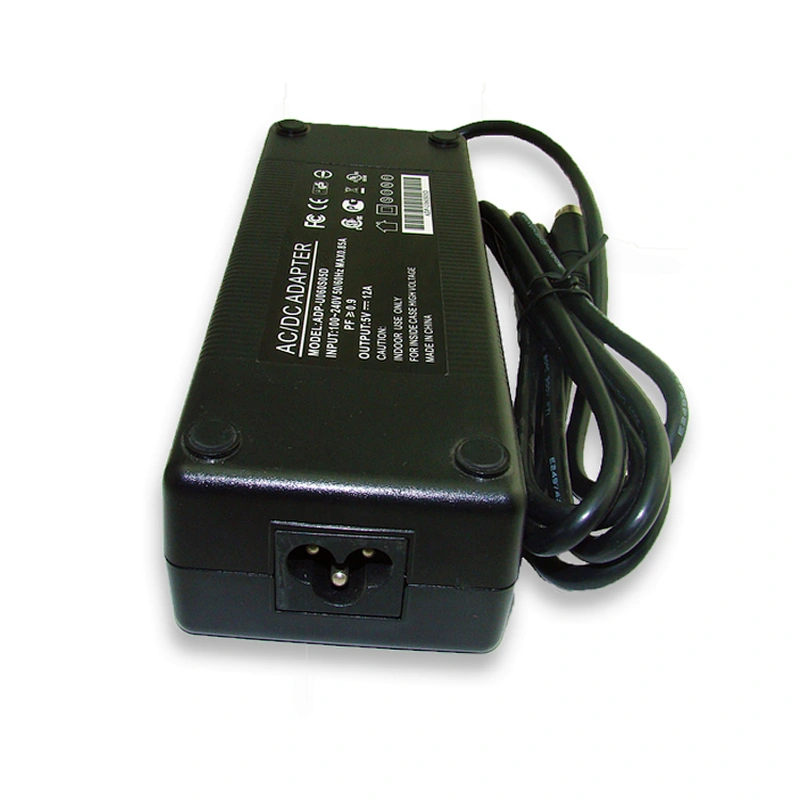

oem odm customizing 48W 24V 2A ac dc power adapter Low consumption Long lifespan 100-240vac Desktop Type power supplies Adapters
Feature:
1. CE, CCC,ISO9001:2000
2. Samples avilable
3. Best Price & Shippment
4. Low consumption & Long lifespan
5. Best after-sale service
6. Provide customizing service,OEM/ODM
Parameter table :
Model | ADS-U048S24L |
Input | |
Input Voltage(V) | 100VAC~240VAC |
Input Current (A) | 0.75A Max |
Frequency (Hz) | 47Hz–63Hz |
Efficiency | 88% Typ(230VAC Full Load) |
Inrush current(A) | Cold star <70A/230VAC |
Leakage current(mA) | <1mA/240VAC |
Output | |
Output Voltage(V) | +24Vdc |
Voltage Regulation | 5% |
Output Current(A) | 2A |
Current Range (A) | 0-2A |
Rated Power(W) | 48W |
Start time, hold-up time(ms) | Ton≤1000ms,Td≥20ms @230Vac Full Load |
Rise time(ms) | Typ:20ms @230Vac Full Load |
Ripple/Noise(mVp-p) | 100mVp-p |
Environment | |
working Temperature (°C) | -20°C - +50°C(refer derating curve) |
Storage Temperature(°C) | -20°C - +80°C |
Humidity(%) | 20% - 90% RH non condensing |
Safety/ EMC | |
Withstand voltage(VAC) | I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min |
Safety Standard | EN/UL60950-1,GB4943 |
EMC Standard | EN55022 Class B,EN61000-4-2,3,4,5,6,8,11 GB17626.5 Level3 |
Protection | |
Over voltage Protection | >115%-135% Rated output voltage |
Over load Protection | >105%-150% hiccup mode,Auto recovery |
Short circuit Protection | Latched |
Over Temperature Protection | Auto reboot |
Others | |
Dimension L*W*H(mm) | 125*50*31.5mm (L*W*H) |
About our company:
Shenzhen Excellent Top Electronics Co.,LTD is an excellent power solution provider ,with more than 10 years experiences in R&D and production of power suppliers.We committed to provide the products with the best quality and price, customer-satisfied service, and the most punctual delivery time.
Our products are 100% through high temperature ageing ,which accords with CCC, CE, UL and many other authoritative organization's security authentication standard.And we are also specialising in customizing all kinds of popwer supply .
