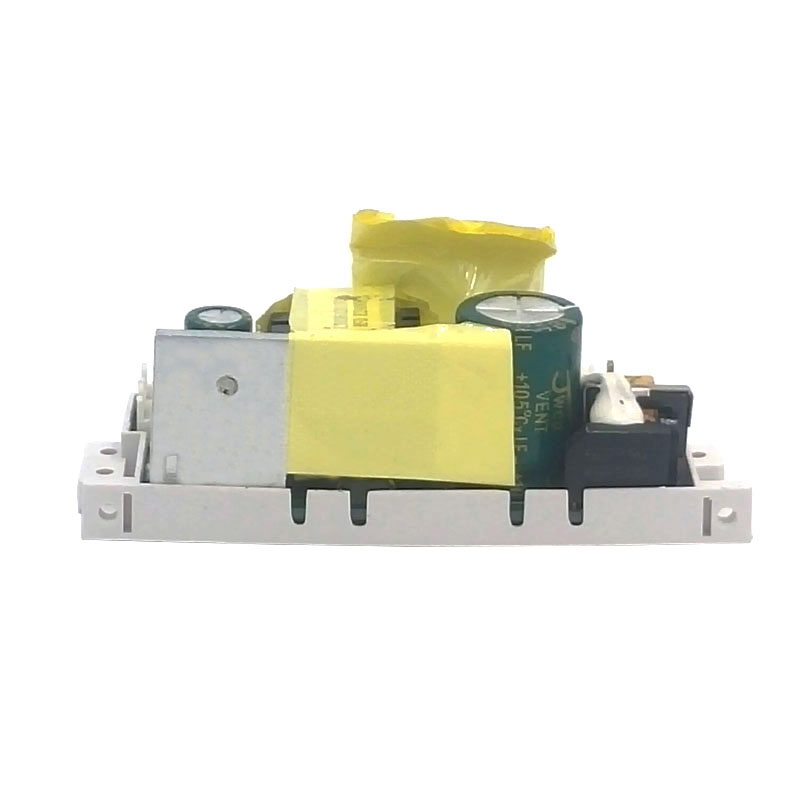

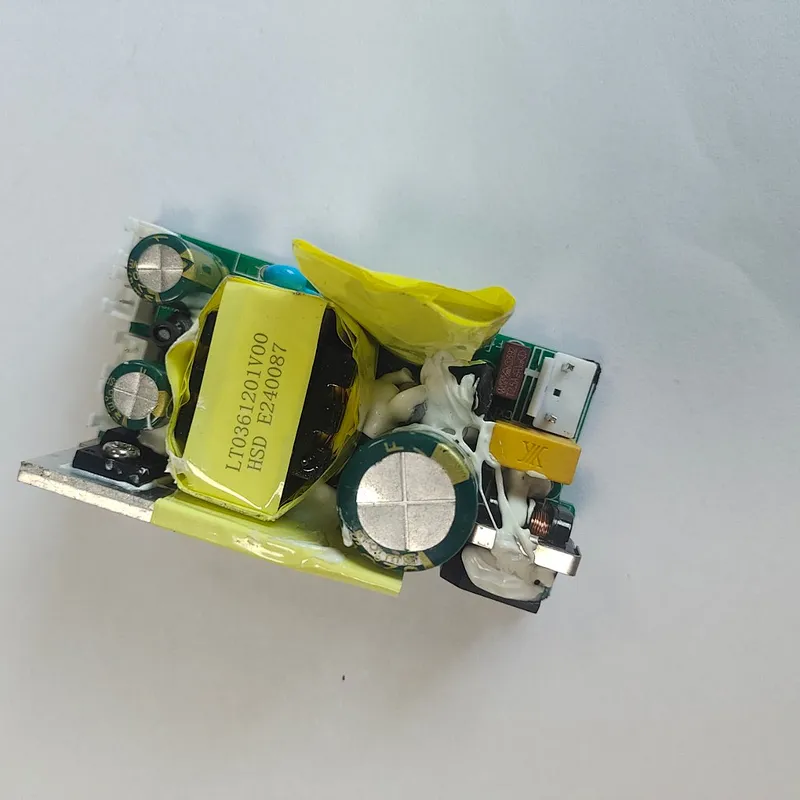

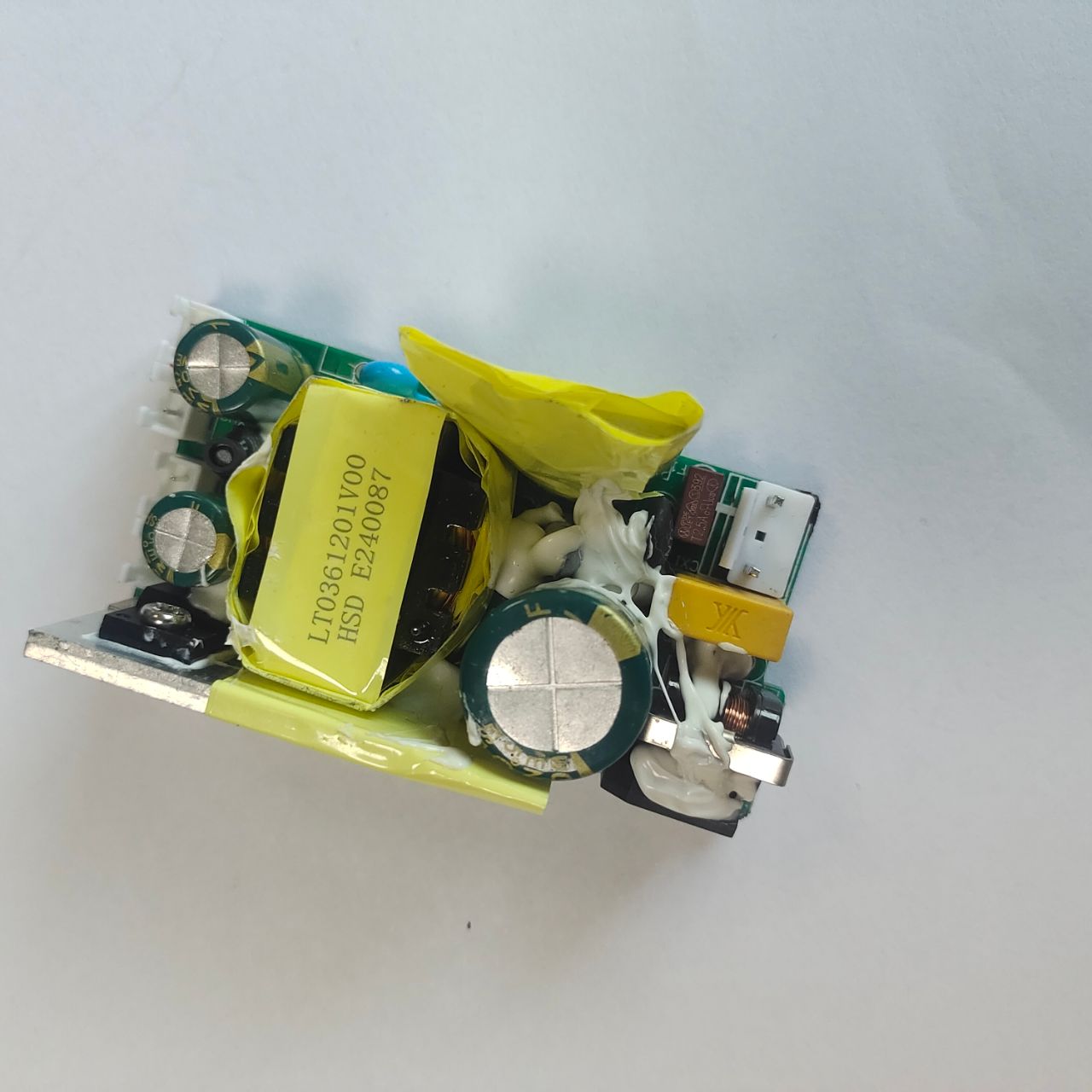

Best Selling 36W Thermoelectric Power Generator Module 12V 3A Single Output Open Frame Industrial Switching Power Supply
Product Description
MODEL | OUTPUT | RIPPLE & NOISE (max.) | Voltage accuracy | Linear adjustment rate | Load Regulation | EFFICIENC |
LPS-U024S12A | 12V/2A | 120mVp-p | ±5% | ±1% | ±5% | 80% |
LPS-U036S12A | 12V/3A | 120mVp-p | ±5% | ±1% | ±3% | 80% |
LPS-U024S24A | 24V/1A | 240mVp-p | ±5% | ±1% | ±3% | 84% |
LPS-U036S24A | 24V/1.5A | 240mVp-p | ±5% | ±1% | ±3% | 84% |
LPS-U048S24A | 24V/2A | 240mVp-p | ±5% | ±1% | ±3% | 84% |
LPS-U048S48A | 48V/1A | 480mVp-p | ±5% | ±1% | ±3% | 86% |
Input Voltage & Frequency | 110-240VAC 47~63Hz |
Input Current | 2.7A/115VAC 1.5A/230VAC |
Start inrush current | 65A/230VAC |
LEAKAGE CURRENT(max.) | 0.75mA/240VAC |
SETUP, RISE TIME | 2000ms, 30ms/230VAC 3000ms, 30ms/115VAC at full load |
HOLD UP TIME (Typ.) | 50ms/230VAC 15ms/115VAC at full load |
WORKING TEMP., HUMIDITY | -10~+50°C(Refer to"Derating Curve") 20 ~ 90% RH non-condensing |
STORAGE TEMP., HUMIDITY | -25~+ 60°C , 10~95% RH |
TEMP. COEFFICIENT | ±3%/°C (0~50°C) |
VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
WITHSTAND VOLTAGE | I/p-0/P: 3KVAC I/p-PG: 1.0KVA O/p-PG: 0.5KVAC |
MTBF | ≥ 500K hrs. MIL-HDBK-217F (25°C ) |
DIMENSION | 95*40*32mm (L*W*H) |
