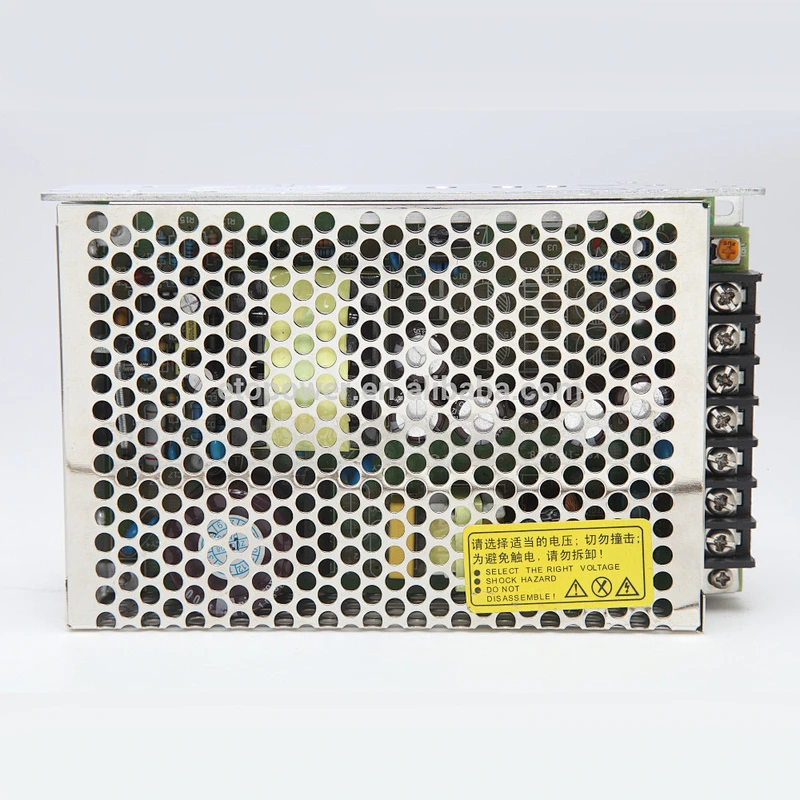

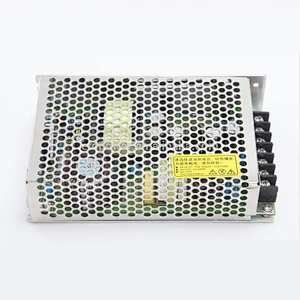

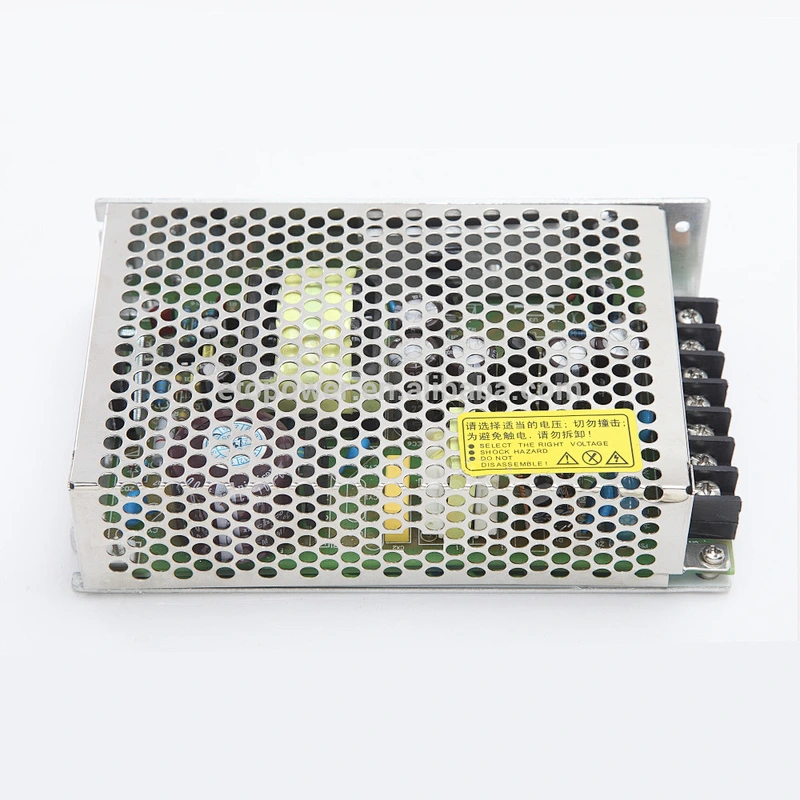

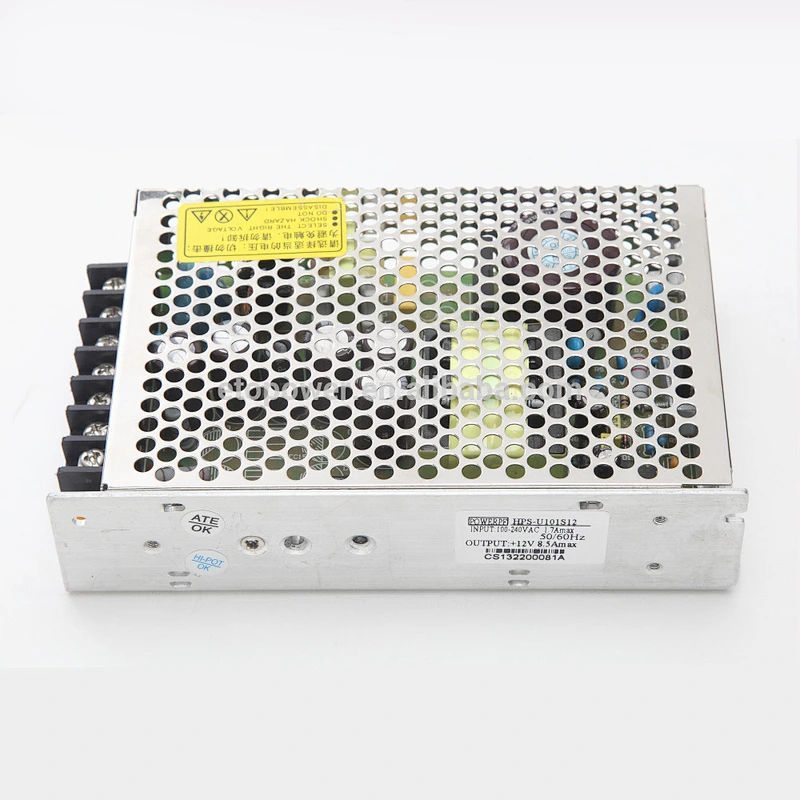

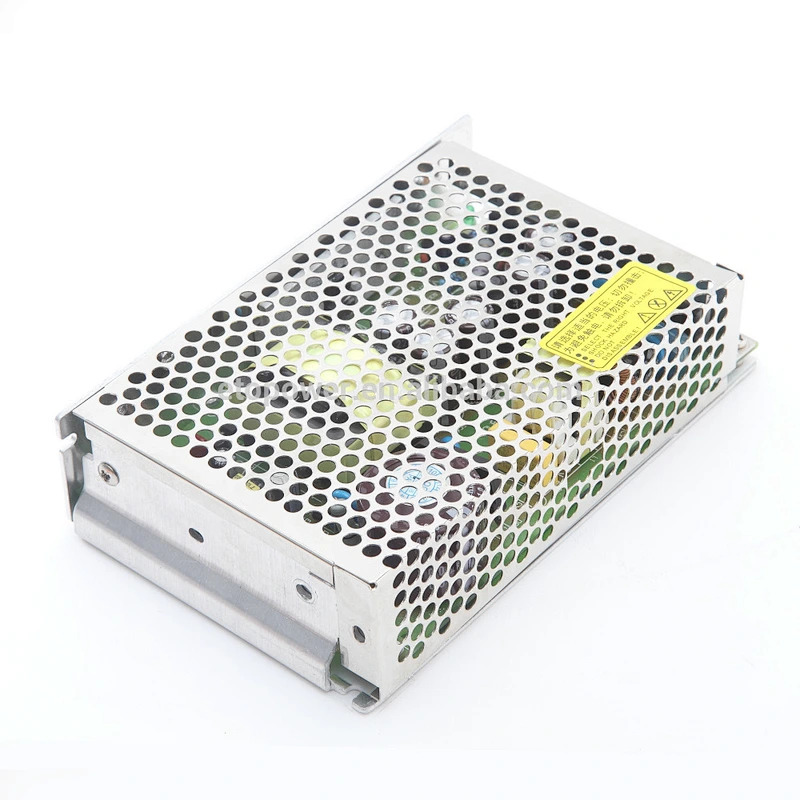

230vac to 24vdc 5a 100W 120w power transformer supply

Model

HPS-U101S24

Input

Input Voltage(V)

100VAC-240-VAC

Input Current (A)

2.5A Max

Frequency (Hz)

50Hz–60Hz

Efficiency

74% Typ(230VACFull Load)

Inrush current(A)

Cold star,  <40A/230VAC

Leakage current(mA)

<3mA/240VAC

Output

Output Voltage(V)

+24Vdc

Voltage Regulation

3%

Output Current(A)

5A

Current  Range (A)

0~5A

Rated Power(W)

120W

Start time, hold-up time(ms)

Ton≤1000ms,Td≥20ms @230Vac Full Load

Rise time(ms)

Typ:20ms @230Vac Full Load

Ripple/Noise(mVp-p)

200mVp-p

Environment

working Temperature (°C)

0°C - +50°C(refer derating curve)

Storage Temperature(°C)

‘-20°C - +80°C

Humidity(%)

20% - 90% RH non condensing

Safety/    EMC

Withstand voltage(VAC)

I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min

Safety  Standard

EN/UL60950-1,GB4943

EMC  Standard

EN55022 Class B,EN61000-4-2,3,4,5,6,8,11 GB17626.5 Level3

Protection

Over voltage Protection

>115%-135% Rated output voltage

Over load Protection

>105%-150% ,Auto recovery

Short circuit Protection

Latched

Over Temperature Protection

N/A

Others

MTBF

≥230K hrs  25°C

Dimension      L*W*H(mm)

159*97*38mm

Weight      g/pcs

590g/pcs
