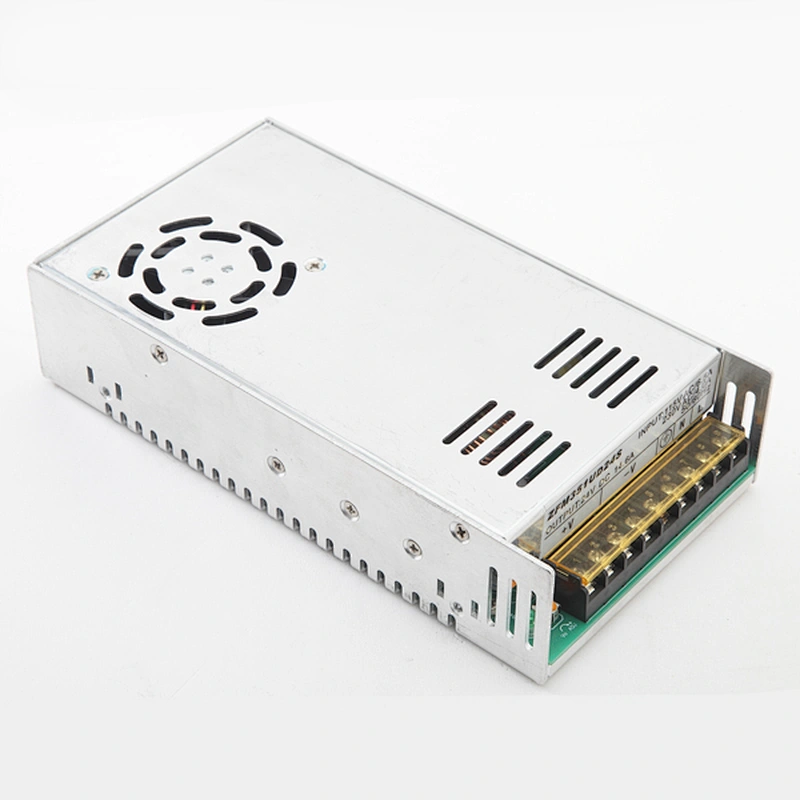

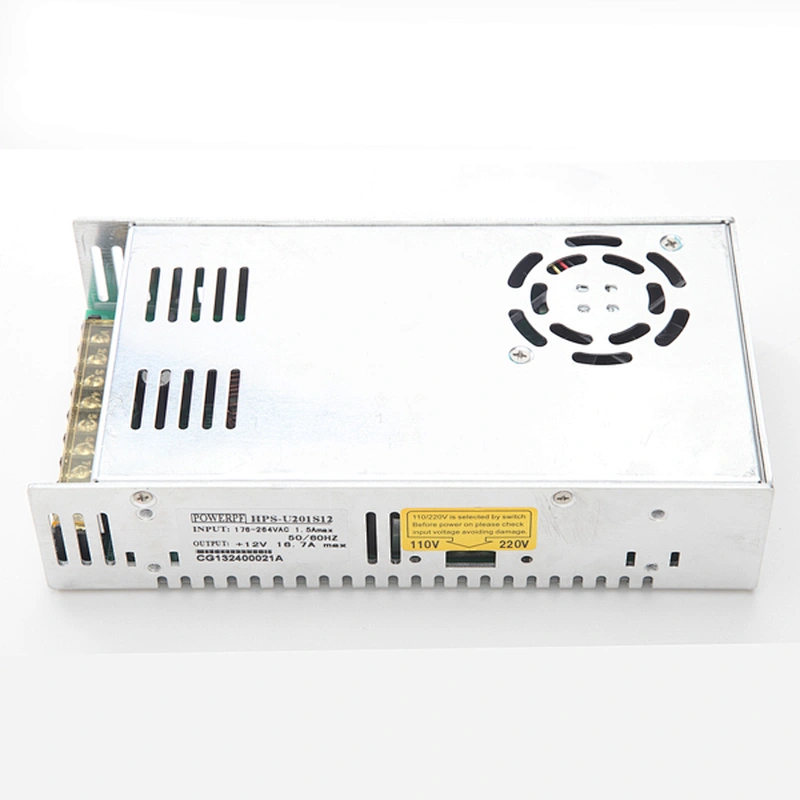

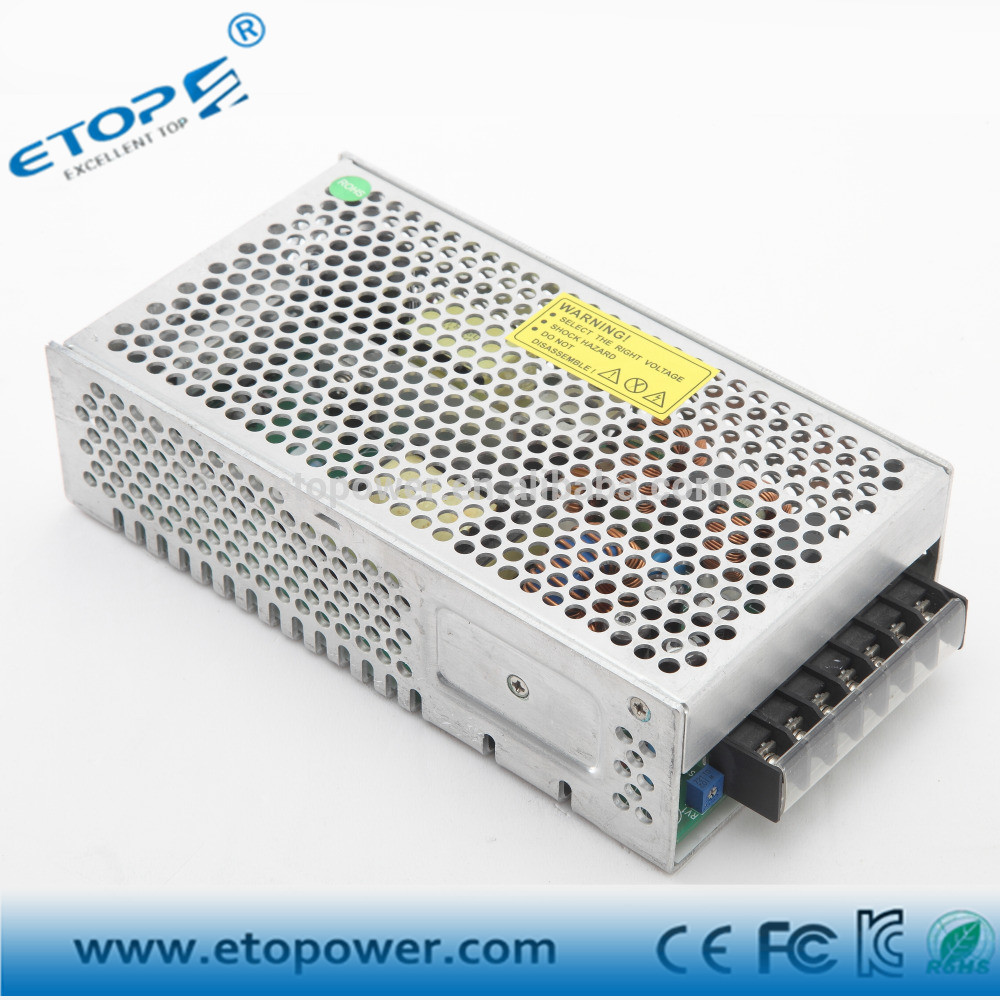

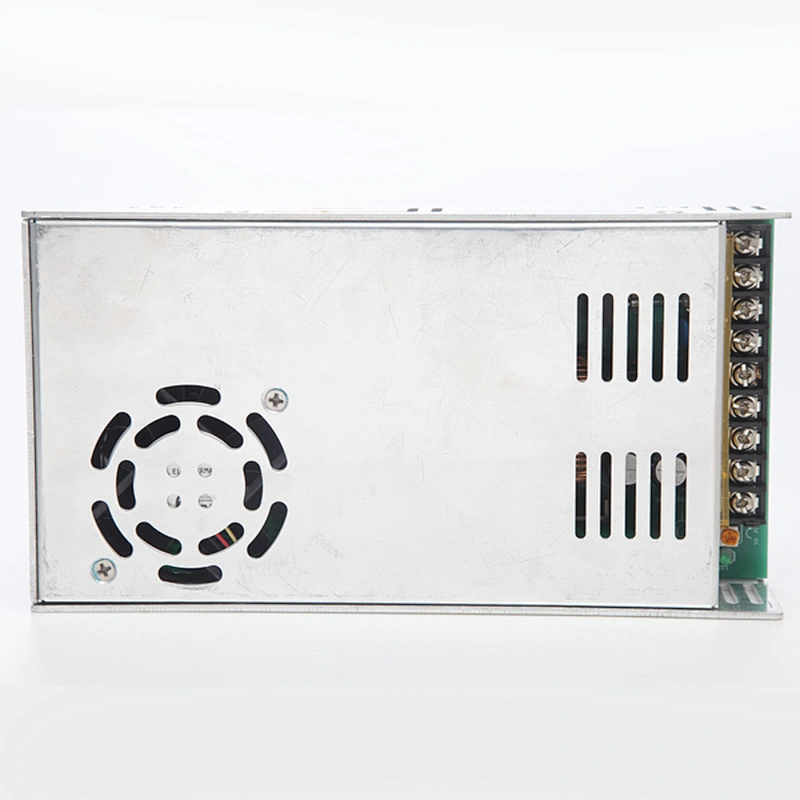

shenzhen enclosed type 0-24v 10a dc power supply 24v 10a smps

shenzhen enclosed type 0-24v 10a dc power supply 24v 10a smps

Model NO.: HPS-U251SXXA
Price:: USD 1.00-100.00 / piece
Minimum order quantity: 1 piece
Supply Ability: 100000 piece / Month
Country of Origin: Shenzhen

Quantity:

Product Description

Place of Origin:CN;GUA
Output Power:301 - 400W
Output Type:Single
Output Voltage:5V 12V 24v
Brand Name:ETOP
Model Number:HPS-U251SXXA
Input Voltage:90VAC-132VAC/180-264VAC
Output Frequency:47-63hz
Output Current:40A 20A 10A
Dimensions:199X99x50mm
Output:5v/60a 12v/29a 24v/10a 27v/13a 38v/9.7a
Rated Power Output:240w
Protection:Short Circuit/Over load/Over Voltage
Tol:1%
Line Regulation:0.5%
Load Regulation:0.5%
Effi:87%
Ripple& Noise:150mvp-p
Warranty:2 years

Product Description

shenzhen enclosed type 0-60v 10a dc power supply 24v 14.6a smps

Features:

1.Single output voltage enclosed type;

2.Widely used in different field;

3.Provide customizing service;

4.Protections:Short circuit/Over load/Over voltage/ Over temp;

5.3 years warranty;

6. Class I power(with earth pin);

7.Passed CE ROHS CCC FCC test;

8. 100% full load burn-in test.

Parameters:

MODEL	DC VOLTAGE	RATED CURRENT	RATED POWER	RIPPLE & NOISE (max.)	VOLTAGE ADJ. RANGE	EFFICIENCY (Typ.)
HPS-U251S5A	5V	40A	200W	150mVp-p	4~6.5V	84%
HPS-U251S12A	12V	20A	240W	l8OmVp-p	10~14.5V	87%
HPS-U251S24A	24V	10A	240W	200mVp-p	22.5~26.5V	88%

OUTPUT	VOLTAGE TOLERANCE	±1.0%
	LINE REGULATION	±0.5%
	LOAD REGULATION	±0.5%
	SETUP, RISE TIME	1000ms,50ms/230VAC 1000ms,50ms/115VAC(at full load)
	HOLD UP TIME (Typ.)	20ms/230VAC 16ms/115VAC(at full load)
INPUT	VOLTAGE RANGE	90~132VAC / 180 264VAC 254~370VDC
	FREQUENCY RANGE	47~ 63Hz
	AC CURRENT (Typ.)	7A/115VAC 4A/230VAC
	INRUSH CURRENT (Typ.)	40A/115VAC 60A/230VAC
	LEAKAGE CURRENT	< 3.5mA/ 240VAC
PROTECTION	OVERLOAD	105 ~ 150% rated output power
	OVERLOAD	Protection type : Constant current limiting, recovers automatically after fault condition is removed
	OVER TEMPERATURE	85°C±5~(3.3~7.5V); 80°CC±5°C(l2V); 75°C±5°C(l5~48V)(TSW1Detect on case)
	OVER TEMPERATURE	Protection type : Shut down O/P voltage, recovers automatically after temperature goes down
FUNCTION	FAN ON/OFF CONTROL(Typ.)	RTH2≥50°CFAN ON,45°C FAN OF{3.3~7.5V)
		RTH2≥55°C FAN ON,50°C FAN OF(12~48V)
ENVIRONMENT	WORKING TEMP.	-10~60°C (Refer to output load derating curve)
	WORKING HUMIDITY	20~90% RH,non-condensing
	STORAGE TEMP., HUMIDITY	-20~85°C , 10~95% RH
	TEMP. COEFFICIENT	±0.03%/°C(0~50°C)
	VIBRATION	10 ~ 500Hz, 3G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMC	SAFETY STANDARDS	UL60950-1 approved
	WITHSTAND VOLTAGE	I/p-0/P: 3KVAC I/p-FG: 1.5KVAC 0/p-FG: 0.5KVAC
	ISOLATION RESISTANCE	I/P-0/P, I/P-FG, 0/P-FG: 100M Ohms / 500VDC / 25°C/ 70% RH
	EMC EMISSION	Compliance to EN55022(ClSPR22)ClassA
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024, light industry level, criteria A
OTHERS	MTBF	≥ 234.3K hrs. MlL-HDBK-217F(25°C)
OTHERS	DIMENSION	21511.550mm (LWH)
