- Appearance dimensions:::115*49*27mm
- Certification:CE FCC ROHS
- Warranty:2 Years
- Input:100-240VAC 50/60Hz
- Packing:White Box + Carton
- Payments:T/T
- MOQ:500
- Type:Constant Voltage
- Application:Home appliance
- Output Power:1 - 50W
- Output Type:Single
- Output Voltage:+24Vdc
- Place of Origin:CN;GUA
- Brand Name:POWERPF
- Model Number:HPS-U025S24
- Input Voltage:100VAC-240VAC
- Output Frequency:50/60HZ
- Output Current:1A

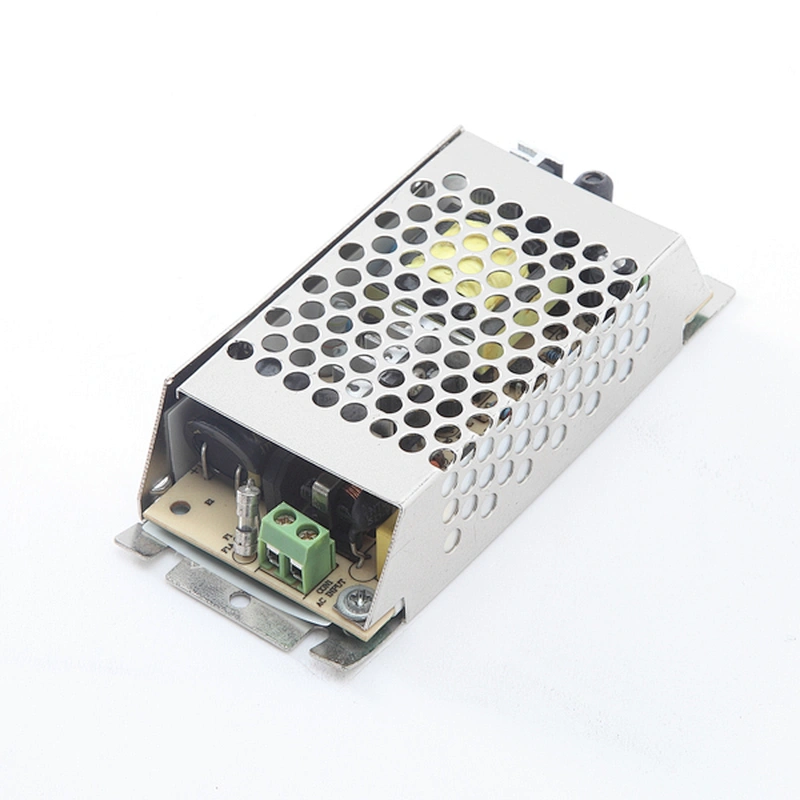

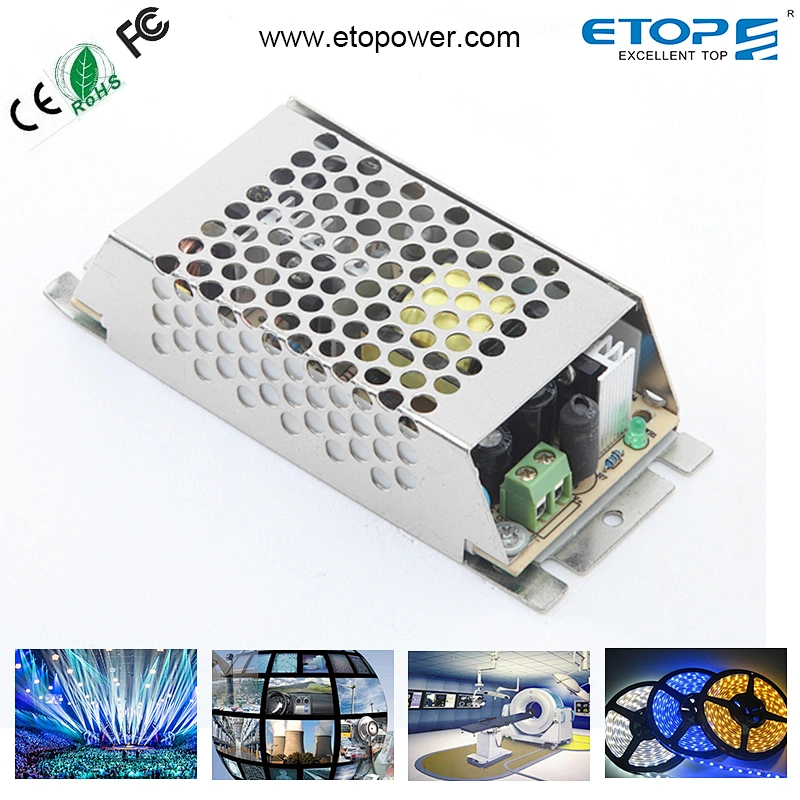

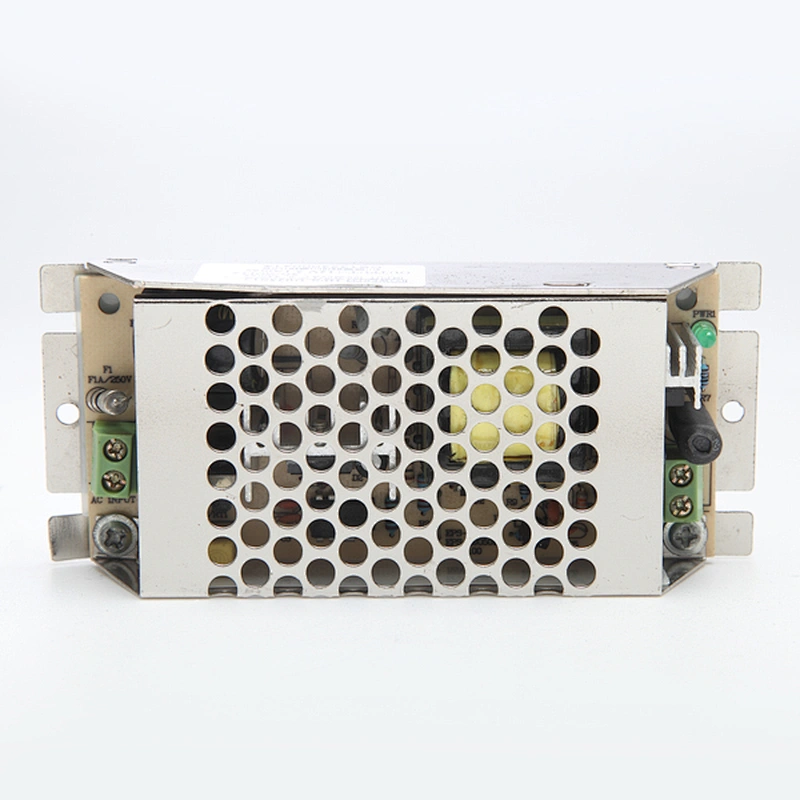

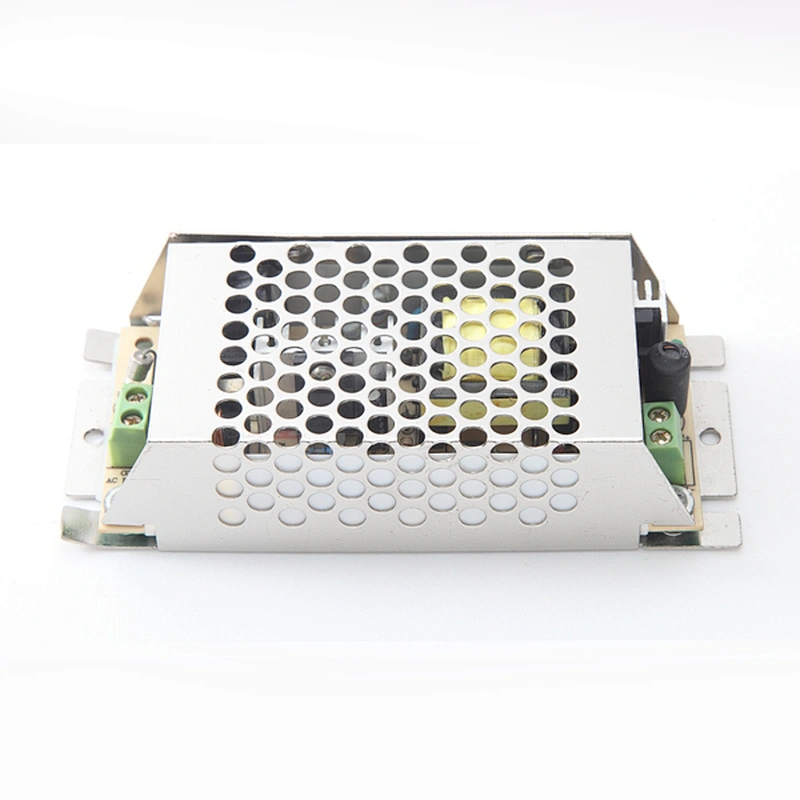

Reliable triac dimmable led drivers 24v power supply
Model | HPS-U025S24 | |
Input | Input Voltage(V) | 100VAC-240VAC |
Input Current (A) | 0.35A Max | |
Frequency (Hz) | 47Hz–63Hz | |
Efficiency | 75% Typ(230VACFull Load) | |
Inrush current(A) | Cold star, <40A/230VAC | |
Leakage current(mA) | <3mA/240VAC | |
Output | Output Voltage(V) | +24Vdc |
Voltage Regulation | 3% | |
Output Current(A) | 1A | |
Current Range (A) | 0~1A | |
Rated Power(W) | 24W | |
Start time, hold-up time(ms) | Ton≤1000ms,Td≥20ms @230Vac Full Load | |
Rise time(ms) | Typ:20ms @230Vac Full Load | |
Ripple/Noise(mVp-p) | 240mVp-p | |
Environment | working Temperature (°C) | -20°C - +50°C(refer derating curve) |
Storage Temperature(°C) | ‘-20°C - +60°C | |
Humidity(%) | 20% - 90% RH non condensing | |
Safety/ EMC | Withstand voltage(VAC) | I/P-O/P:3KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min |
Safety Standard | EN/UL60950-1,GB4943 | |
EMC Standard | EN55022 Class B,EN61000-4-2,3,4,5,6,8,11 GB17626.5 Level3 | |
Protection | Over voltage Protection | >115%-135% Rated output voltage |
Over load Protection | >105%-150% ,Auto recovery | |
Short circuit Protection | Latched | |
Over Temperature Protection | Auto reboot | |
Others | MTBF | ≥200K hrs 25°C |
Dimension L*W*H(mm) | 115*49*27mm | |
Weight g/pcs | g/pcs | |
Specifications:
1.MOQ: 500pcs
2.Capacity: 100,000pcs/month
3.Lead time: 15 working days
4.Payment: TT, L/C.
5.Sample order is available
6.Packaging: Export standard carton box
7.OEM,ODM
Certifications

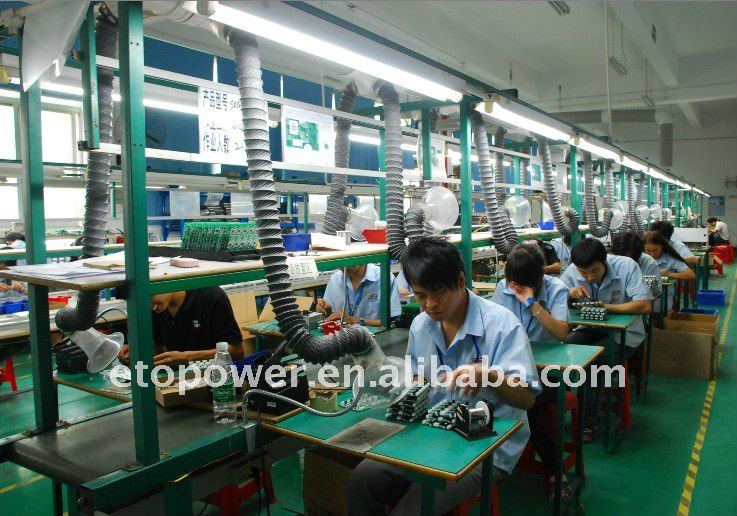

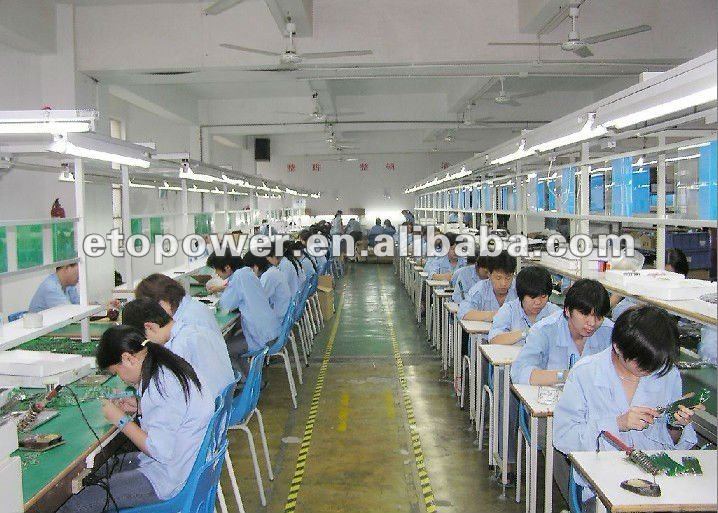

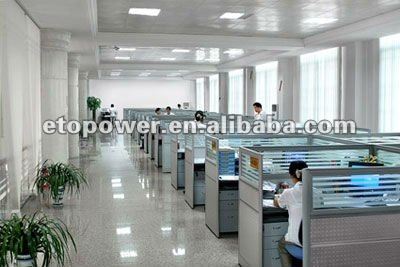

Workshop & Office
