- Place of Origin:CN;GUA
- Output Type:Single
- Output Power:12W-15W
- Output Voltage:3.3V 5V 12V 15V 24V
- Brand Name:ETOP
- Model Number:HPS-U015SXXA
- Input Voltage:90-264VAC
- Output Frequency:47-63Hz
- Output Current:4A 3A 1.3A 1A 0.7A
- Protection:short circuit over load over voltage
- Efficiency:more than 80%
- Dimension:127*76*33mm
- Leakage current:<0.75mA/240VAC
- Withstand voltage:EN60950-1,CCC GB4943,J60950-1
- Safety Standard:I/P-0/P: 1.5KVAC I/P-PG: 1.5KVAC
- EMC Standard:En55022 classB EN61000-3-2.3 EN61000-4-2, 3,4,5, 6, 8, 11
- Certification:CE, ROHS, TUV, SAA, EMC, LVD
- Warranty:2years
- Over load:>105%-150%, hiccup mode, Auto recovery

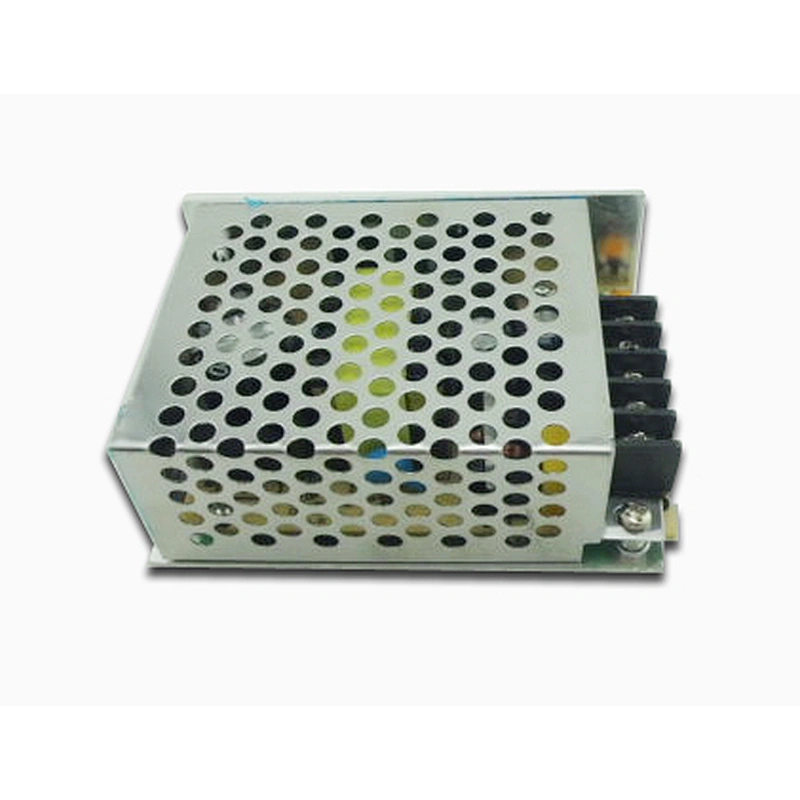

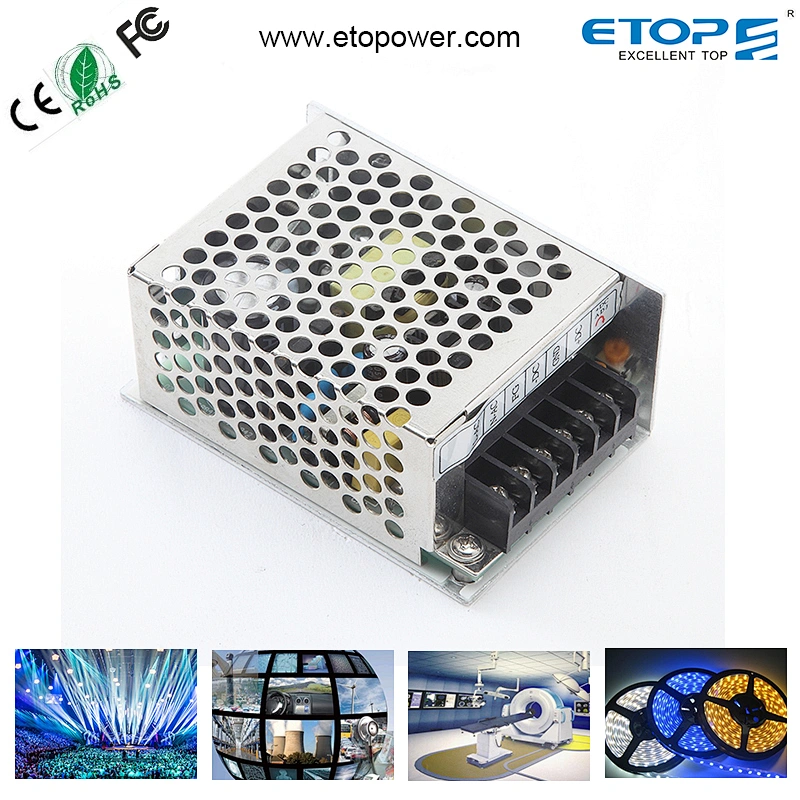

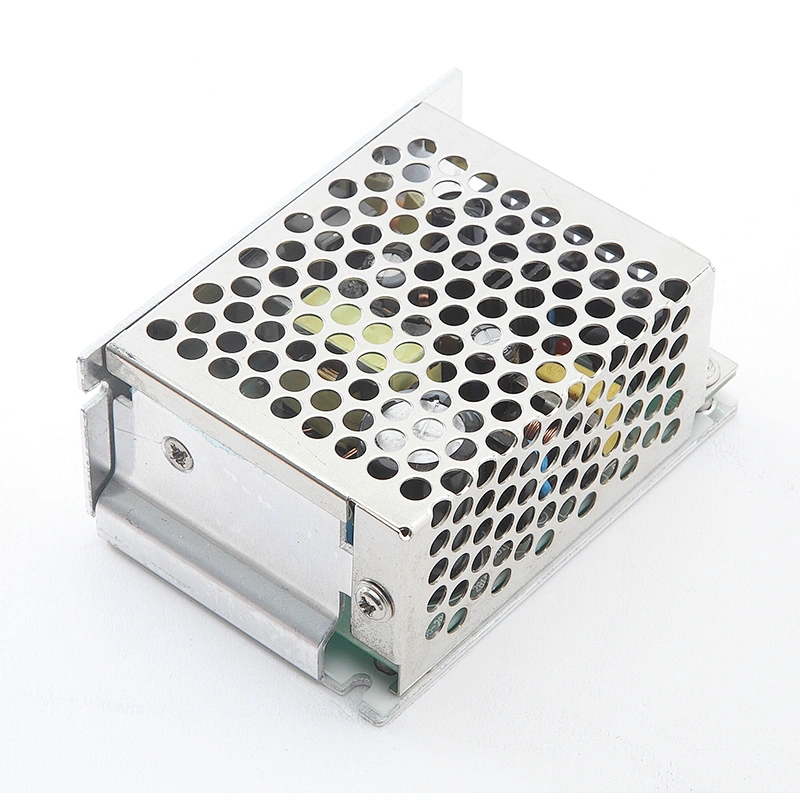

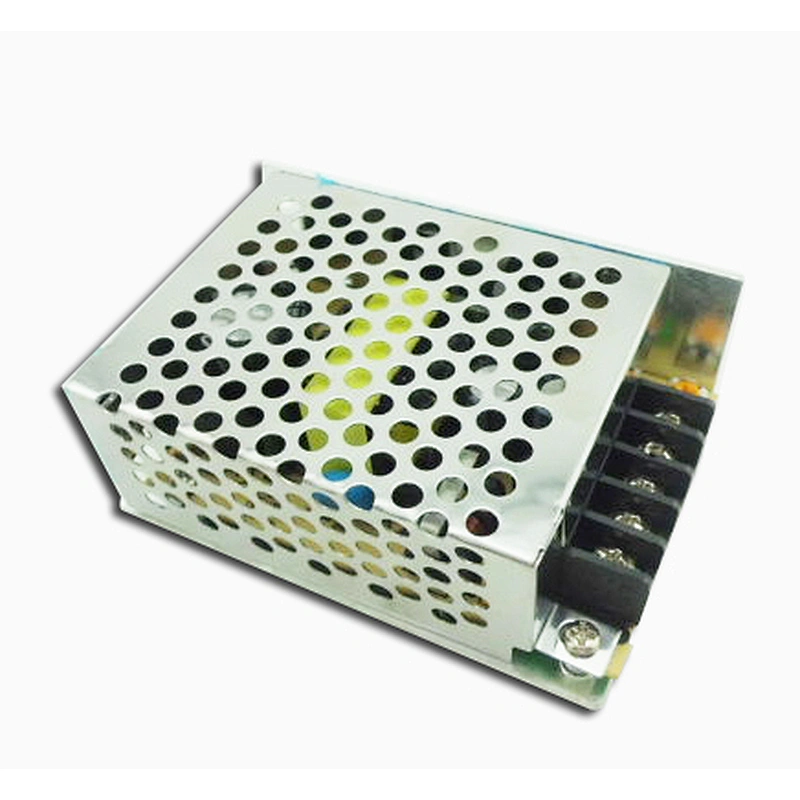

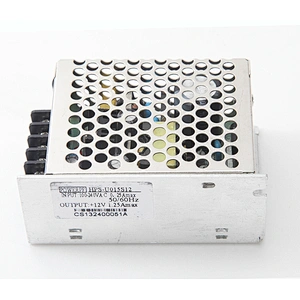

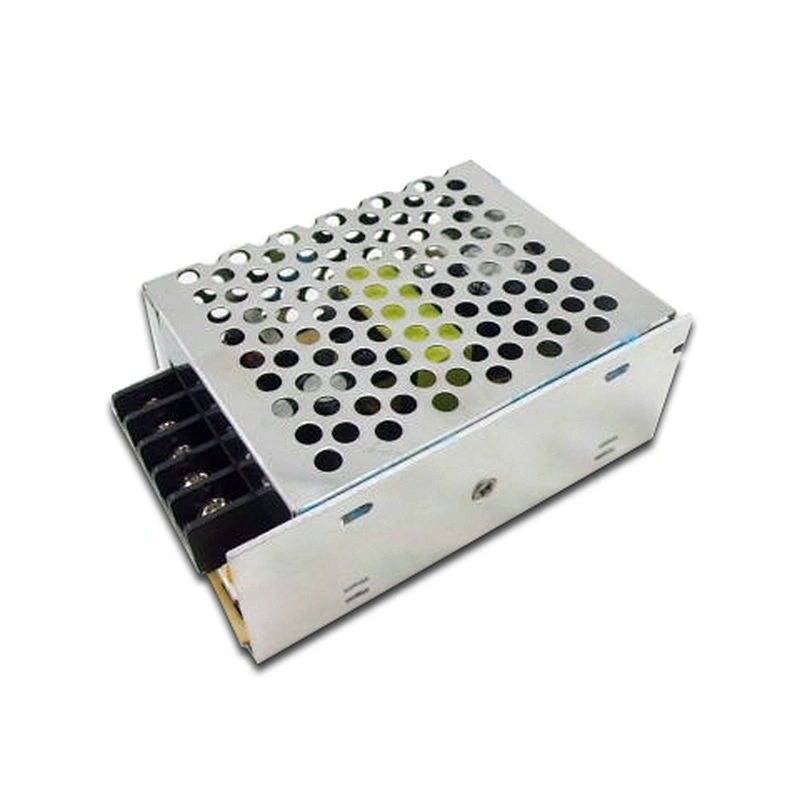

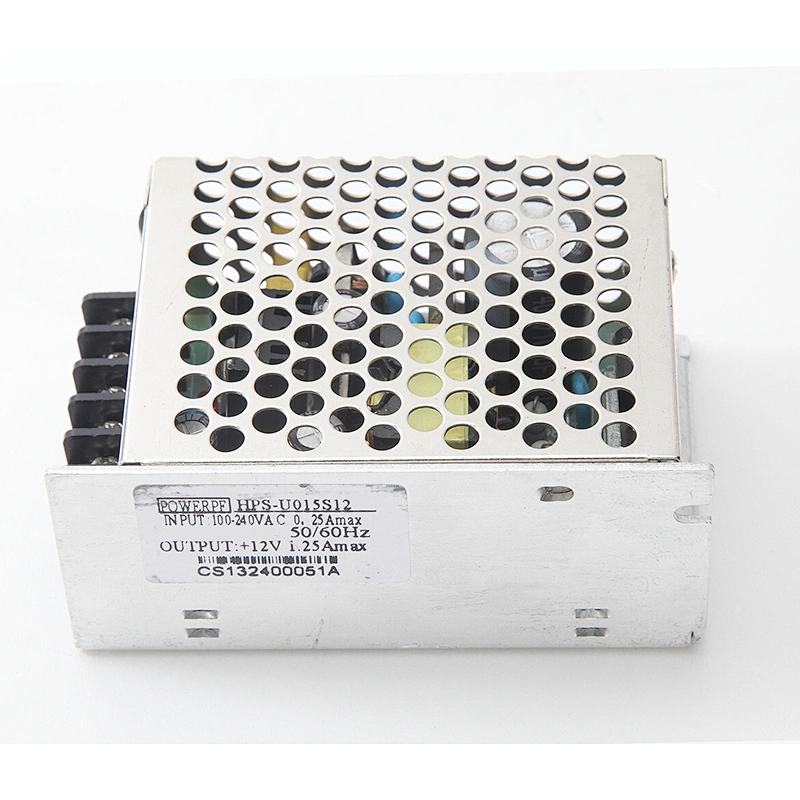

Universal AC input12w-15w enclosed type switching Power Supply with meta housing
Features:
·Universal AC input/Full range
·Protections: Short circuit / Overload / Over voltage
·Cooling by free air convection
·100% full load burn-in test
·2 years warranty
Parameter list:
| MODEL | HPS-U015S05A | HPS-U015S09A | HPS-U015S15A | HPS-U015S24A | HPS-U015S48A | |
| OUTPUT | DC VOLTAGE | 5V | 9V | 15V | 24V | 48V |
| RATED CURRENT | 3A | 1.67A | lA | 0.625A | 0.32A | |
| CURRENT RANGE | 0~3A | 0~1.6A | 0~1A | 0~0.625A | 0~0.32A | |
| RATED POWER | 15W | 15W | 15W | 0.625W | 15W | |
| RIPPLE & NOISE (max.) | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 240mVp-p | |
| VOLTAGE TOLERANCE | ± 2.0% | ± 1.0% | ± 1.0% | ± 1.0% | ± 1.0% | |
| LINE REGULATION | ± 1.5% | ± 0.5% | ± 0.5% | ± 0,5% | ± 0.5% | |
| LOAD REGULATION | ± 1.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | |
| SETUP, RISE TIME | 1000ms,30ms/230VAC 1000ms,30ms/115VAC(at full load) | |||||
| HOLD UP TIME (Typ.) | 100ms/230VAC 20ms/115VAC(at full load) | |||||
| INPUT | VOLTAGE RANGE | 100-240VAC 120-370VDC | ||||
| FREQUENCY RANGE | 60Hz | |||||
| EFFICIENCY (Typ.) | 79% | 81% | 81% | 85% | 82% | |
| AC CURRENT (Typ.) | 0.35A/115VAC 0.25A/230VAC | |||||
| INRUSH CURRENT (Typ.) | COLD START:45A | |||||
| LEAKAGE CURRENT | < 2mA/ 240VAC | |||||
| PROTECTION | OVERLOAD | Above 105% rated output power | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 5.75 ~6.75V | 13.8~16.2V | 17.25 ~ 20.25V | 27.6~32.4V | 55.2~64.8V | |
| Protection type : Shut off | ||||||
| OVER TEMPERATURE | U1 Tj 140℃ typically (U1) detect on main control IC | |||||
| Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | ||||||
| ENVIRONMENT | WORKING TEMP. | 0~60℃ | ||||
| WORKING HUMIDITY | 20~90%RH,non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -20~85℃ , 10~95% RH | |||||
| TEMP. COEFFICIENT | ± 0.03%/℃( 0~45℃) | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||
| SAFETY & EMC | SAFETY STANDARDS | CE FCC ROHS CETIFICATED | ||||
| WITHSTAND VOLTAGE | I/p-0/P: 3KVAC I/p-FG: 1.5KVAC 0/p-FG: 0.5KVAC | |||||
| ISOLATION RESISTANCE | I/P-0/P, I/P-FG, 0/P-FG: 100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| OTHERS | MTBF | ≥210K hrs. M lL-HDBK-217F (25℃ ) | ||||
| DIMENSION | 78*51*28mm (L*W*H) | |||||
Certificates : We get FCC,CE,CCC,UL certificatese for our products.
Company Profile:
Our Services:
Reliable and capable supplier
* The leading manufacturer of PSU in China
* Over 15 years of manufacturing experience.
* Safety and Health at Work
* Perfect and professional design,Supported OEM&ODM Service
* High-quality raw material
* Strict quality testing
* Strong research & development and design
* Excellent after sales service
Why choose Etop to be your supplier?
1, 10 years focus on the Power Supply Research Development and Production;
2, Providing service for 3000 customers, including 2000 in China mainland, 1000 in overseas markets all over the world;
3, High reliability and good stability,100% burn-in test.

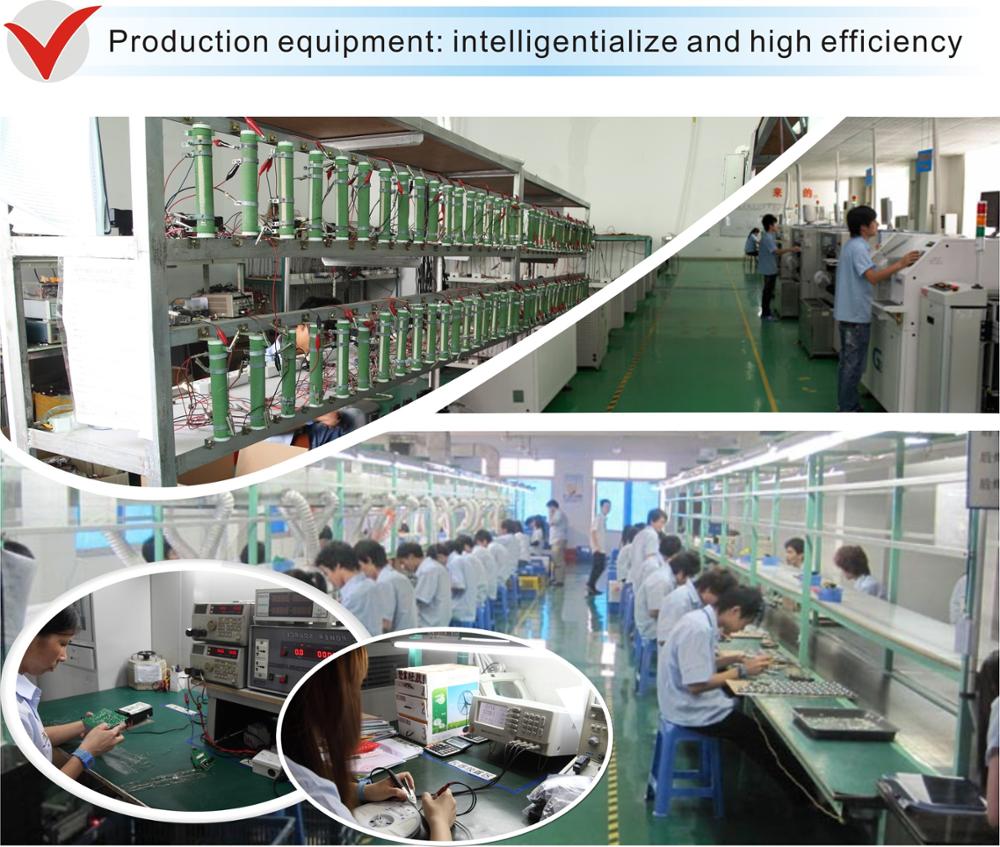

4, To control the quality, we have our own factory and 4 production lines, this also for the power supply can be stable and reliable;
5, Complete certification, CE, RoHS, EMC, FCC etc., which small factory often lack of;
6, After-sale guaranteed, real integrity transactions,3 Year warranty
7, Strong R&D team, Could do OEM&ODM service by your need.provide excellent solution for the power supply.
8, Flexible and fast delivery, bulk orders usually delivery within two weeks, General small batch orders can be arranged delivery
within 3 days if have finished products in stock.
