- Place of Origin:CN;GUA
- Output Type:Single
- Output Power:120W
- Output Voltage:+12Vdc +24Vdc +36Vdc +48Vdc
- Brand Name:ETOP
- Model Number:HPS-U121SxxL
- Input Voltage:100-240VAC
- Output Frequency:47-63Hz
- Output Current:10A 5A 3.3A 2.5A
- Dimession:129*98*38mm
- Ripple&Noise:120-480mVp-p
- Working tem.:0~+40 degree
- Efficiency:80%
- Protection:Short-circuit,Over-voltage,Over-Load,Over-temp
- Material:Aluminium
- Weight:0.55kg
- Application:led, led strip,led lamp etc
- Certification:CE ROHS
- Warranty:2 years
Welcome to ETOP !

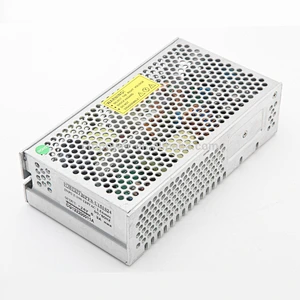

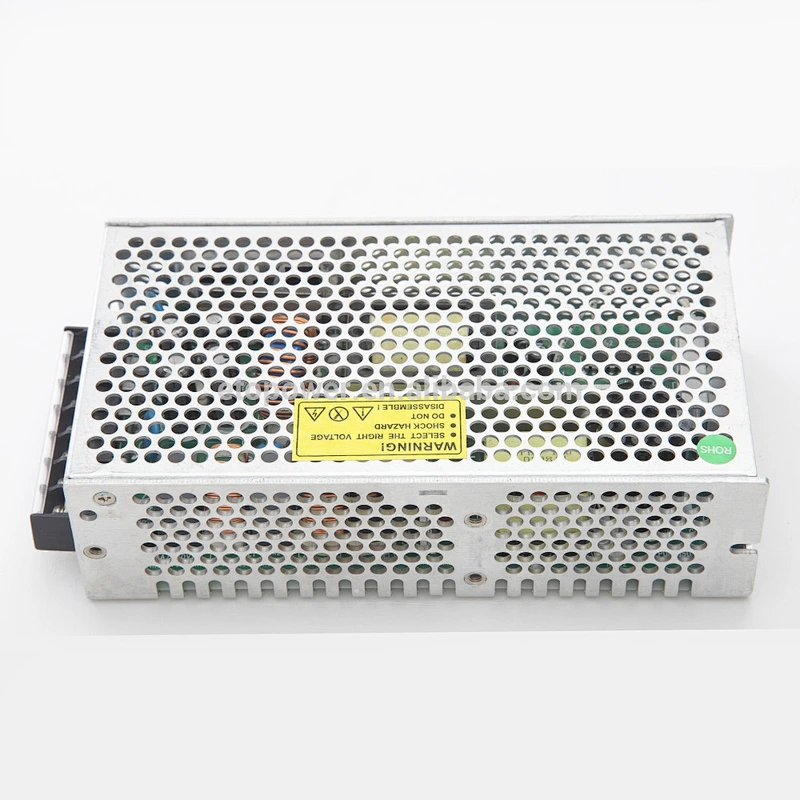

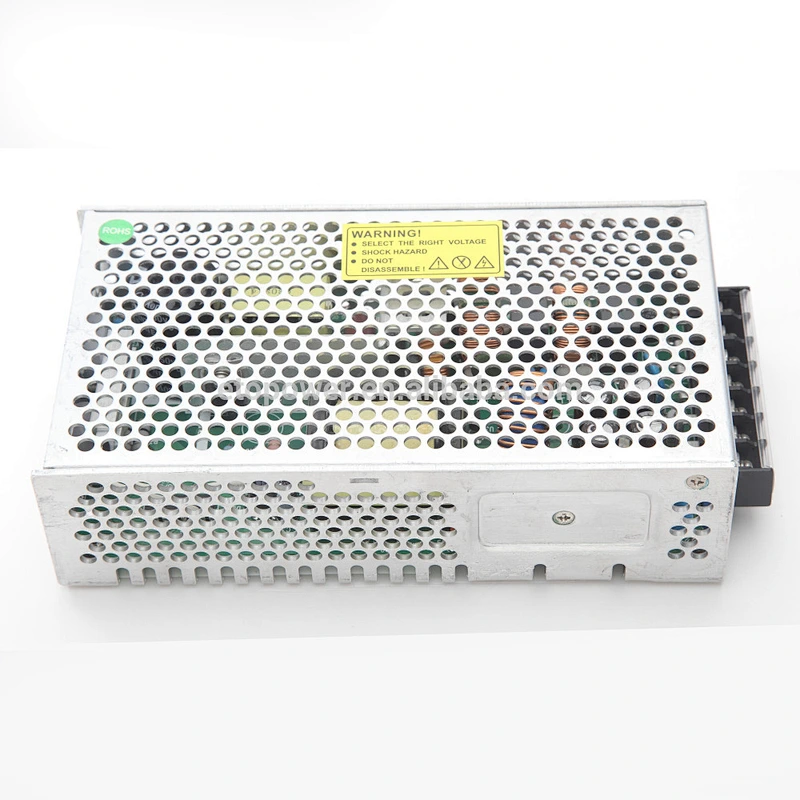

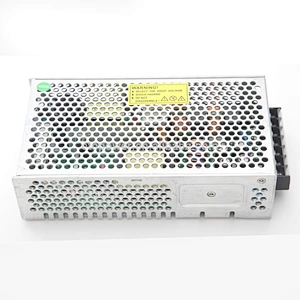

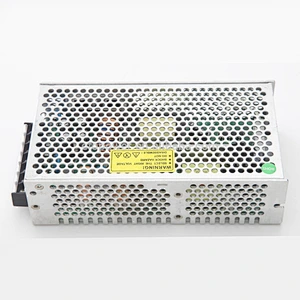

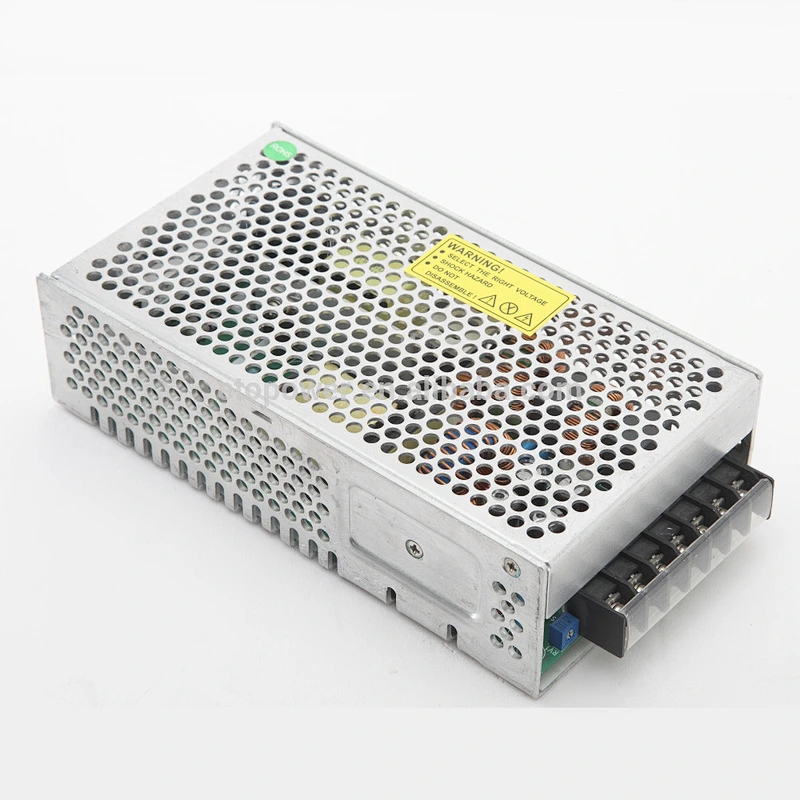

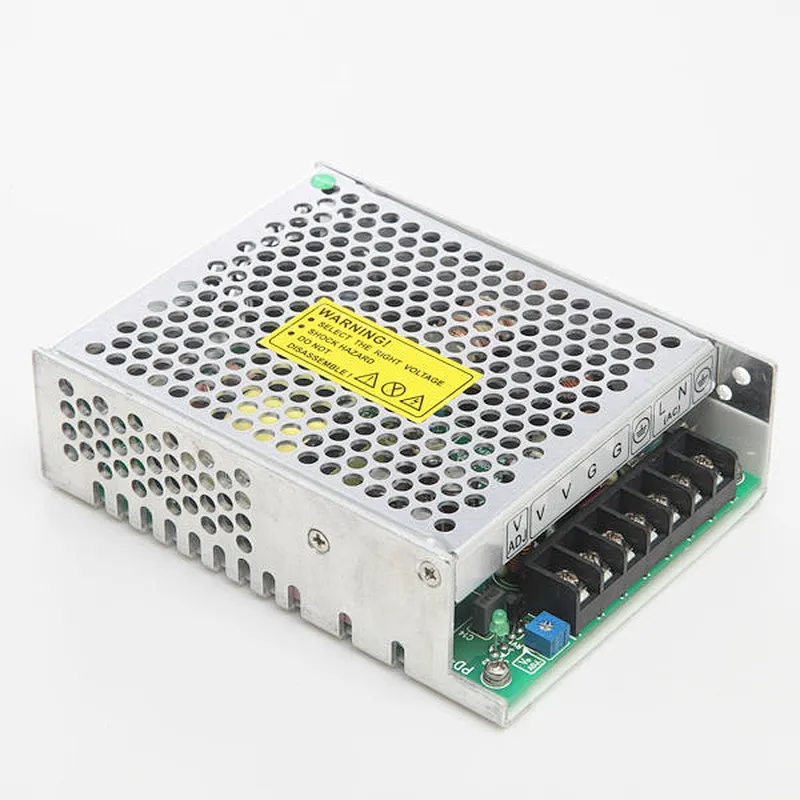

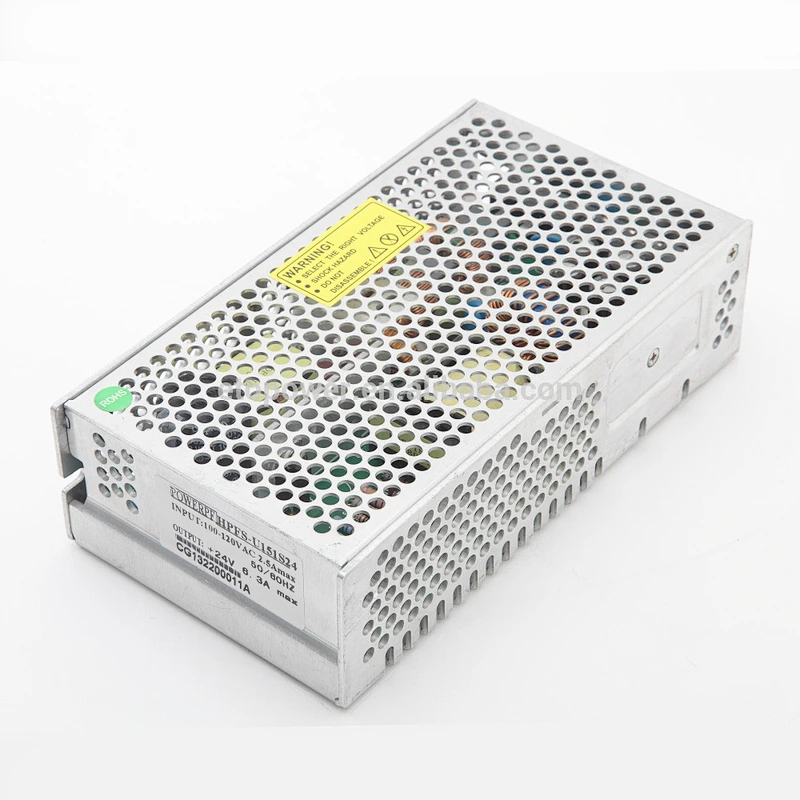

High Performance CE Approval 120W 12V 10 Amp Power Supply S120-12 SMPS
Feature:
1.MOQ: 100PCS, sample order is available
2.Production Capacity: 800pcs/day , 3000pcs/week
3.Payment:T/T, Western Union, Paypal, Escromer ...
4.Lead time: 3-7days for sample, 15-20days for mass production
5.Warranty:2 years warranty
6.Shipping method:DHL,UPS,FEDEX,TNT,EMS,Hongkong/china post, by air,by sea etc
7.Package: OPP bag or poly bag, white box, artistic bag, by customer' requirement.
Specification :
| Model | HPS-U121S12L | |
| Input | Input Voltage(V) | 110/240VAC |
| Input Current (A) | 1.40A Max | |
| Frequency (Hz) | 47Hz–63Hz | |
| Efficiency | 80% Typ(230VACFull Load) | |
| Inrush current(A) | Cold star <80A/230VAC | |
| Leakage current(mA) | <0.75mA/240VAC | |
| Output | Output Voltage(V) | 12Vdc |
| Voltage Regulation | 3% | |
| Output Current(A) | 10A | |
| Current Range (A) | 0-10A | |
| Rated Power(W) | 120W | |
| Start time, hold-up time(ms) | Ton≤3000ms,Td≥20ms @230Vac Full Load | |
| Rise time(ms) | Typ:80ms @230Vac Full Load | |
| Ripple/Noise(mVp-p) | 200mVp-p | |
| Environment | working Temperature (°C) | 0°C - +40°C |
| Storage Temperature(°C) | ‘-20°C - +80°C | |
| Humidity(%) | 20% - 90% RH non condensing | |
| Safety/ EMC | Withstand voltage(VAC) | I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min |
| Protection | Over voltage Protection | >115%-135% Rated output voltage |
| Over load Protection | >105%-150% Auto recovery | |
| Short circuit Protection | Latched | |
| Over Temperature Protection | Auto reboot | |
| Others | Dimension L*W*H(mm) | 129*98*38mm |
Our product series include: industrial power supply, power adaptor, LED driver etc., which are widely used in communication, power electronics, automation control, railway, military industry,medical care and a good deal of others.
Tips:Take example for this model, other model products and OEM service is welcomed
1.Good and High efficiency Team:our company have sales team,R&D team,purchase team,PMT team,production team and quality team etc.Our teams works hard together with highefficiency,and our teams have the same target--Excellent quality,the highest service !
2.OEM&ODM Services: Our company have professional engineers,so we cancustomize products ccording to your detailed requirements,your samples or your ideas.
3.High efficiency automatic SMT machine and production process:it is fast,high-efficient and standard.Professional surface-mounting and trough-hole soldering technology.-our production process must through below steps to guarantee good quality Inspecting Raw Materials-Auto machine to SMT--Plug-in module--Pass wave-soldering (Auto solder)--Angle cutter cutting angles--Post-solder &Assembling--QC Inspection--FQC Testing Products--Ageing --Quality department spot-check goods--Packing--Shipping out.

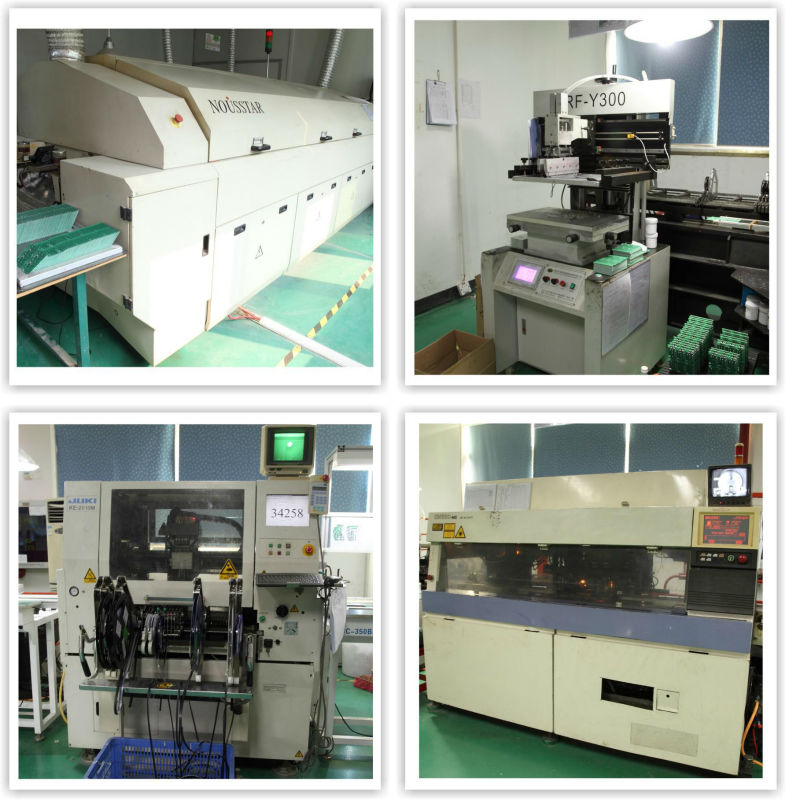

Machine of SMT
Certification Of ETOP
Why us
1.Experience: ETOP is A professional factory that specialized in power supplies more than 10 years.have strong R&D team to support OEM service
2.Capable:ETOP is capable to manufacture different kinds of power supplies by customer' requirement, could be used in many field and exploring customers to win the market.
3.Quality :ETOP Factory have machine and complete production line for SMT sodering , high quality components to assembly power pcb board,100% burn in test, AOI test,
4.Protect your interest: ETOP will update new products and price list for promotion, 3 years warranty, make best solution of power. Turkirish angent to help you order.
