- Place of Origin:CN;GUA
- Output Power:51 - 100W
- Output Type:Single
- Output Voltage:5V 12V 15V 24V 48V dc
- Brand Name:ETOP
- Model Number:HPS-U075SxxA
- Input Voltage:100-240VAC
- Output Frequency:DC
- Output Current:14A 6.2A 5A 3.2A 1 .6A
- Ripple&Noise:120mVp-p
- MTBF:≥ 1207.4K hrs. ( 25℃ )
- Application:Industrial Automation
- Type:Constant Voltage Mode Power
- Warranty:3 Years
- Certification:CE FCC ROHS
- Input:100-240VAC 50/60Hz
- Payments:T/T
- MOQ:500pcs
- Packing:White Box + Carton

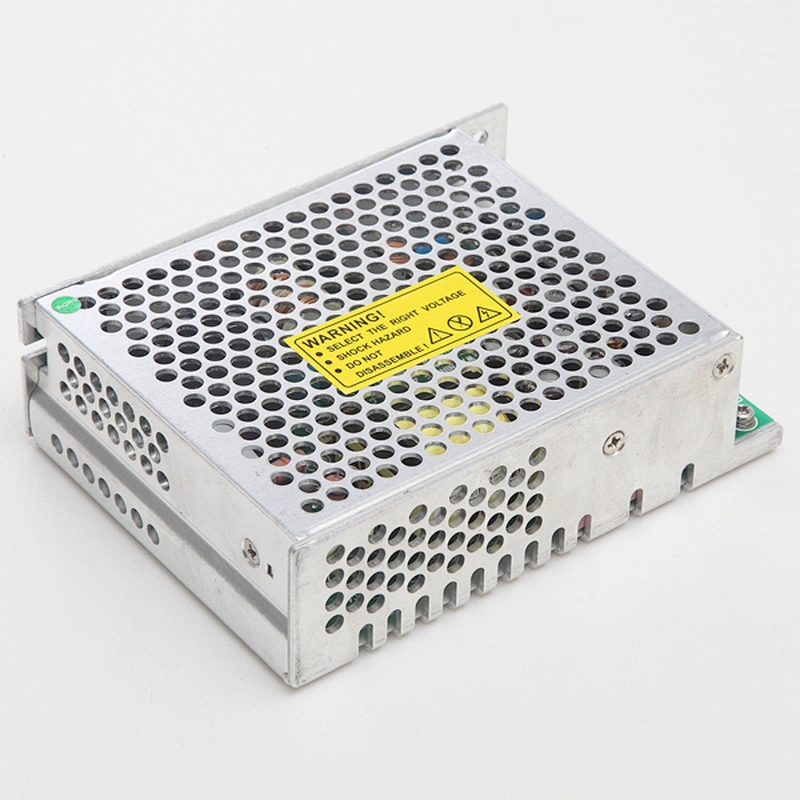

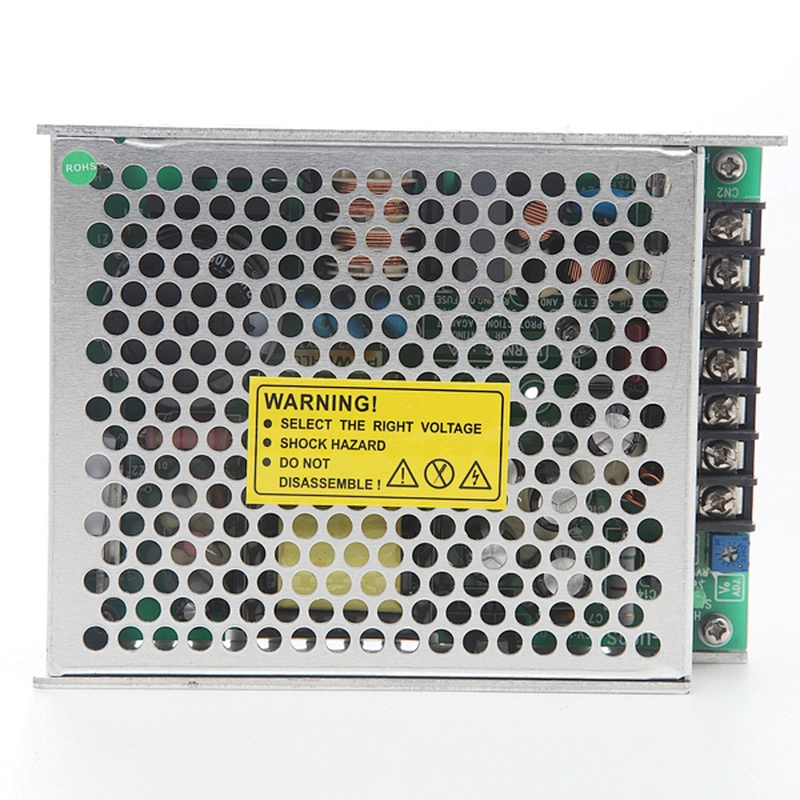

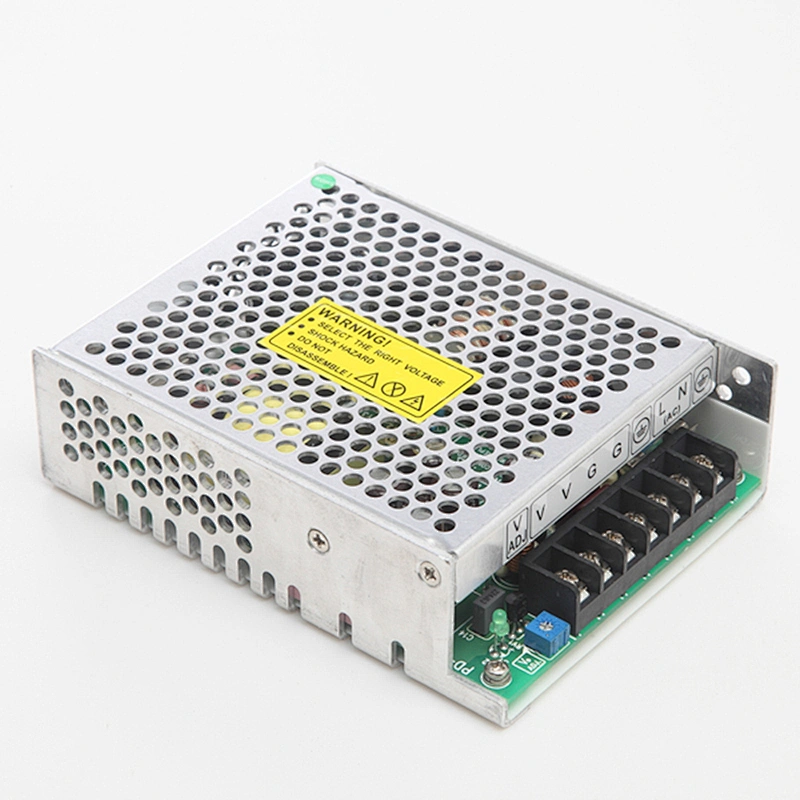

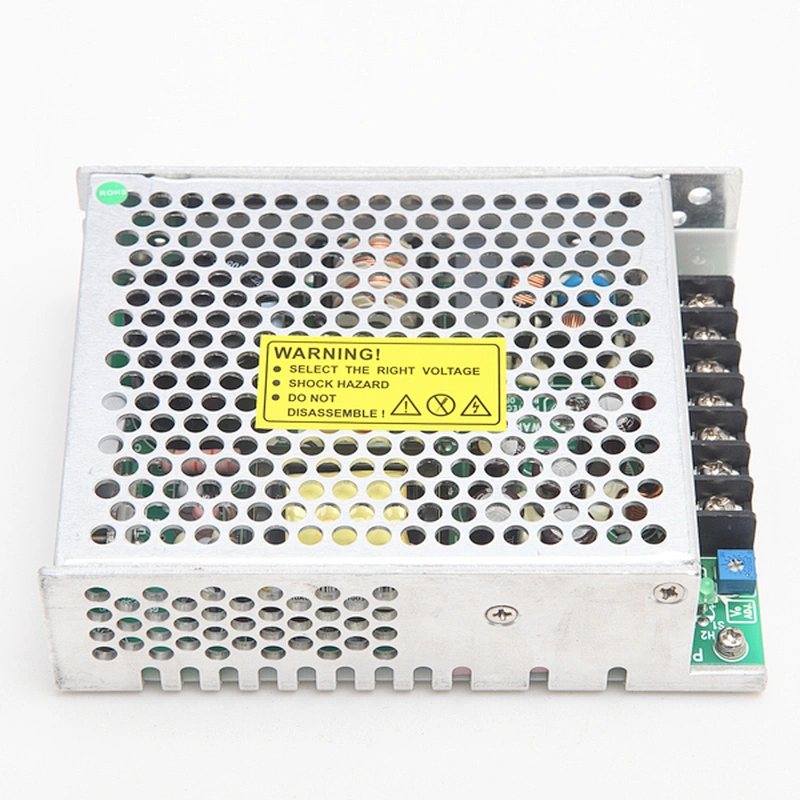

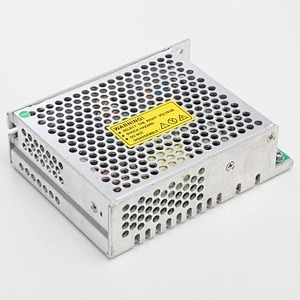

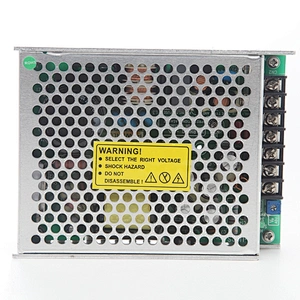

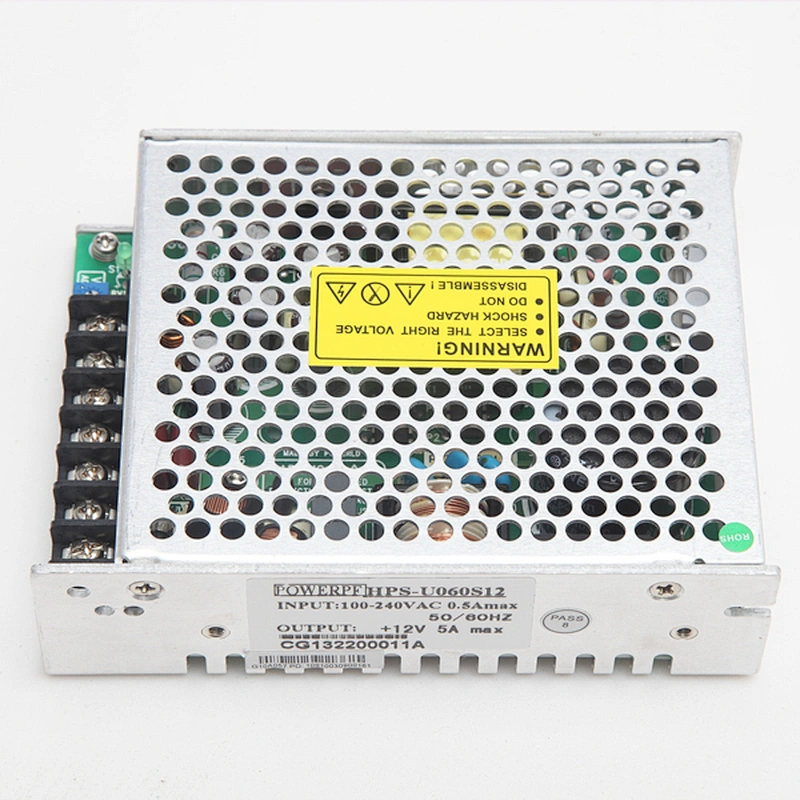

Industrial Switching Electroplating 14.4v Power Transformer Supply
1.Feature:
· Universal AC input/Full range(90V-264V)
· Single output voltage enclosed type
· Widely used in different field.
· Provide customizing service
· Protections:Short circuit/Over load/Over voltage/ Over temp
· 3 years warranty
· Class I power(with earth pin)
· Passed CE ROHS CCC FCC test
· 100% full load burn-in test
· Use Imported machine to test,such as Chroma machine
· Lead time: 15 working days after receiving deposit
· Payment: TT,L/C,Paypal etc,
· Sample is available
· L/T of sample :7 days
2.Parameter table :
| MODEL | HPS-U075S5A | HPS-U075S12A | HPS-U075S15A | HPS-U075S24A | HPS-U075S48A | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 14A | 6.2A | 5A | 3.2A | 1 .6A | |
| CURRENT RANGE | 0~l4A | 0~6.2A | 0~5A | 0~3.2A | 0~1.6A | |
| RATED POWER | 70W | 74.4W | 75W | 76.8W | 76.8W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | 240mVp-p | |
| VOLTAGE ADJ. RANGE | 4.75~5.5V | 10.8~13.2V | 13.5~16.5V | 21.6~26.4V | 43.2~52.8V | |
| VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0,5% | ±0.5% | |
| LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 500ms,30ms/230VAC l200ms,30ms/115VAC(at full load) | |||||
| HOLD UP TIME (Typ.) | 50ms/230VAC lOms/115VAC(at full load) | |||||
| INPUT | VOLTAGE RANGE | 100-240Vac | ||||
| FREQUENCY RANGE | 47~63Hz | |||||
| EFFICIENCY (Typ.) | 77% | 82% | 83% | 86% | 87% | |
| AC CURRENT (Typ.) | 1.5A/115VAC 0.9A/230VAC | |||||
| INRUSH CURRENT (Typ.) | 45A COLD START | |||||
| LEAKAGE CURRENT | < 2mA/ 240VAC | |||||
| PROTECTION | OVERLOAD | rated output power 105%~150% | ||||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| OVER VOLTAGE | 5.75~6.75V | 13.8~16.2V | 17.25~20.25V | 27.6~32.4V | 55.2~64.8V | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||
| ENVIRONMENT | WORKING TEMP. | -20~60°C | ||||
| WORKING HUMIDITY | 20~90%RH,non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40~85°C , 10~95% RH | |||||
| TEMP. COEFFICIENT | ±0.03%/°C( 0~45°C) | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||
| SAFETY & EMC | SAFETY STANDARDS | UL60950-1,CB(lEC60950-1),CCCG84943 approved | ||||
| WITHSTAND VOLTAGE | I/p-0/P: 3KVAC I/p-FG: 1.5KVAC 0/p-FG: 0.5KVAC | |||||
| ISOLATION RESISTANCE | ]/P-0/P, I/P-FG, 0/P-FG: 100M Ohms/ 500VDC / 25°C/ 70% RH | |||||
| EMC EMISSION | Compliance to EN55022{ClSPR22)ClassB,EN61000-3-2,-3 | |||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-1, light industry level, criteria A | |||||
| OTHERS | MTBF | ≥ 378.2K hrs. M[ L-H DBK-217F ( 25°C) | ||||

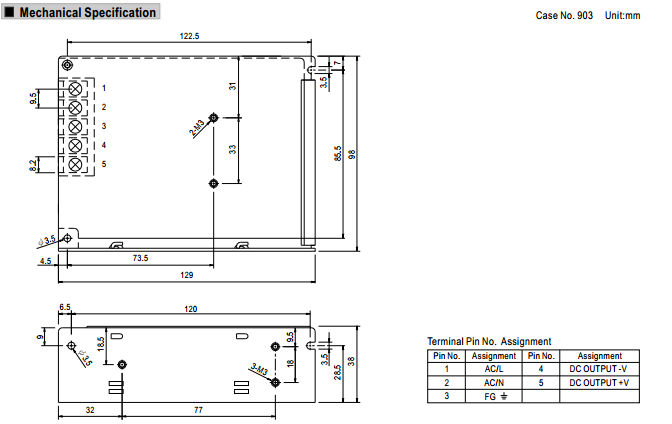

| DIMENSION | 159*97*38mm (L*W* H) | |||||

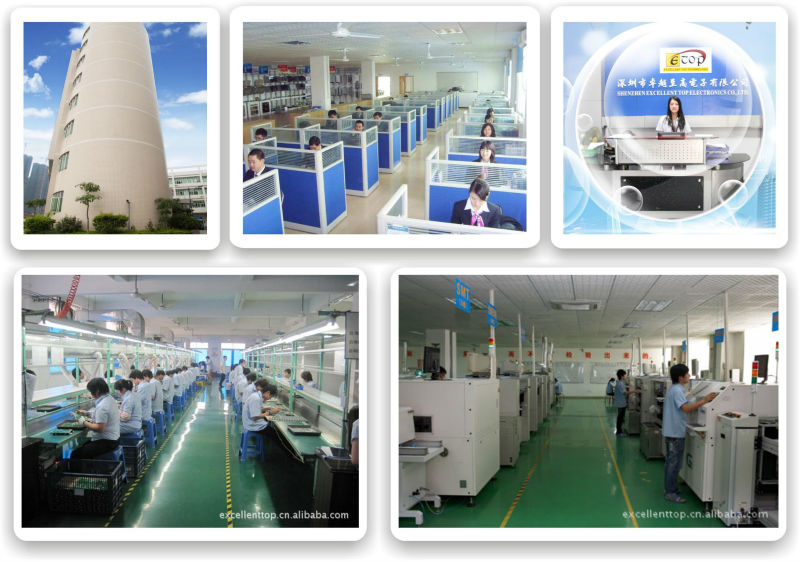

About Our Factory :
ETOP:It has got ISO9001 certification in 2002. And in 2004, we finished renewing the ISO9001:2000 quality management system certification. Moreover, ETOP passed the ISO14001 environmental management system
certification and GB/T28001 occupational health and safety management system certification in 2005.
Our Certificates:
Our products are 100% through high temperature ageing, which accords with CCC, CE, FCC,Rohs and many
other authoritative organization security authentication standard.
Advantage of our products and company:
(1) Provide customizing service:We are good at designing and developing various products.We can
customize all kinds of power supples you expect as long as you can provide us your detailed comments .

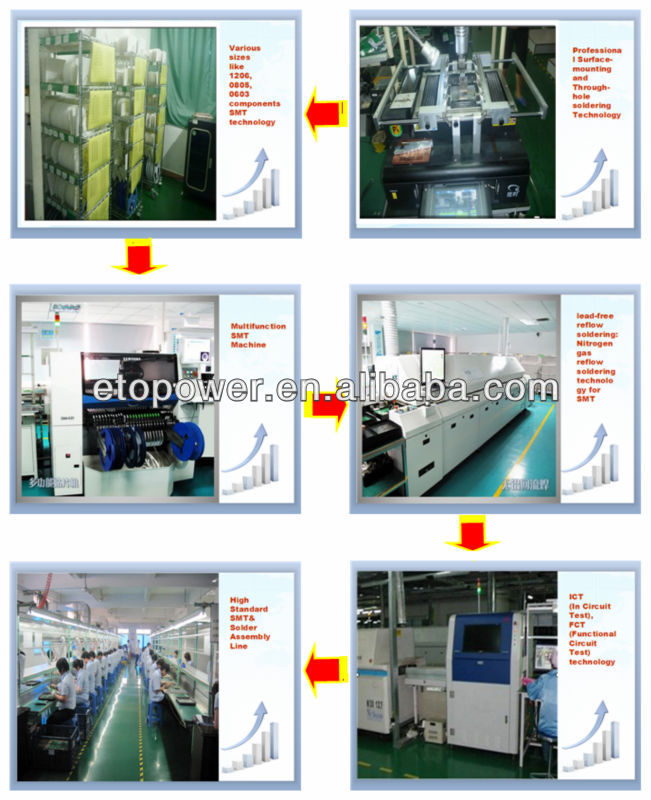

(2) SMT---High Efficiency & HighQuality: largely adopt SMT components because of its tight mechanism,
small volume and exquisite appearance.
(3) Punctual delivery and various delivery method:by sea or air, TNT, UPS, DHL, ARAMEX, EMS, FedeX
Our packaging:
with PP bag into small with box and then in to standard carton box
Our Team & Compay:
