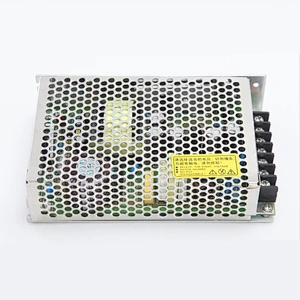

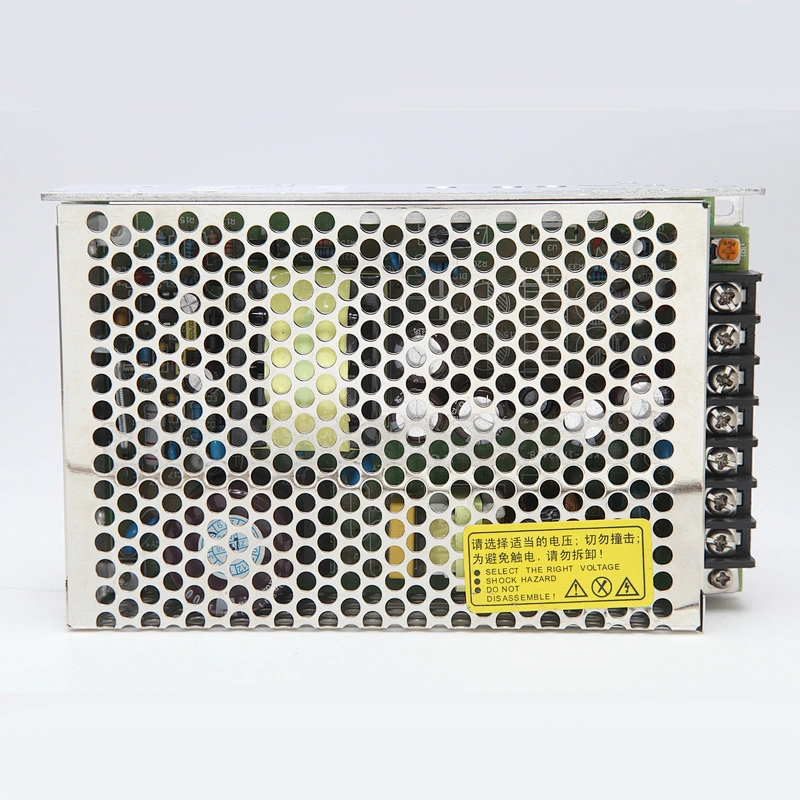

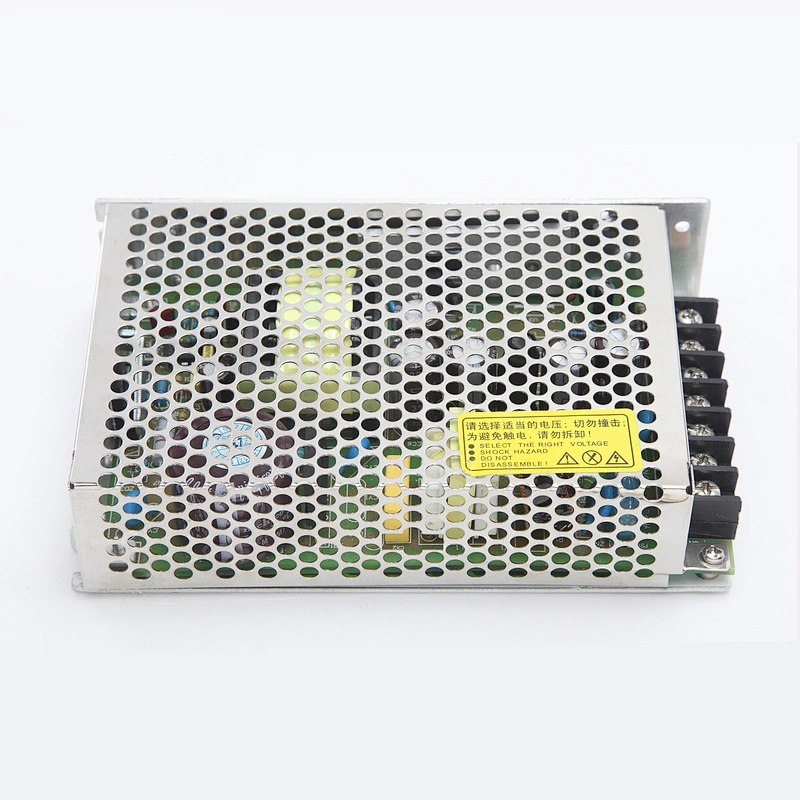

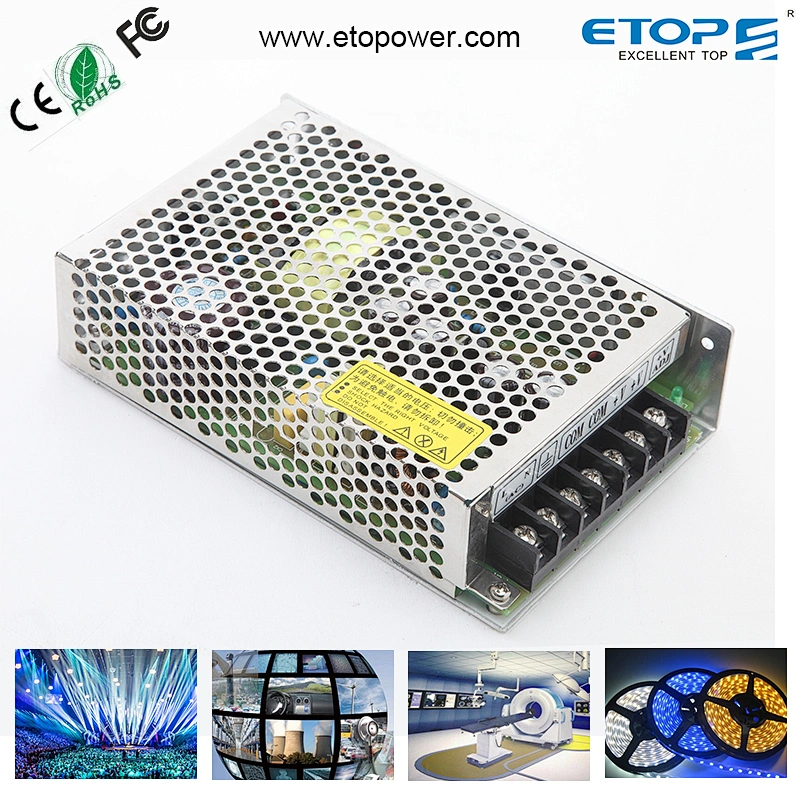

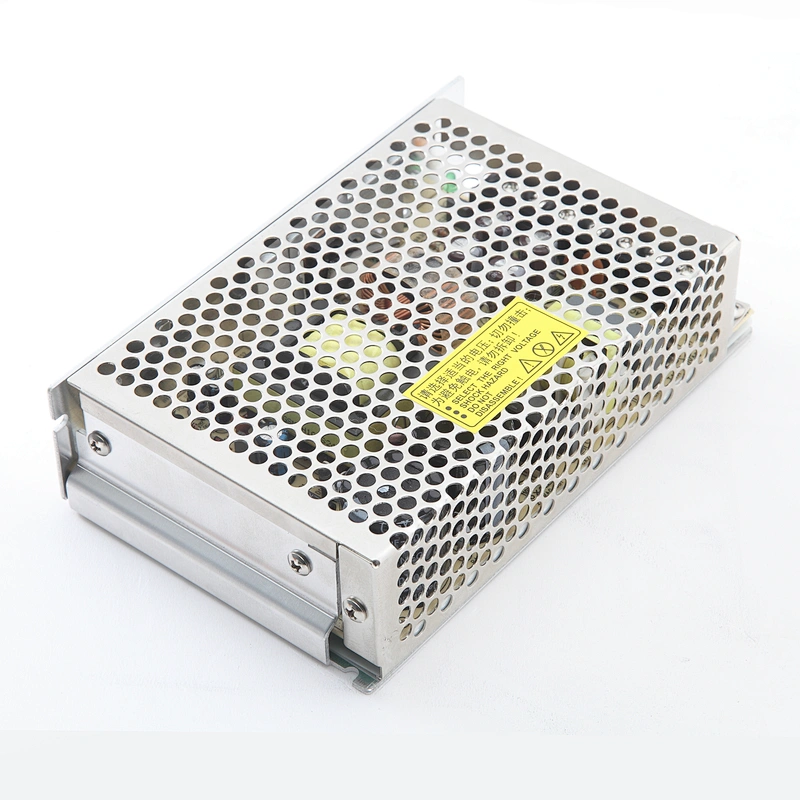

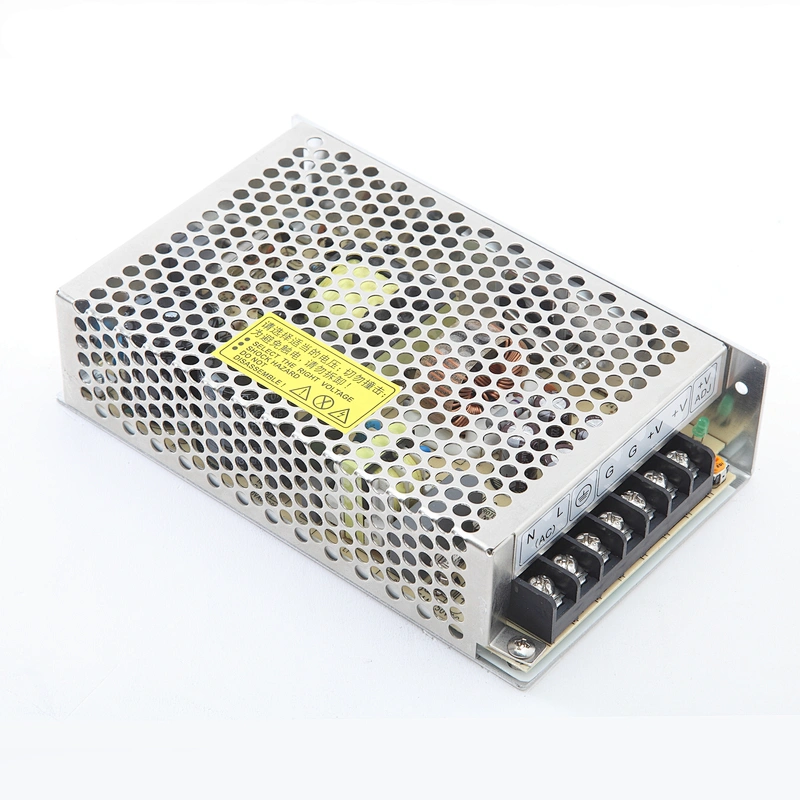

Ultra-thin meta casing power supply unit 25v 4a power supply IP20 100w LED Power Supply with 0.95 PF

Model

HPS-U101S25A

Input

VOLTAGE RANGE

90~264VAC  l27~370VDC

FREQUENCY RANGE

47~63Hz

EFFICIENCY (Typ.)

89%

AC CURRENT

lA/115VAC    0.5A/230VAC

INRUSH CURRENT (max.)

65A/230VAC

LEAKAGE CURRENT (max.)

0.75mA/ 240VAC

Output

DC VOLTAGE

l2V

RATED CURRENT

4A

CURRENT RANGE

0~4A

RATED POWER

100W

RIPPLE & NOISE (max.

100mVp-p

SETUP, RISE

lOOOms,30ms /230VAC lOOOms,30ms/ll5VAC(at full load)

HOLD UP TIME

50ms /230VAC   l5ms/ll5VAC (at full load)

Environment

WORKING TEMP.

-30~+60°C C37 C35

WORKING HUMIDITY

20~90% RH, non-condensing

STORAGE TEMP., HUMIDITY

-40~+ 85°C , 10~95% RH

TEMP. COEFFICIENT

0.03%/°C (0~50°C)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

Safety/ EMC

WITHSTAND VOLTAGE

I/p-0/P: 3KVAC I/p-FG: 1.5KVAC 0/p-FG: 0.5KVAC

ISOLATION RESISTANCE

I/P-0/P, I/P-FG, 0/P-FG: 100M Ohms/500VDC/25°C/70% RH

EMC EMISSION

Compliance to EN55022 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CNS13438 class B, GB9254 class B, GB17625.1

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A

Protection

Over load Protection

105 ~ 150% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed

Over voltage Protection

12.6~16.2V

Protection type : Shut down o/p voltage, re-power on to recover

Others

MTBF

≥ 711 Khrs MIL-HDBK-217F(25°C)

DIMENSION

125*50*31.5mm (L*W*H)

PACKING

0.28Kg
