- Dimensions:could be modified
- Warranty:2 Years
- Certification:CE FCC ROHS
- Input:100-240VAC
- Packing:White Box + Carton
- MOQ:500pcs
- Payments:T/T
- Type:Constant Voltage
- Application:Industrial Automation
- Warranty(Year):1-Year
- Lighting solutions service:Lighting and circuitry design
- Output Power:301 - 400W
- Output Type:Single
- Input Voltage:90VAC-132VAC/180-264VAC
- Output Current:23.2A 14.6A 13A 7.3A
- Place of Origin:CN;GUA
- Brand Name:ETOP
- Model Number:HPS-U351SXXA
- Output Frequency:47/63HZ
Multi-function 350W 18v switching power supply
1.Featurer:
· Universal AC input/Full range(90V-264V)
· Single output voltage enclosed type
· Widely used in different field.
· Provide customizing service
· Protections:Short circuit/Over load/Over voltage/ Over temp
· 3 years warranty
· Class I power(with earth pin)
· Passed CE ROHS CCC FCC test
· 100% full load burn-in test
· Use Imported machine to test,such as Chroma machine
· Lead time: 15 working days after receiving deposit
· Payment: TT,L/C,Paypal etc,
· Sample is available
· L/T of sample :7 days
2.Parameter table :
| MODEL | U351S15A | U351S24A | U351S27A | U351S48A | |||||
| OUTPUT | DC VOLTAGE | 15V | 24V | 27V | 48V | ||||
| RATED CURRENT | 23.2A | 14.6A | 13A | 7.3A | |||||
| CURRENT RANGE | 0~23.2A | 0~14.6A | 0~13A | 0~7.3A | |||||
| RATED POWER | 348W | 350.4W | 351W | 350.4W | |||||
| RIPPLE & NOISE (max.) | 150mVp-p | lSOmVp-p | 200mVp-p | 240mVp-p | |||||
| VOLTAGE ADJ. RANGE | 13.5~l8V | 20~26.4V | 26~32V | 41~56V | |||||
| VOLTAGE TOLERANCE | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |||||
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |||||
| LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | ± 0.5% | |||||
| SETUP, RISE TIME | 1000ms,50ms/230VAC 1000ms,50ms/115VAC(at full load) | ||||||||
| HOLD UP TIME (Typ.) | 20ms/230VAC 16ms/115VAC(at full load) | ||||||||
| INPUT | VOLTAGE RANGE | 90~132VAC / 180 264VAC 254~370VDC | |||||||
| FREQUENCY RANGE | 47~ 63Hz | ||||||||
| EFFICIENCY (Typ.) | 84% | 87% | 88% | 88% | |||||
| AC CURRENT (Typ.) | 7A/115VAC 4A/230VAC | ||||||||
| INRUSH CURRENT (Typ.) | 40A/115VAC 60A/230VAC | ||||||||
| LEAKAGE CURRENT | < 3.5mA/ 240VAC | ||||||||
| PROTECTION | OVERLOAD | 105 ~ 150% rated output power | |||||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 18~21V | 27.6~32.4V | 33.7~39.2V | 57.6~67.2V | |||||
| Protection type :Shut down O/P voltage, re-power on to recover | |||||||||
| OVER TEMPERATURE | 85°C±5~(3.3~7.5V); 80°CC±5°C(l2V); 75°C±5°C(l5~48V)(TSW1Detect on case) | ||||||||
| Protection type : Shut down O/P voltage, recovers automatically after temperature goes down | |||||||||
| FUNCTION | FAN ON/OFF CONTROL(Typ.) | RTH2≥50°CFAN ON,45°C FAN OF{3.3~7.5V) | |||||||
| RTH2≥55°C FAN ON,50°C FAN OF(12~48V) | |||||||||
| ENVIRONMENT | WORKING TEMP. | -10~60°C (Refer to output load derating curve) | |||||||
| WORKING HUMIDITY | 20~90% RH,non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -20~85°C , 10~95% RH | ||||||||
| TEMP. COEFFICIENT | ±0.03%/°C(0~50°C) | ||||||||
| VIBRATION | 10 ~ 500Hz, 3G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL60950-1 approved | |||||||
| WITHSTAND VOLTAGE | I/p-0/P: 3KVAC I/p-FG: 1.5KVAC 0/p-FG: 0.5KVAC | ||||||||
| ISOLATION RESISTANCE | I/P-0/P, I/P-FG, 0/P-FG: 100M Ohms / 500VDC / 25°C/ 70% RH | ||||||||
| EMC EMISSION | Compliance to EN55022(ClSPR22)ClassA | ||||||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024, light industry level, criteria A | ||||||||
| OTHERS | MTBF | ≥ 234.3K hrs. MlL-HDBK-217F(25°C) | |||||||
| DIMENSION | 199*99*50mm (L*W*H) | ||||||||

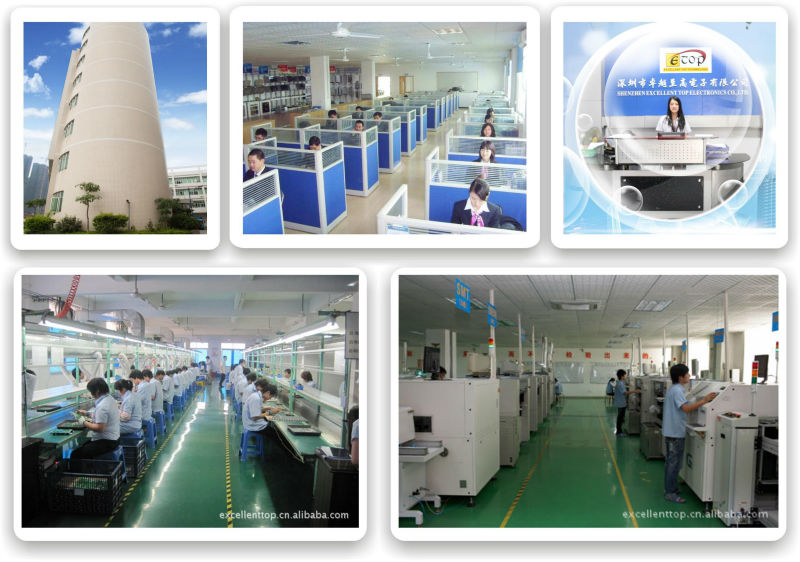

3.About Our Factory :
ETOP:It has got ISO9001 certification in 2002. And in 2004, we finished renewing the ISO9001:2000 quality management system certification. Moreover, ETOP passed the ISO14001 environmental management system
certification and GB/T28001 occupational health and safety management system certification in 2005.
4.Our Certificates:
Our products are 100% through high temperature ageing, which accords with CCC, CE, FCC,Rohs and many
other authoritative organization security authentication standard.
5.Advantage of our products and company:
(1) Provide customizing service:We are good at designing and developing various products.We can
customize all kinds of power supples you expect as long as you can provide us your detailed comments .
(2) SMT---High Efficiency & HighQuality: largely adopt SMT components because of its tight mechanism,
small volume and exquisite appearance.
(3) Punctual delivery and various delivery method:by sea or air, TNT, UPS, DHL, ARAMEX, EMS, FedeX
6. Our packaging:
with PP bag into small with box and then in to standard carton box
7.Our Team & Compay:
