- Input Voltage:220V
- Power rating:180w
- Dimenssion:199*98*50mm
- Effi:87%
- Ripple&Noise:120-480mVp-p
- Working tem.:0~+40 degree
- Warranty:2 Years
- MOQ:500
- Output Power:101 - 200W
- Output Type:Single
- Output Voltage:+12Vdc
- Place of Origin:CN;GUA
- Brand Name:ETOP
- Model Number:HPS-U181SxxL
- Input Voltage:100-240VAC
- Output Frequency:47-63Hz
- Output Current:15A
Welcome to ETOP !

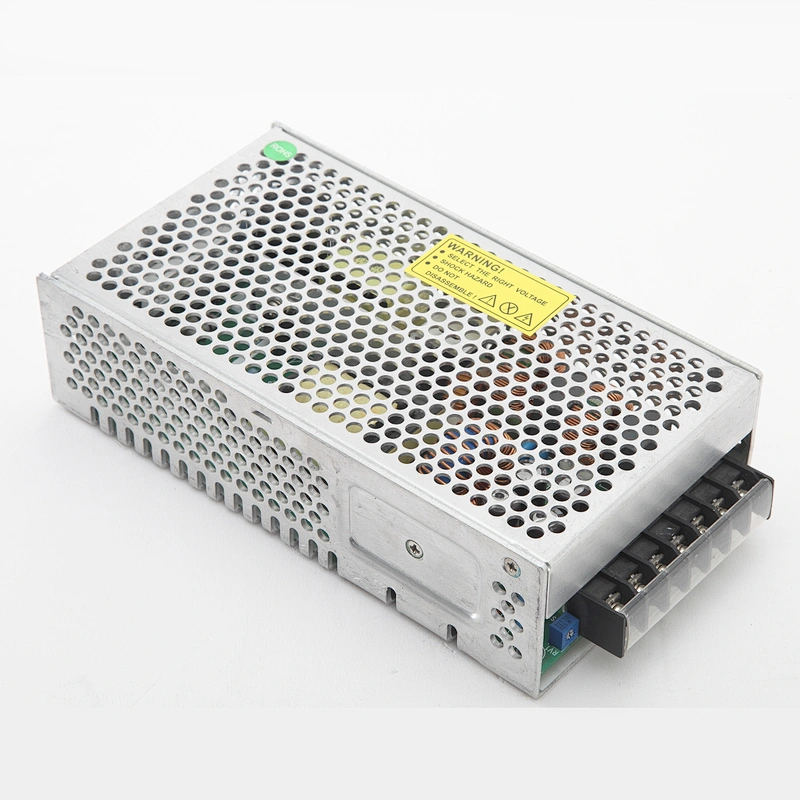

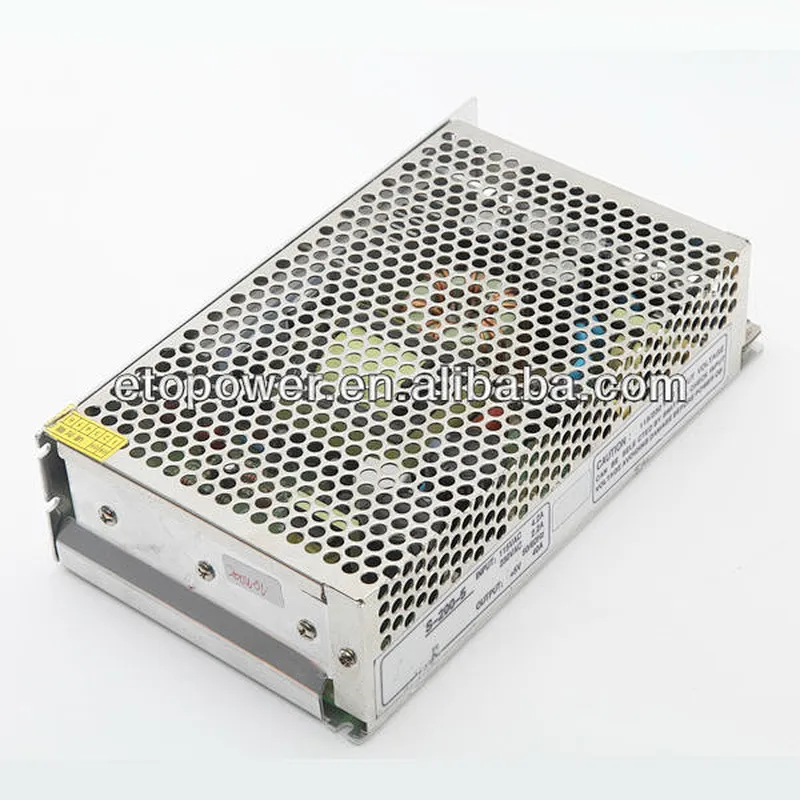

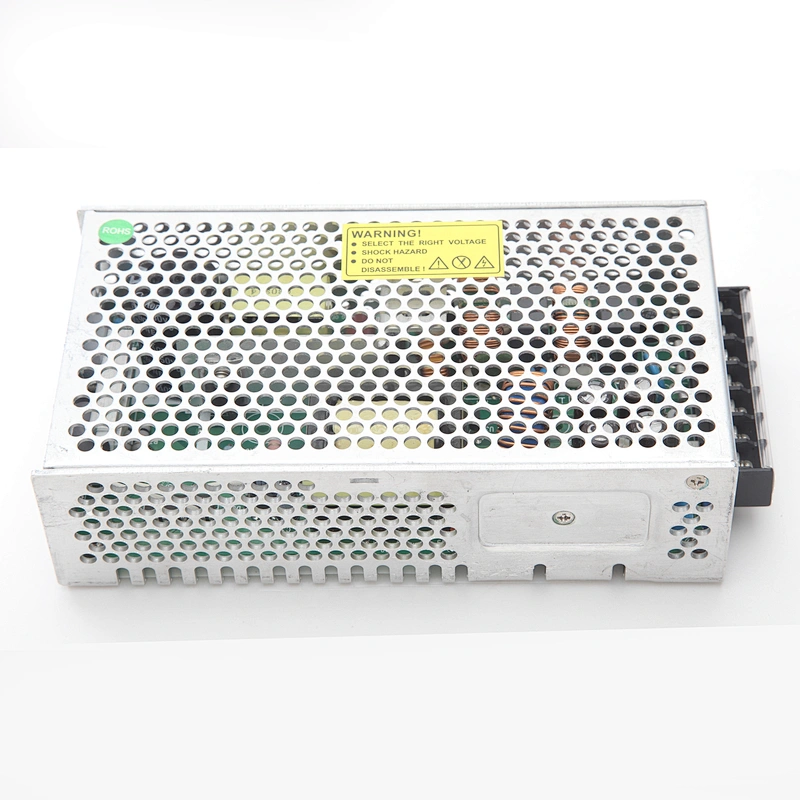

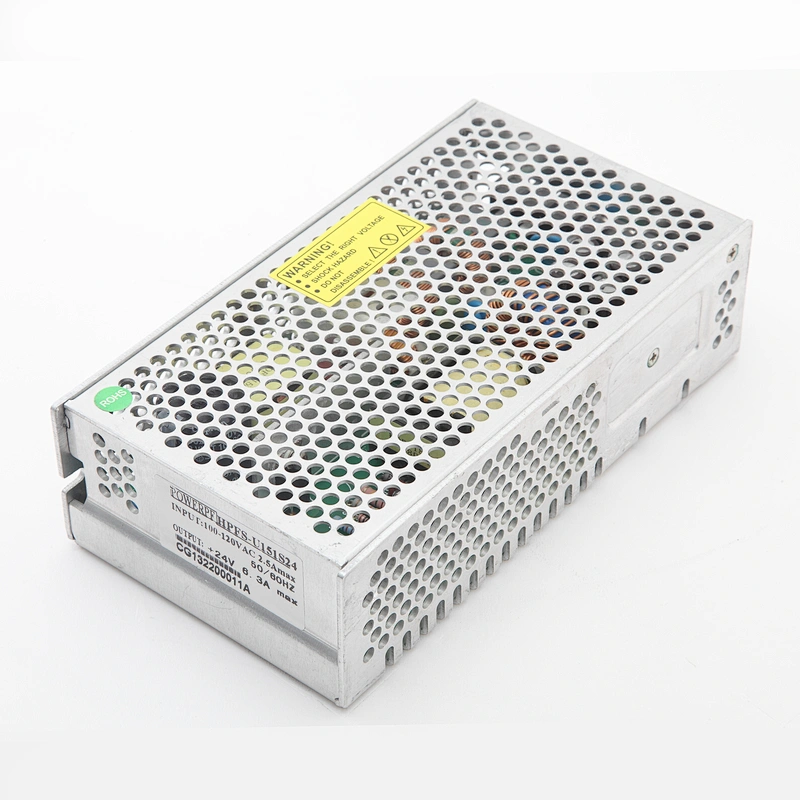

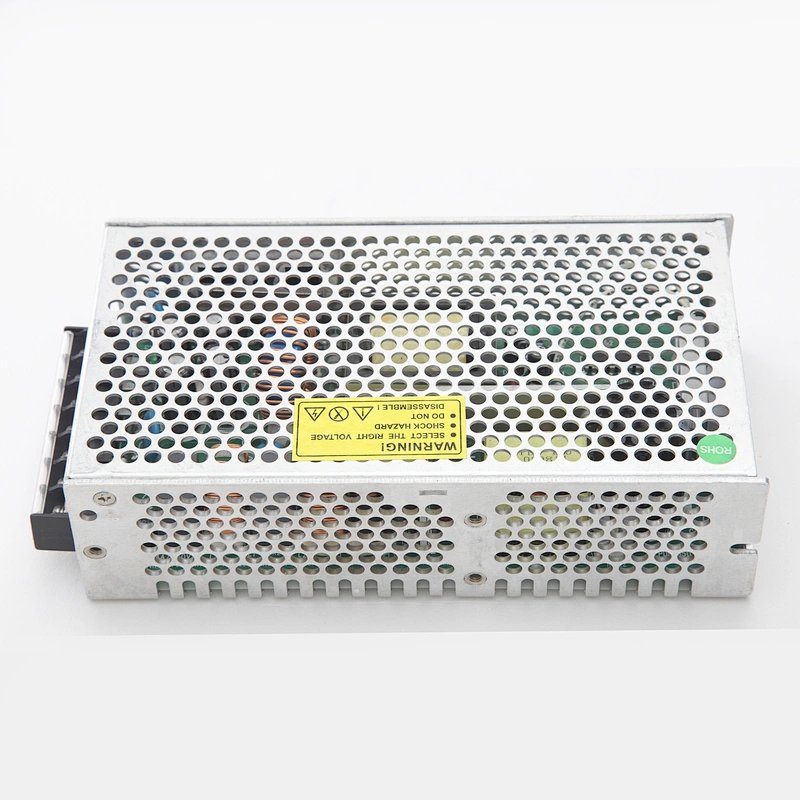

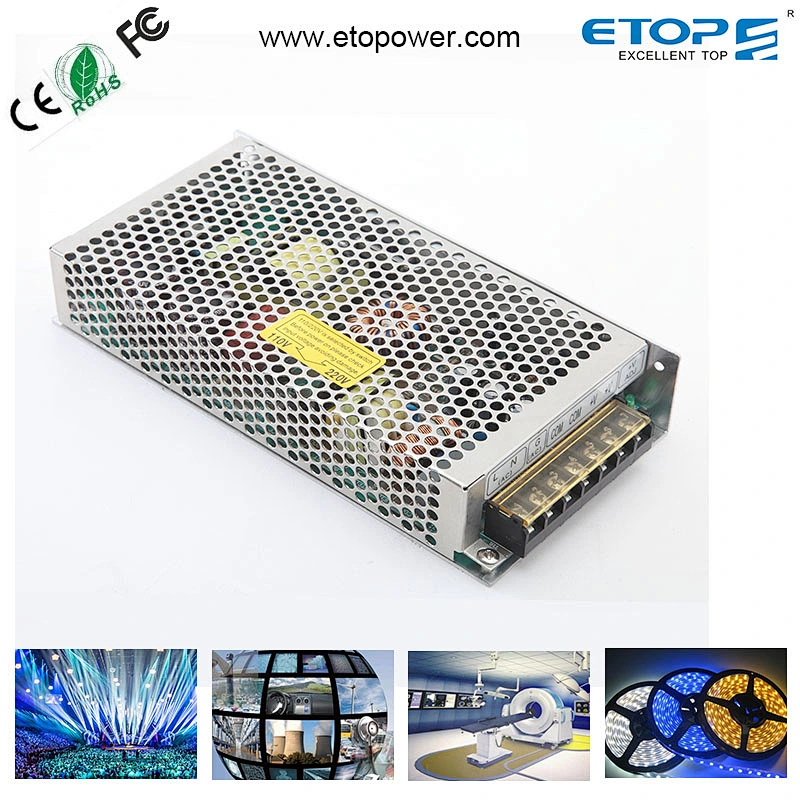

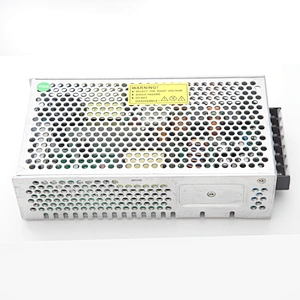

Vehicle Emergency Starting 180w Power Supply 220 12v 15a
Feature:
1.Universal AC input
2.100% full load burn-in test
3.Small size,high power density
4.Constant voltage type
5.Low cost,long life and high efficiency
6.Withstand 300VAC surge,input 5s
7.Cooling by free air
8.2 years warranty
9.All using 105c long life capacitors
10.Protection:Short circuit/Over load/over voltage
Parameter table
| Model | HPS-U181S12L | HPS-U181S24 | HPS-U181S36 | HPS-U181S48 | |
| Input | Input Voltage(V) | 90-132 or 180-264vac | |||
| Input Current (A) | 1.40A Max | ||||
| Frequency (Hz) | 47Hz–63Hz | ||||
| Efficiency | 85% Typ(230VACFull Load) | 87% | 89% | 89% | |
| Inrush current(A) | Cold star <80A/230VAC | ||||
| Leakage current(mA) | <0.75mA/240VAC | ||||
| Output | Output Voltage(V) | 12Vdc | 24Vdc | 36Vdc | 48Vdc |
| Voltage Regulation | 2% | 2% | 1% | 1% | |
| Output Current(A) | 15A | 7.5A | 5A | 3.75A | |
| Current Range (A) | 0-15A | 0-7.5A | 0-5A | 0-3.75A | |
| Rated Power(W) | 180W | 180W | 180W | 180W | |
| Start time, hold-up time(ms) | <1ms,50ms@230Vac Full Load <1S,50ms/115VAC | ||||
| Rise time(ms) | Typ:50ms @230Vac Full Load | ||||
| Ripple/Noise(mVp-p) | 150mVp-p | 150mVp-p | 240mVp-p | 240mVp-p | |
| Environment | working Temperature (°C) | 0°C - +40°C | |||
| Storage Temperature(°C) | ‘-20°C - +80°C | ||||
| Humidity(%) | 20% - 90% RH non condensing | ||||
| Safety/ EMC | Withstand voltage(VAC) | I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min | |||
| Protection | Over voltage Protection | >115%-135% Rated output voltage | |||
| Over load Protection | >105%-150% Auto recovery | ||||
| Short circuit Protection | Latched | ||||
| Over Temperature Protection | Auto reboot | ||||
Our product series include: industrial power supply, power adaptor, LED driver etc., which are widely used in communication, power electronics, automation control, railway, military industry,medical care and a good deal of others.
1.Good and High efficiency Team:our company have sales team,R&D team,purchase team,PMT team,production team and quality team etc.Our teams works hard together with highefficiency,and our teams have the same target--Excellent quality,the highest service !
2.OEM&ODM Services: Our company have professional engineers,so we cancustomize products ccording to your detailed requirements,your samples or your ideas.
3.High efficiency automatic SMT machine and production process:it is fast,high-efficient and standard.Professional surface-mounting and trough-hole soldering technology.-our production process must through below steps to guarantee good quality Inspecting Raw Materials-Auto machine to SMT--Plug-in module--Pass wave-soldering (Auto solder)--Angle cutter cutting angles--Post-solder &Assembling--QC Inspection--FQC Testing Products--Ageing --Quality department spot-check goods--Packing--Shipping out.
Certificate
Almost all of our products get CE/CCC/ROHS/FCC etc certificates,and if you have Special requirements of certificates,we can help to apply it for you.And our company pass ISO9001and ISO14001.
